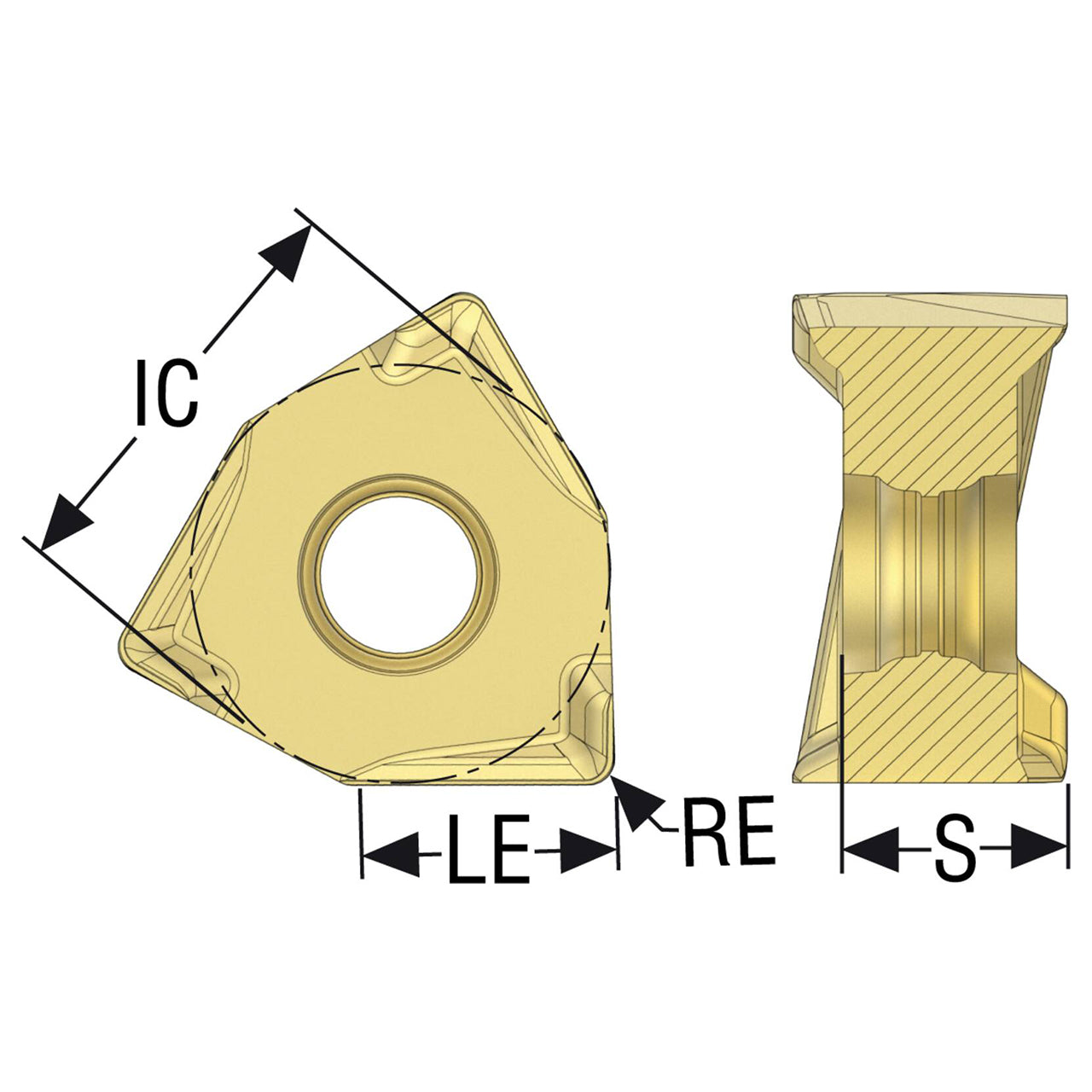

Product Specifications
| Manufacturer Part Number | 03058369 |
| Fixing Hole Diameter (Decimal Inch) | 0.181" |
| Fixing Hole Diameter (mm) | 4.60mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.491" |
| Inscribed Circle Diameter (mm) | 12.48mm |
| Wiper Edge Length (Decimal Inch) | 0.051" |
| Wiper Edge Length (mm) | 1.30mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.295" |
| Cutting Edge Effective Length (mm) | 7.50mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.254" |
| Insert Thickness (mm) | 6.45mm |
| Cutting Edge Count | 6 |
| Cutting Geometry Type Technical | M13 |
| Pocket Seat Code of The Cutter | XN.X0806 |
| Insert Size And Shape | XNEX0806.L |
| Insert Included Angle (Degree) | 88.28 Degree |
| Insert Rake Angle (Degree) | 22 Degree |
| Insert Hand | Left Hand |
| Material | Carbide |

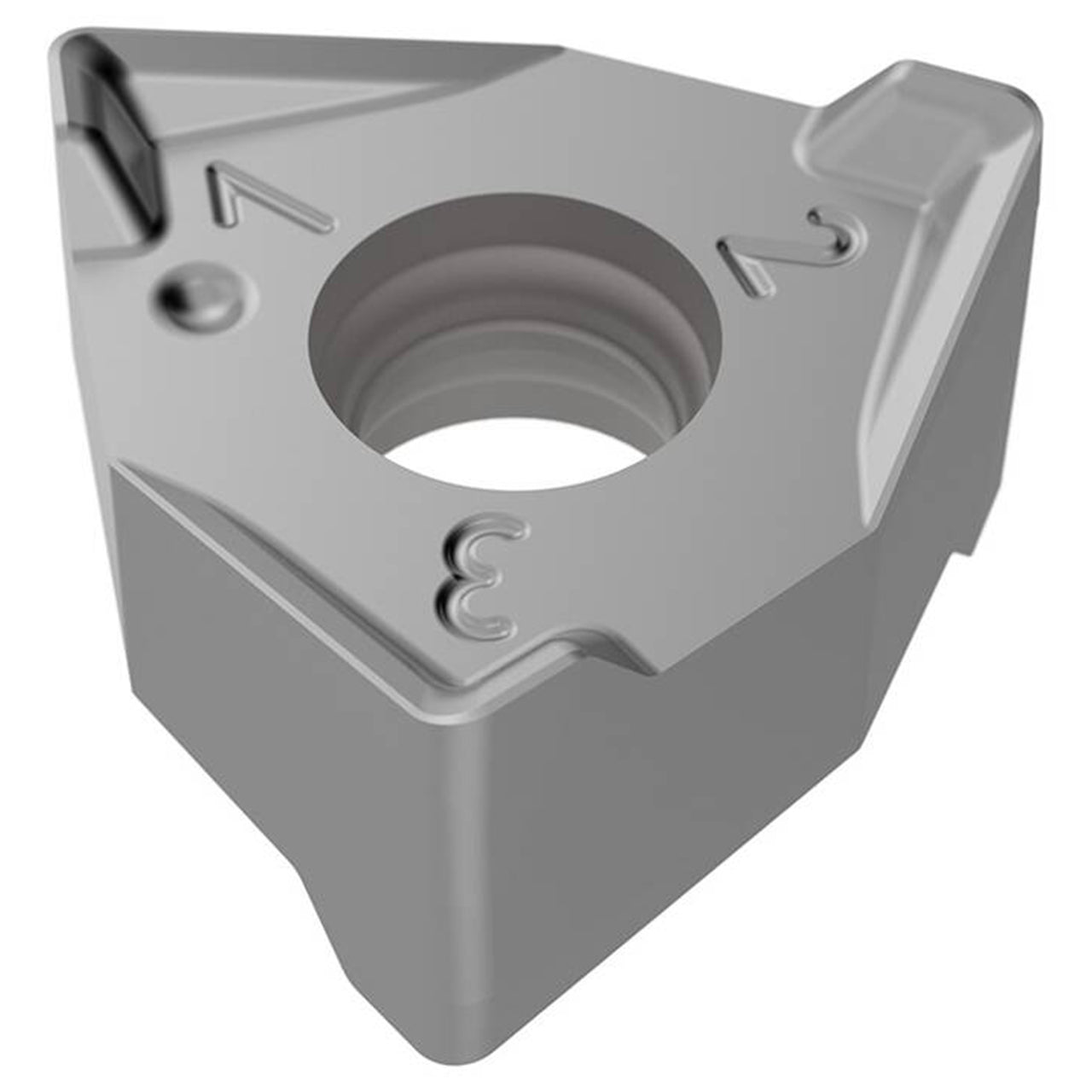

| Product Type | Plunge Milling Insert |
