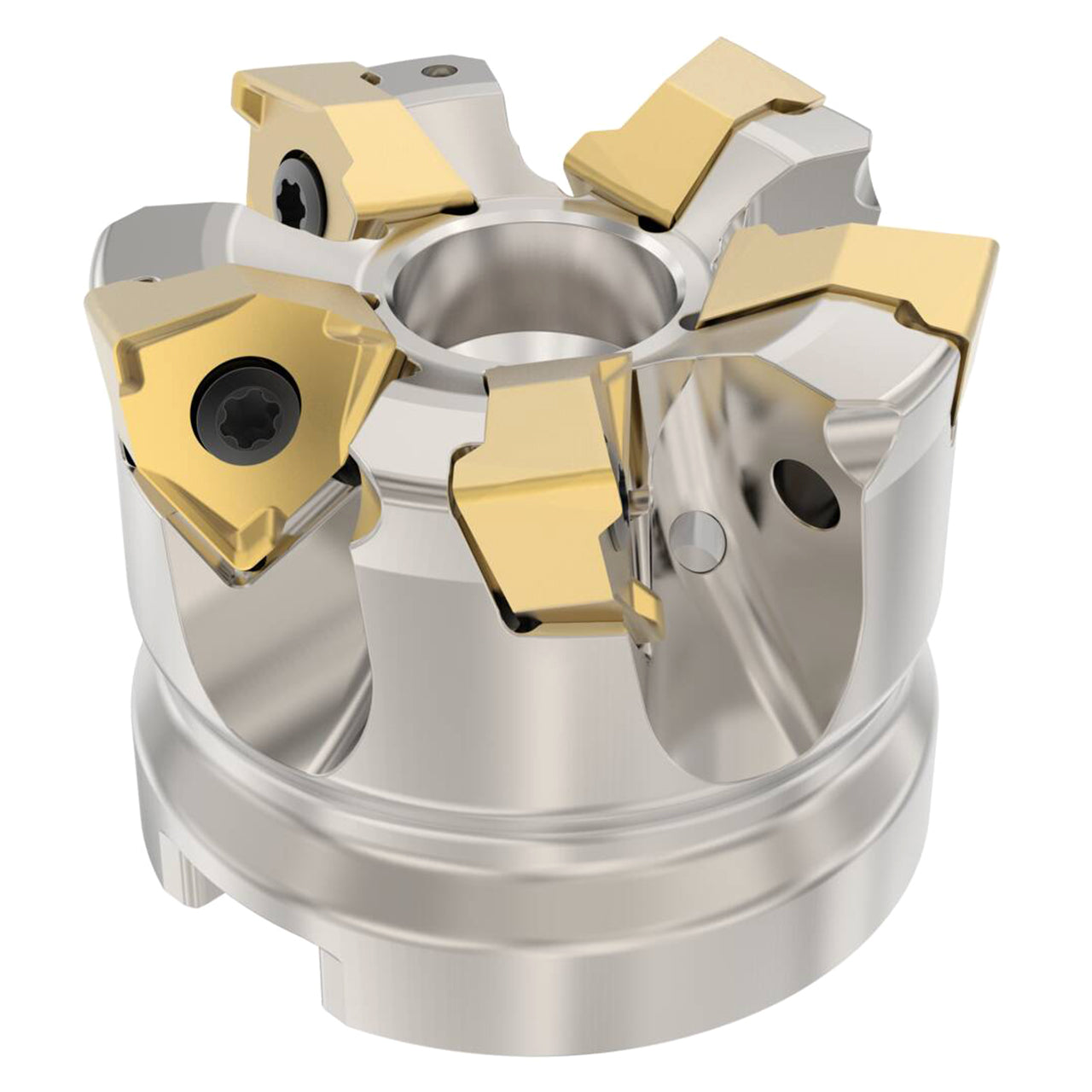

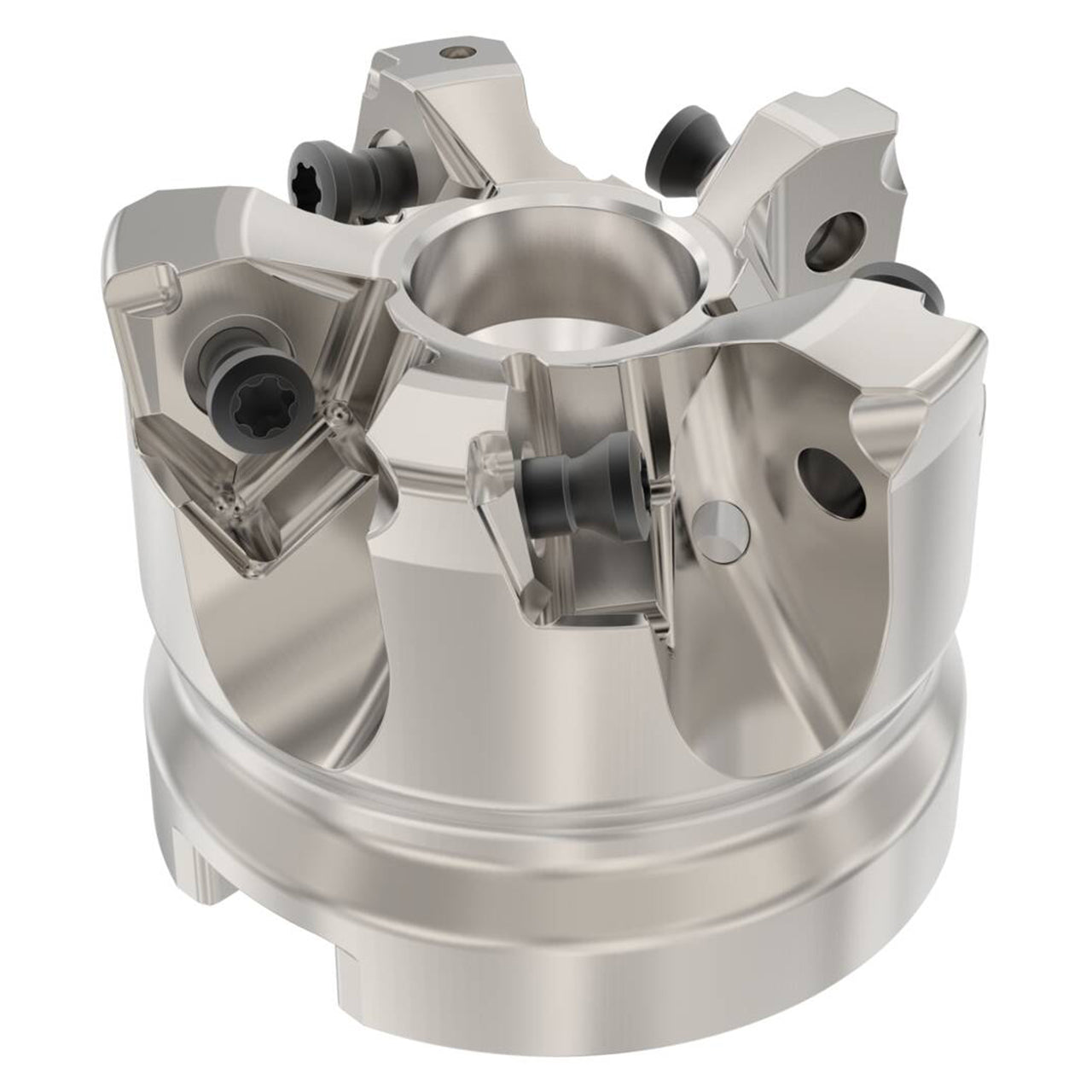

Product Specifications
| Manufacturer Part Number | 03058316 |
| Cutting Diameter (mm) | 50.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 48.00mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 6.96mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Rake Radial Angle (Degree) | -12 Degree |
| Rake Radial Angle (Degree) | -12 Degree |
| Axial Rake Angle (Degree) | -11 Degree |
| Tool Cutting Edge Angle (Degree) | 86.88 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 87 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 92 Degree |
| Maximum Rotational Speed (rpm) | 10600 rpm |
| Shank Type | Arbor |
| Product Type | Plunge Mill |
