Product Specifications
| Manufacturer Part Number | 03042118 |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.551" |
| Contact Surface Diameter Workpiece Side (mm) | 14.00mm |
| Functional Length (Decimal Inch) | 3.091" |
| Functional Length (mm) | 78.50mm |
| Protruding Length (Decimal Inch) | 4.154" |
| Protruding Length (mm) | 105.50mm |
| Overall Length (Decimal Inch) | 6.043" |
| Overall Length (mm) | 153.50mm |
| Maximum Rotational Speed (rpm) | 30000 rpm |
| Coolant Supply Property | 1 |
| Shank Type | Cylindrical |

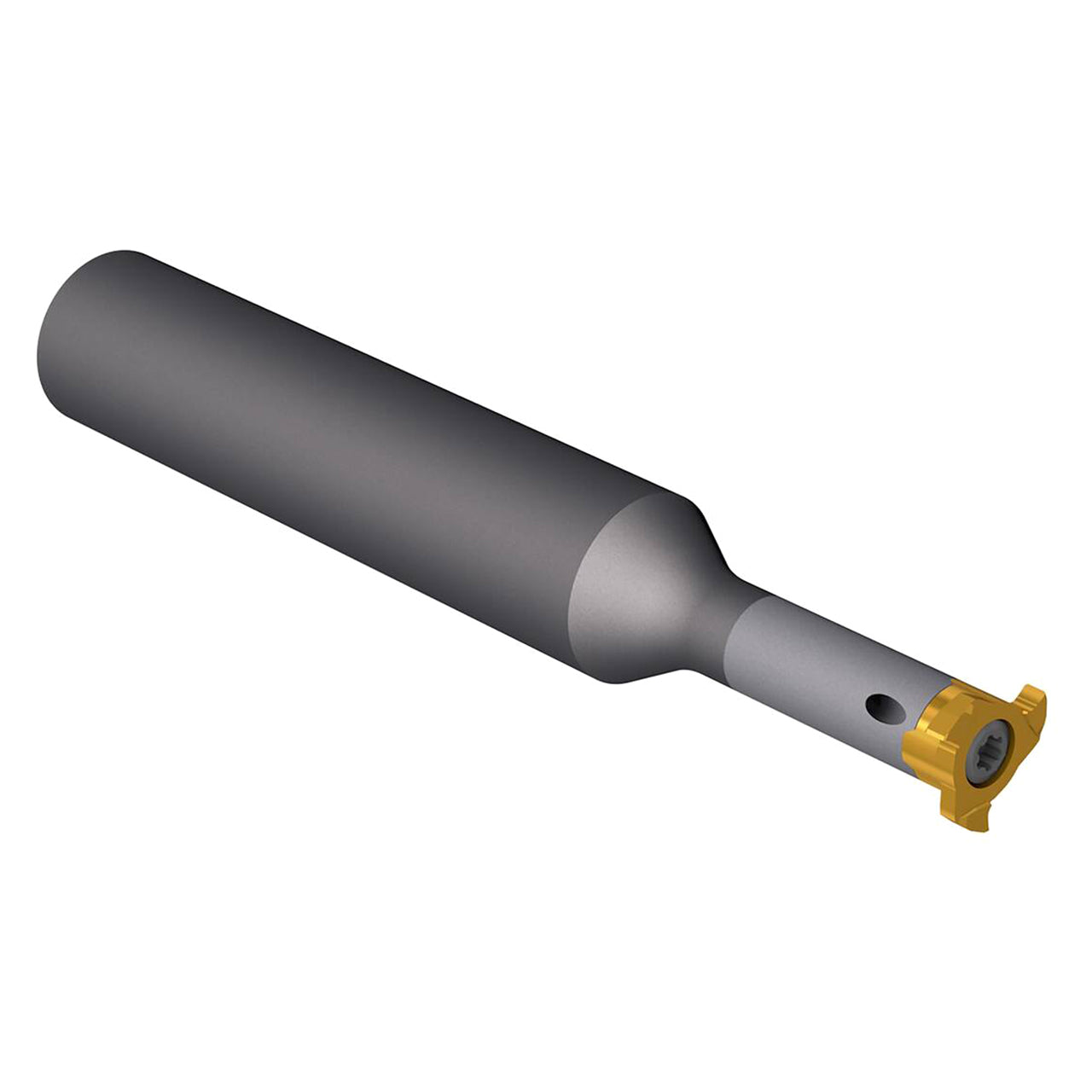

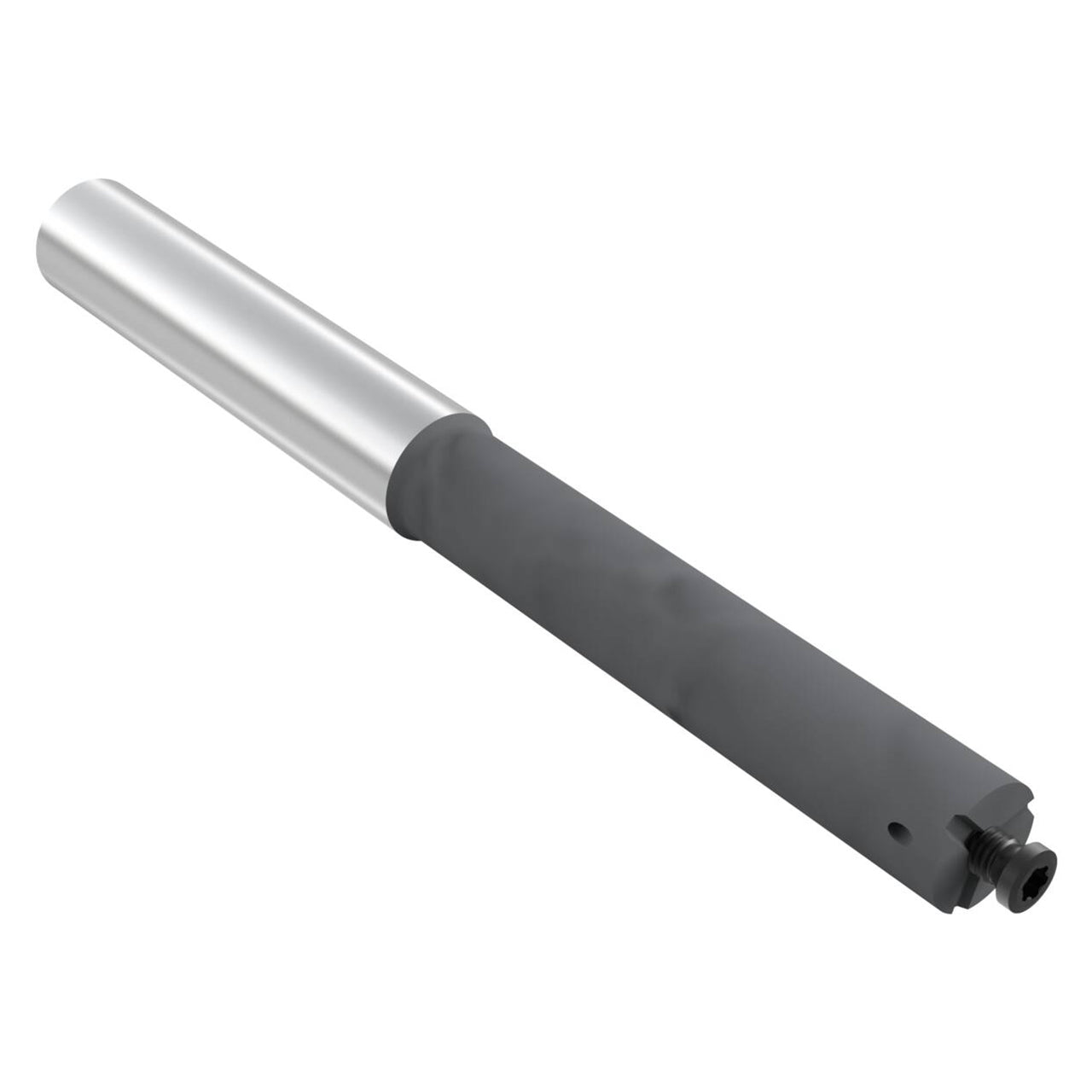

| Product Type | Replaceable Tip Milling Shank |
