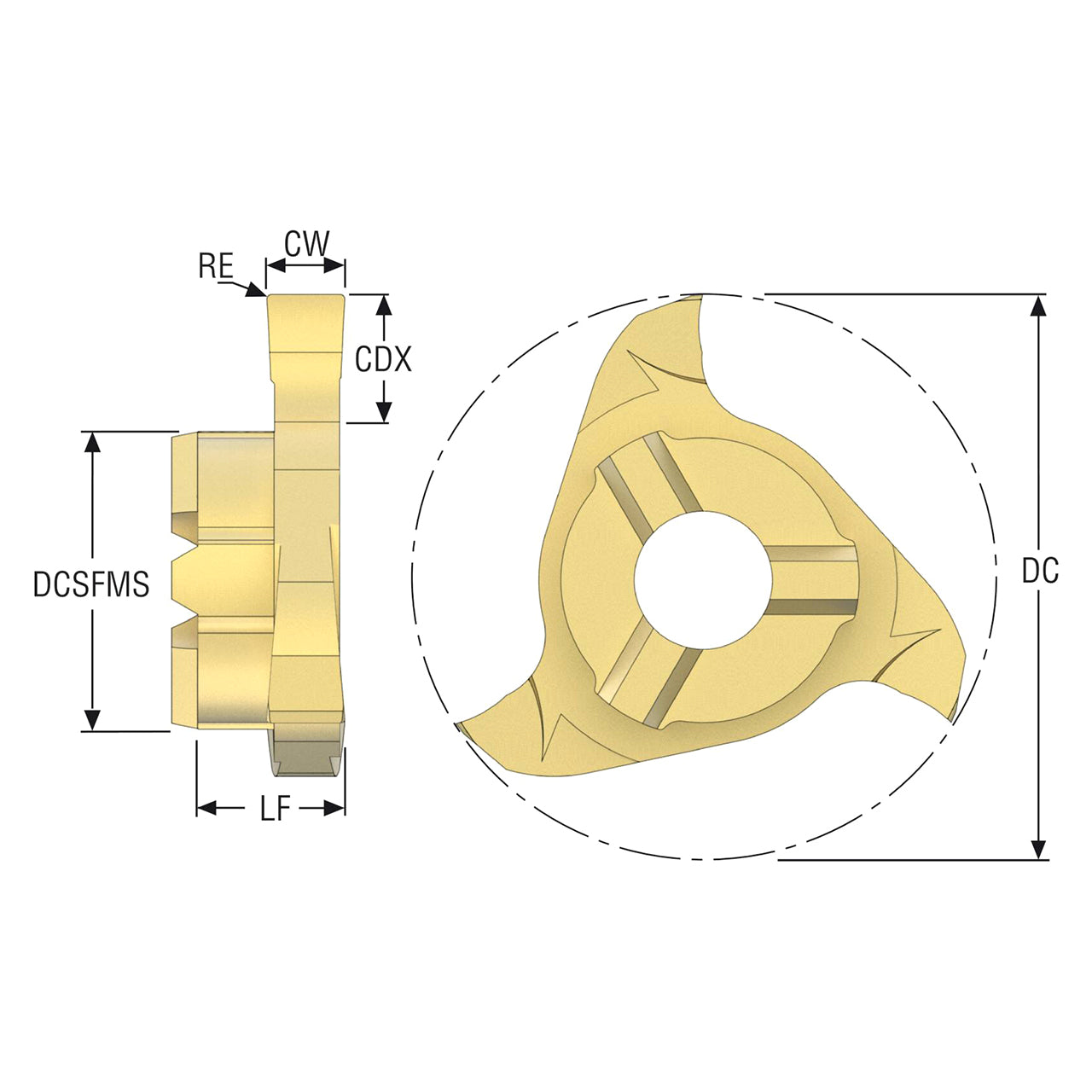

Product Specifications
| Manufacturer Part Number | 03041950 |
| Cutting Diameter (Decimal Inch) | 0.697" |
| Cutting Diameter (mm) | 17.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.354" |
| Contact Surface Diameter Machine Side (mm) | 9.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.138" |
| Maximum Cutting Depth (mm) | 3.50mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.138" |
| Maximum Cutting Depth Insert (mm) | 3.50mm |
| Cutting Width (Decimal Inch) | 0.048" |
| Cutting Width (mm) | 1.21mm |
| Functional Length (Decimal Inch) | 0.226" |
| Functional Length (mm) | 5.75mm |
| Cutting Edge Count | 1 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Peripheral Effective Cutting Edge Count | 3 |
| Peripheral Edges In The Tool | 3 |

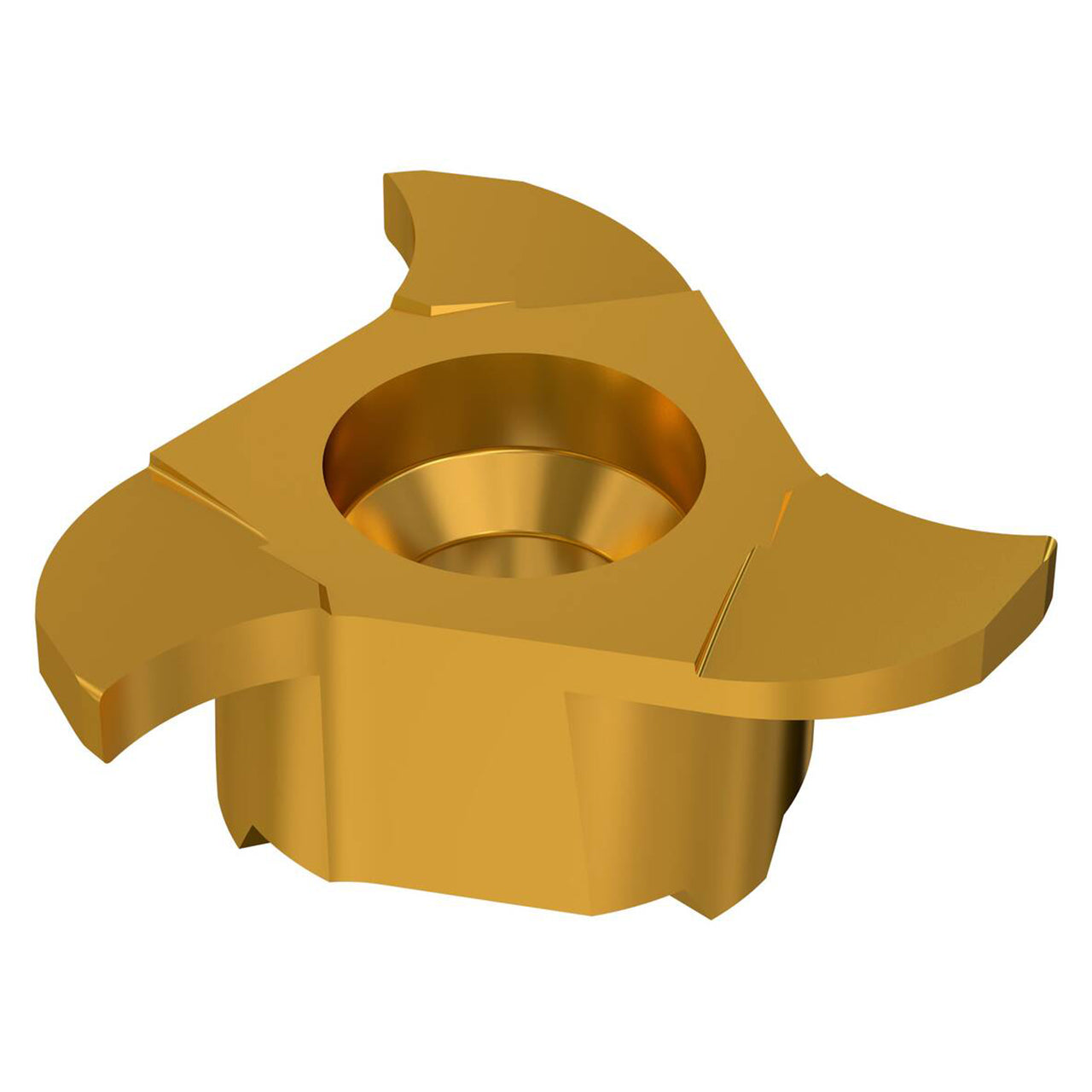

| Product Type | T-Slot Milling Tip Insert |
