Product Specifications

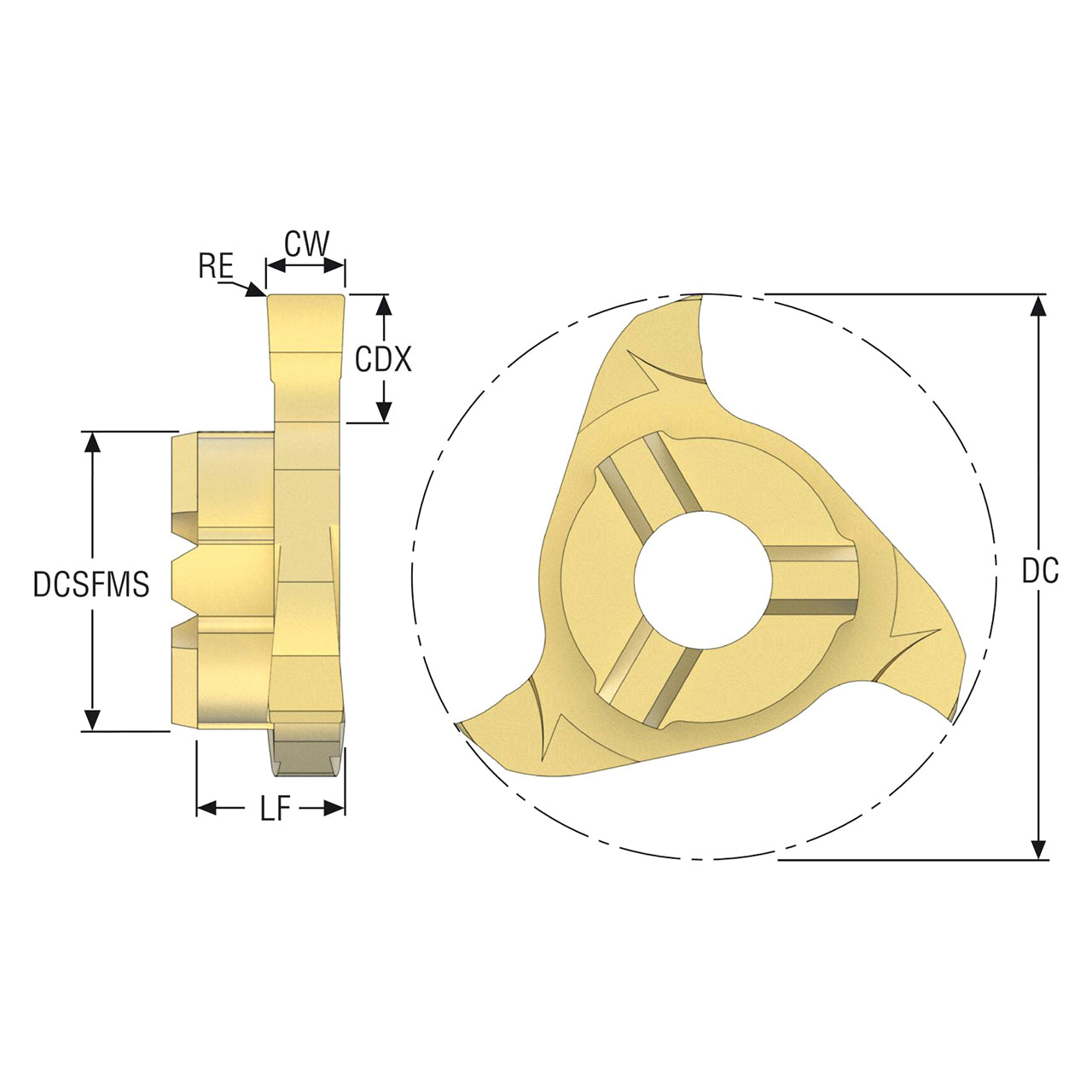

| Manufacturer Part Number | 03041915 |
| Cutting Diameter (Decimal Inch) | 0.382" |
| Cutting Diameter (mm) | 9.70mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.236" |
| Contact Surface Diameter Machine Side (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 0.138" |
| Functional Length (mm) | 3.50mm |
| Cutting Width (Decimal Inch) | 0.098" |
| Cutting Width (mm) | 2.50mm |
| Maximum Cutting Depth (Decimal Inch) | 0.059" |
| Maximum Cutting Depth (mm) | 1.50mm |
| Maximum Cutting Depth Insert (Decimal Inch) | 0.059" |
| Maximum Cutting Depth Insert (mm) | 1.50mm |
| Corner Radius (Decimal Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M01 |
| Material | Carbide |

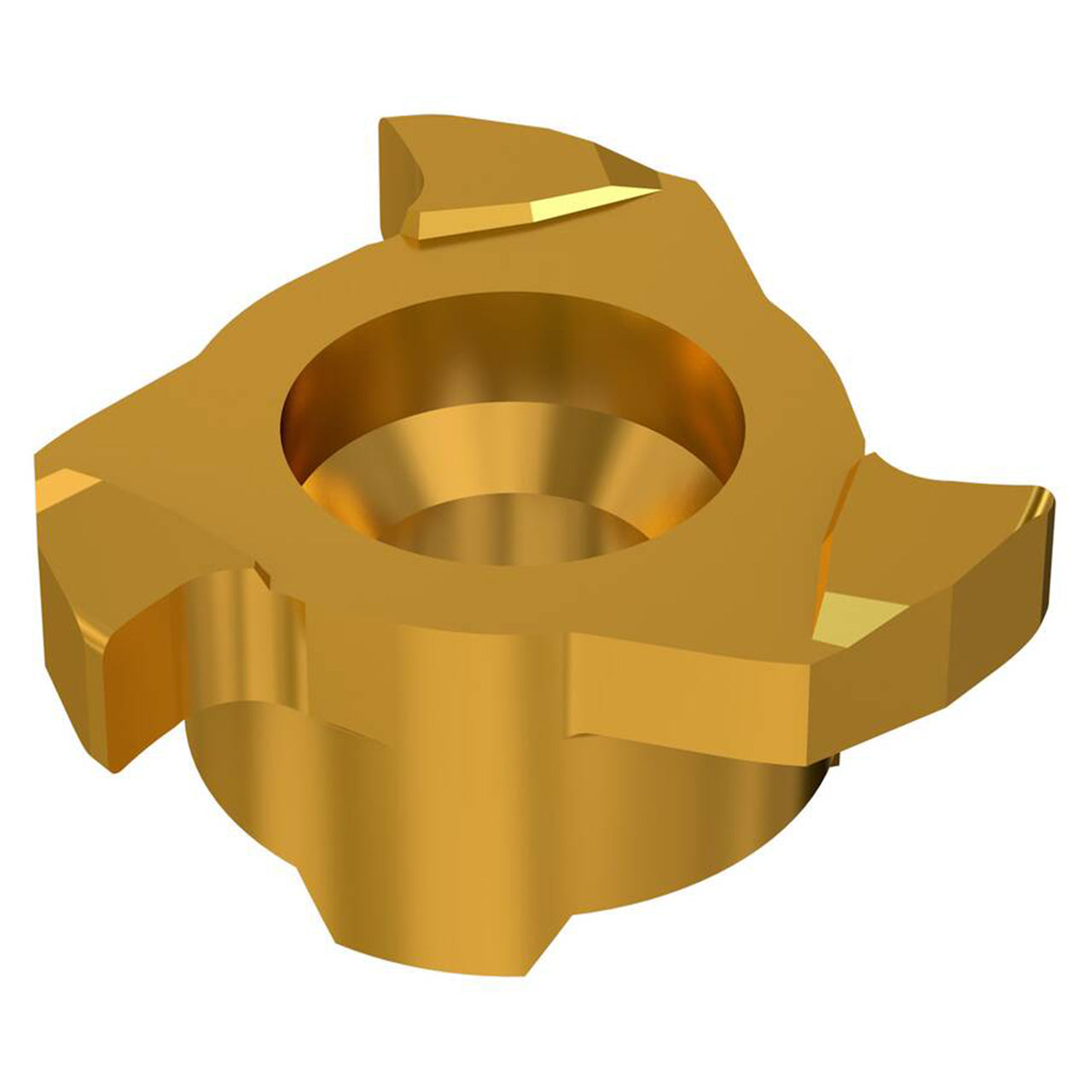

| Product Type | T-Slot Milling Tip Insert |
