Product Specifications
| Manufacturer Part Number | 03029532 |
| Body Diameter (Decimal Inch) | 1.575" |
| Body Diameter (mm) | 40.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 3.937" |
| Connection Diameter Machine Side (mm) | 100.00mm |
| Shank Diameter (Decimal Inch) | 3.937" |
| Shank Diameter (mm) | 100.00mm |
| Body Length (Decimal Inch) | 13.347" |
| Body Length (mm) | 339.00mm |
| Body Length 1 (Decimal Inch) | 13.347" |
| Body Length 1 (mm) | 339.00mm |
| Body Length 2 (Decimal Inch) | 13.110" |
| Body Length 2 (mm) | 333.00mm |
| Functional Length (Decimal Inch) | 14.488" |
| Functional Length (mm) | 368.00mm |
| Shank Length (Decimal Inch) | 1.969" |
| Shank Length (mm) | 50.00mm |
| Overall Length (Decimal Inch) | 16.709" |
| Overall Length (mm) | 424.40mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 5000 rpm |

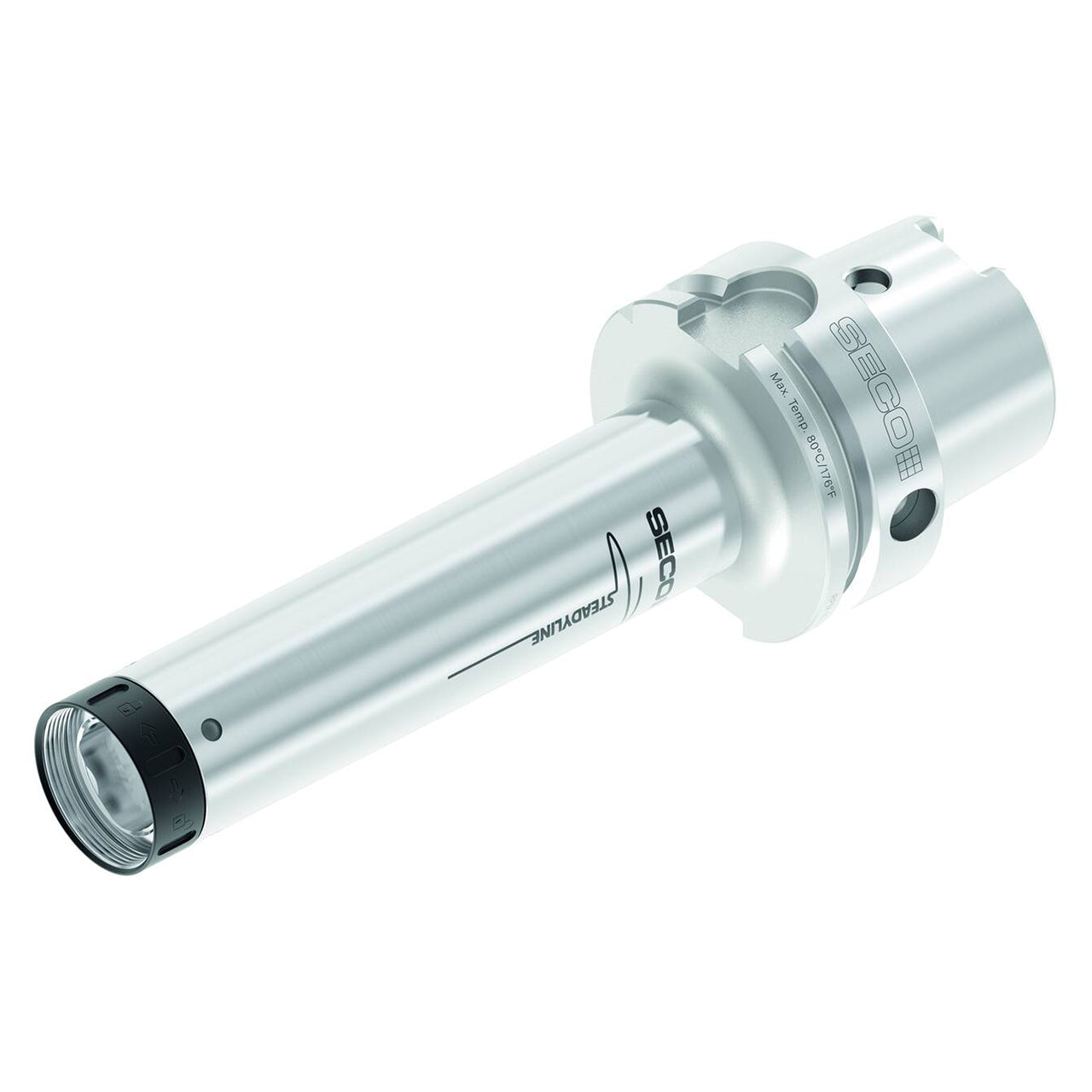

| Product Type | Collet Chuck Extension Adapter |
