Product Specifications
| Manufacturer Part Number | 03024047 |
| Cutting Diameter (mm) | 28.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Maximum Cutting Diameter (mm) | 40.00mm |
| Shank Diameter (mm) | 32.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 78.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 68.00mm |
| Functional Length (mm) | 79.00mm |
| Protruding Length (mm) | 55.00mm |
| Shank Length (mm) | 60.00mm |
| Overall Length (mm) | 115.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -2 Degree |
| Rake Radial Angle (Degree) | -2 Degree |
| Rake Orthogonal Angle (Degree) | -2 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 8 Degree |
| Maximum Rotational Speed (rpm) | 14000 rpm |
| Insert Shape Code | R |
| Shank Type | Weldon |

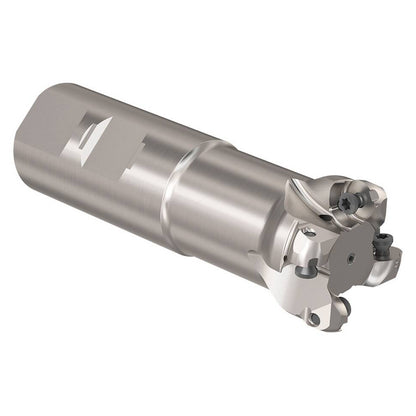

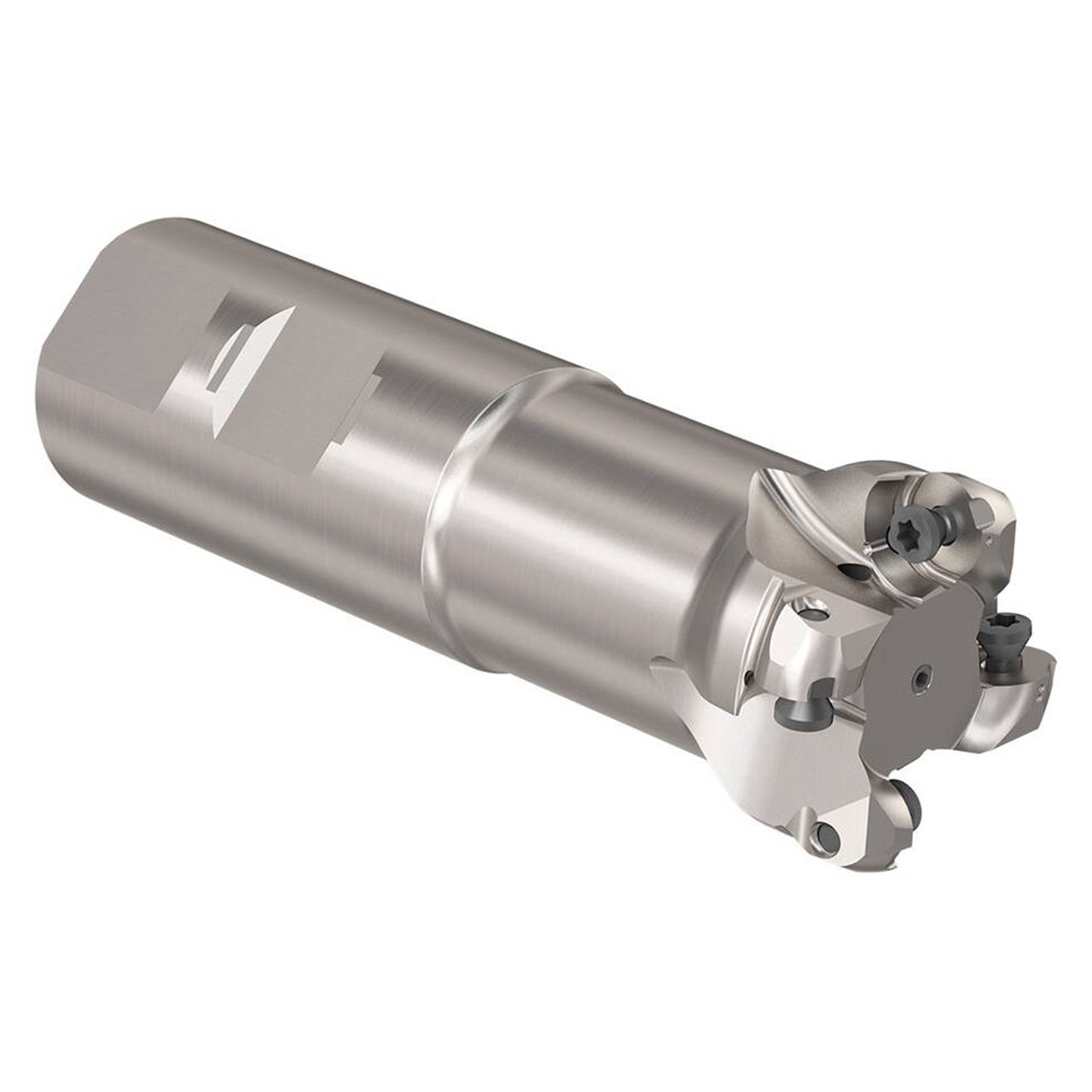

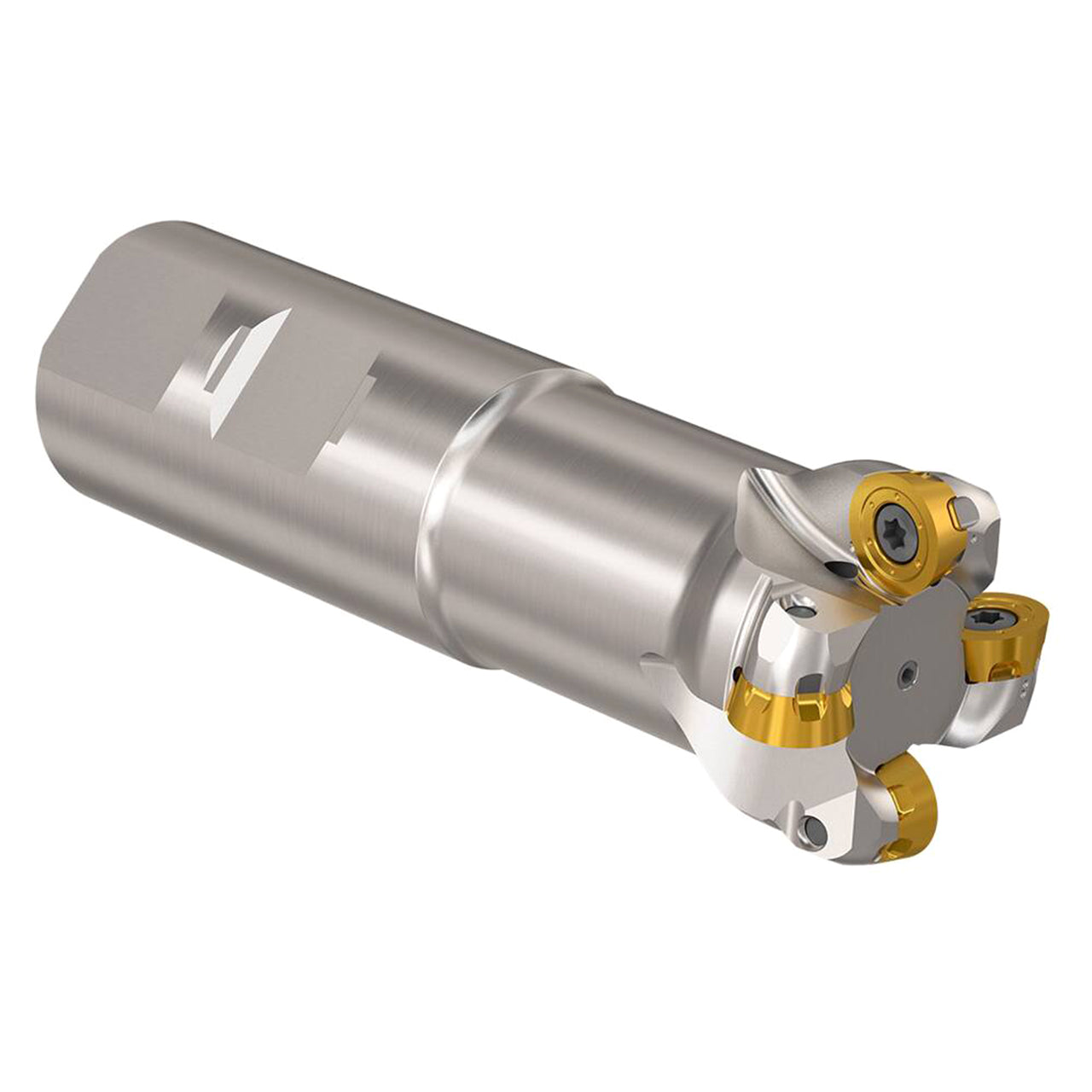

| Product Type | Indexable Copy End Mill |
