Product Specifications
| Manufacturer Part Number | 03023701 |
| Cutting edge count | 3 |
| Grade Type | PCBN |

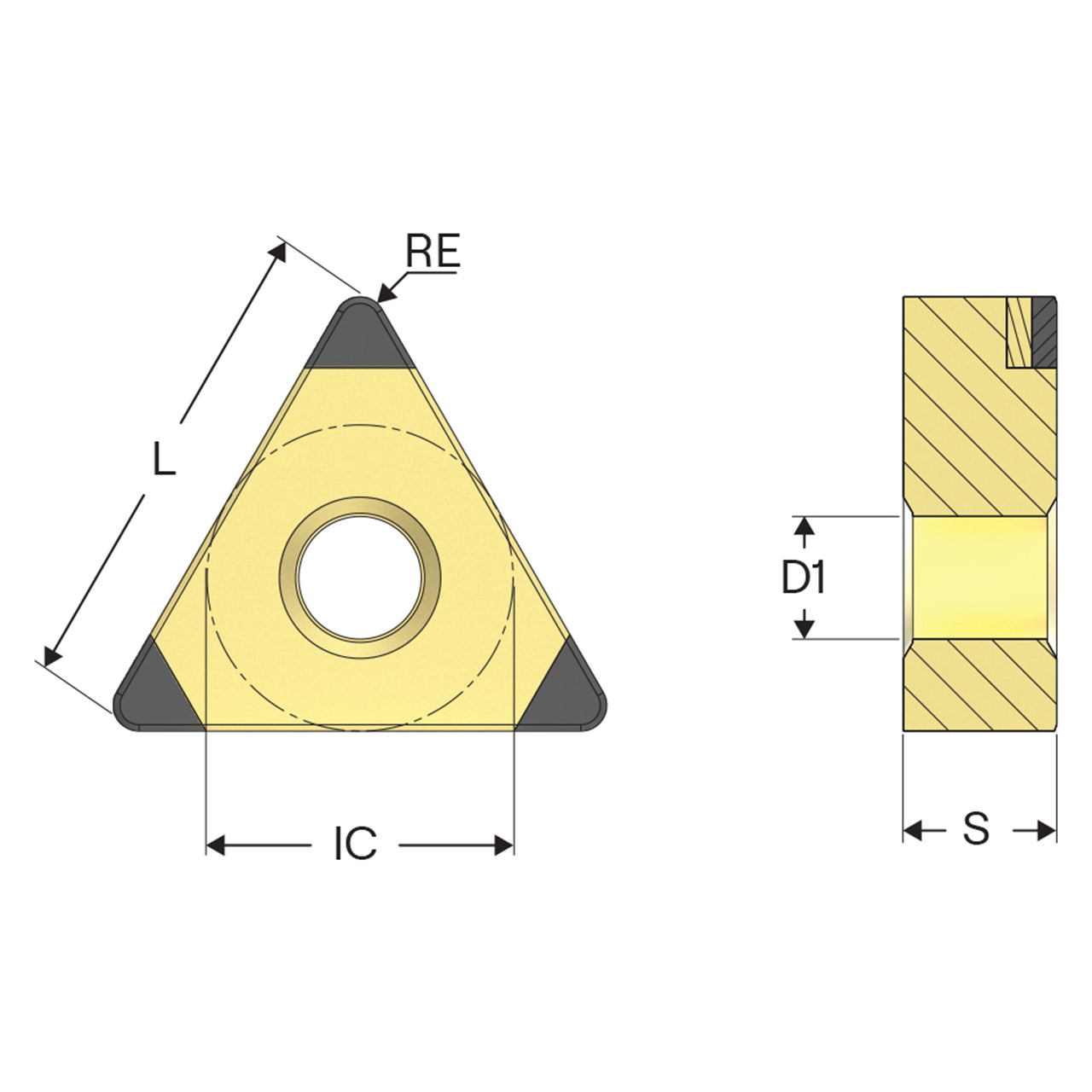

| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Cutting Edge Effective Length (Decimal Inch) | 0.091" |
| Corner Radius (Decimal Inch) | 0.063" |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert seat size code | 16 |
| Product Series | TNGA |

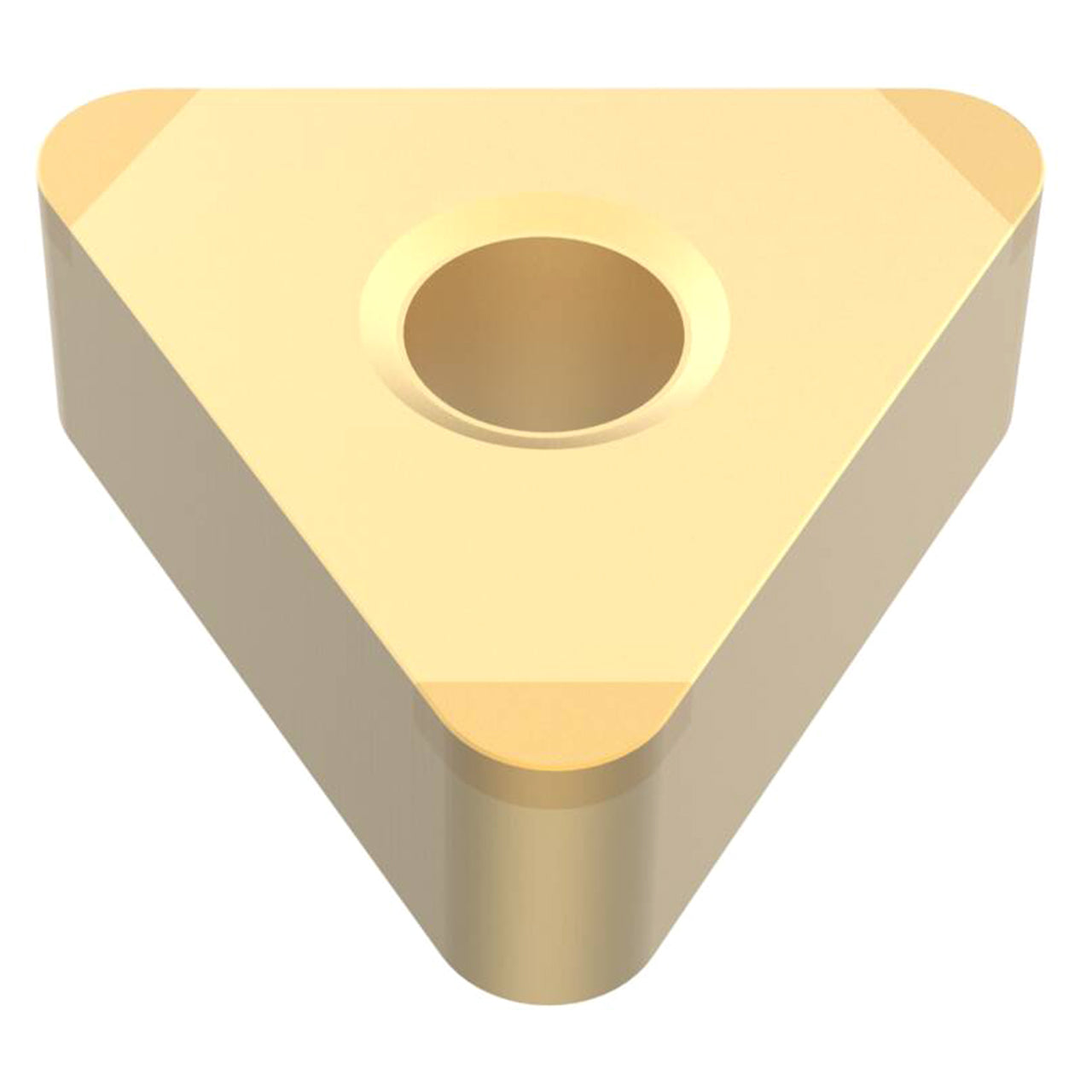

| Product Type | Turning Insert |
