Product Specifications
| Manufacturer Part Number | 03006943 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.404" |
| Minimum Cutting Diameter Internal (mm) | 35.65mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Functional Length (Decimal Inch) | 10.000" |
| Functional Length (mm) | 254.00mm |
| Head Length (Decimal Inch) | 1.654" |
| Head Length (mm) | 42.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.200" |
| Height of Tool Holder Shank (mm) | 30.48mm |
| Shank Type | Cylindrical |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |

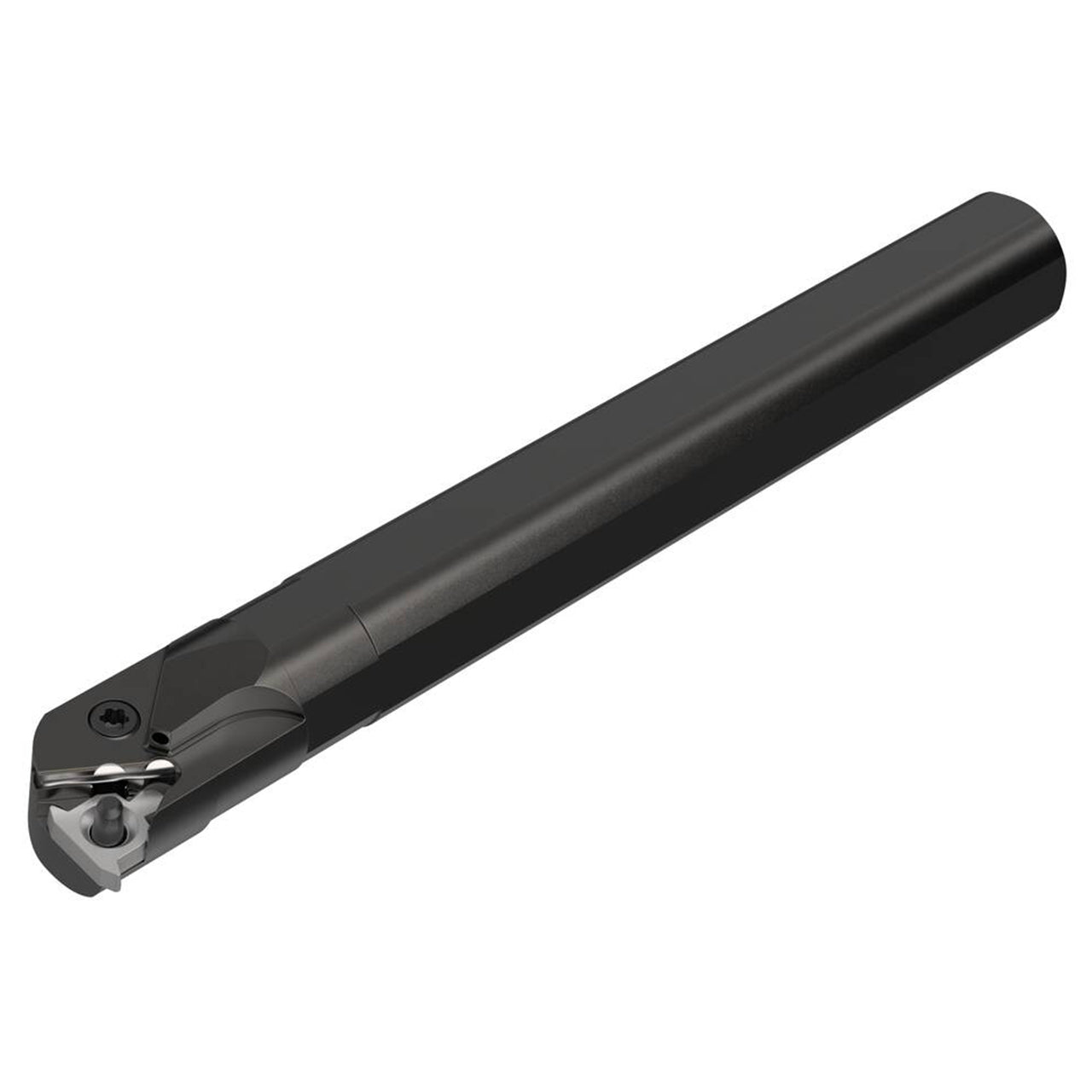

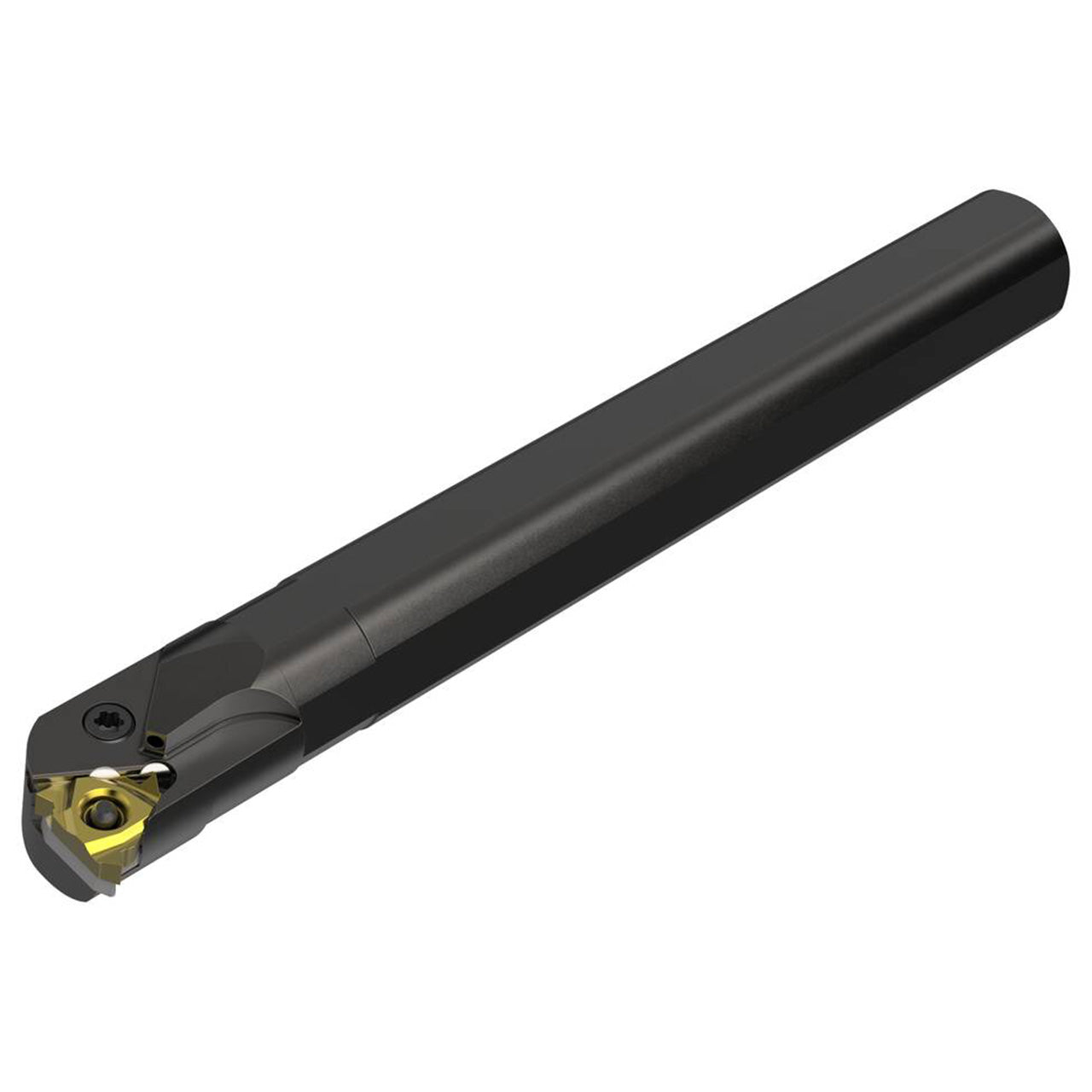

| Product Type | Indexable Threading Toolholder |
