Product Specifications
| Manufacturer Part Number | 03003407 |
| Cutting Diameter (mm) | 5.00mm |
| Cutting Diameter 1 (mm) | 5.00mm |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Maximum Cutting Diameter (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Neck Diameter (mm) | 8.80mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 18.32mm |
| Cutting Edge Effective Length (mm) | 0.45mm |
| Neck Length (mm) | 70.00mm |
| Neck Length 1 (mm) | 70.00mm |
| Minimum Clamping Length (mm) | 40.00mm |
| Length Variant Cataloque | 4 |
| Theoretical Cutting Edge Length (mm) | 7.50mm |
| Overall Length (mm) | 110.00mm |
| Number of Flute | 5 |
| Pheripheral Cutting Edge Count | 5 |
| Maximum Depth of Cut (mm) | 1.17mm |
| Curved Cutting Edge Radius (mm) | 4.84mm |
| Corner Radius (mm) | 0.80mm |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (mm) | 1.18mm |
| Cutting Edge Count | 5 |
| Face Cutting Edge Count | 5 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Straight |
| Cutting Geometry Type | JHF980 |
| Cutting Geometry Type Technical | JHF980 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | MEGA |

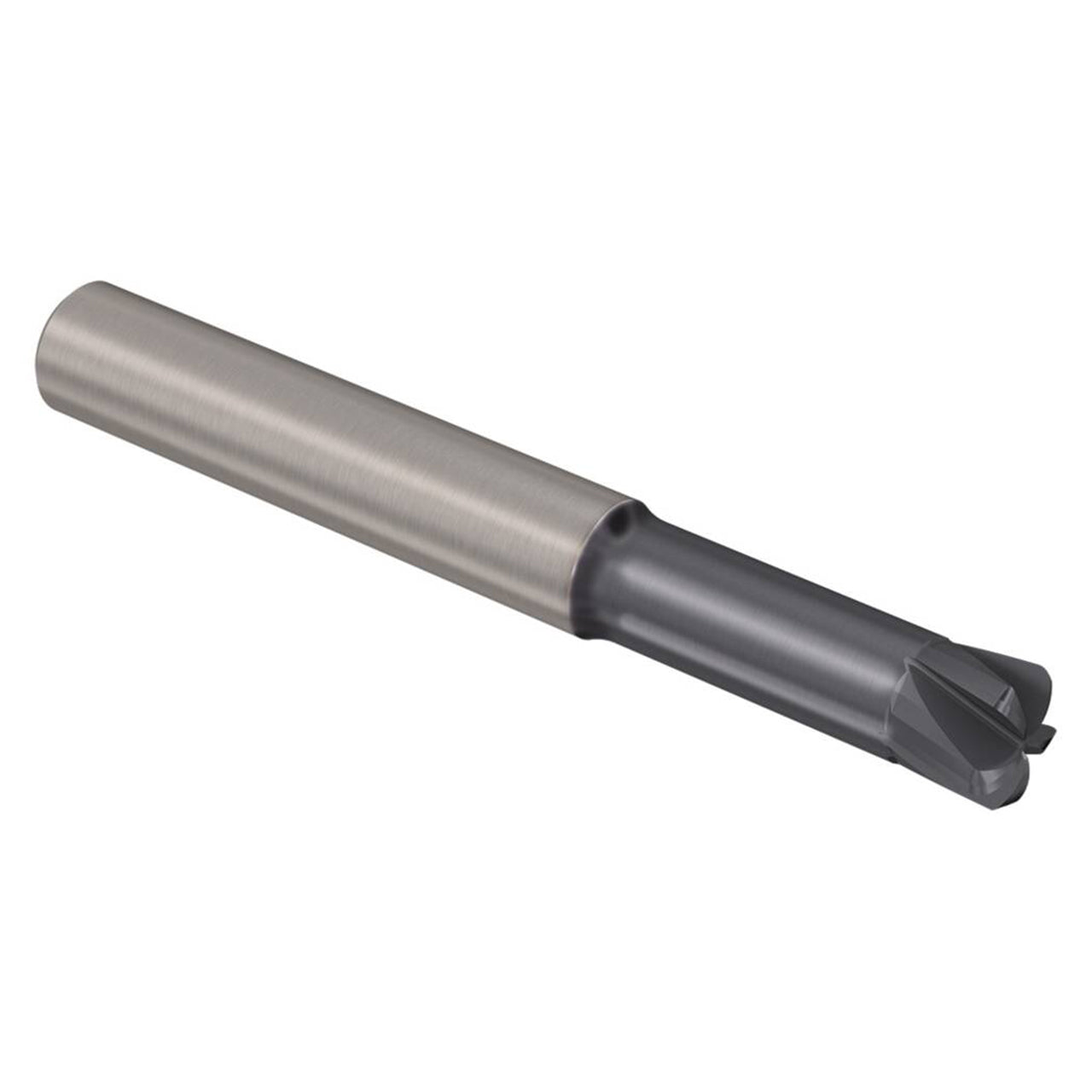

| Product Type | Corner Radius End Mill |
