Product Specifications
| Manufacturer Part Number | 03002833 |
| Minimum Cutting Diameter (mm) | 9.90mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 14.50mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Body Diameter (mm) | 18.00mm |
| Body Length (mm) | 110.00mm |
| Shank Length (mm) | 48.00mm |
| Overall Length (mm) | 117.00mm |
| Connection Code Workpiece Side | PMX..T-AD |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |

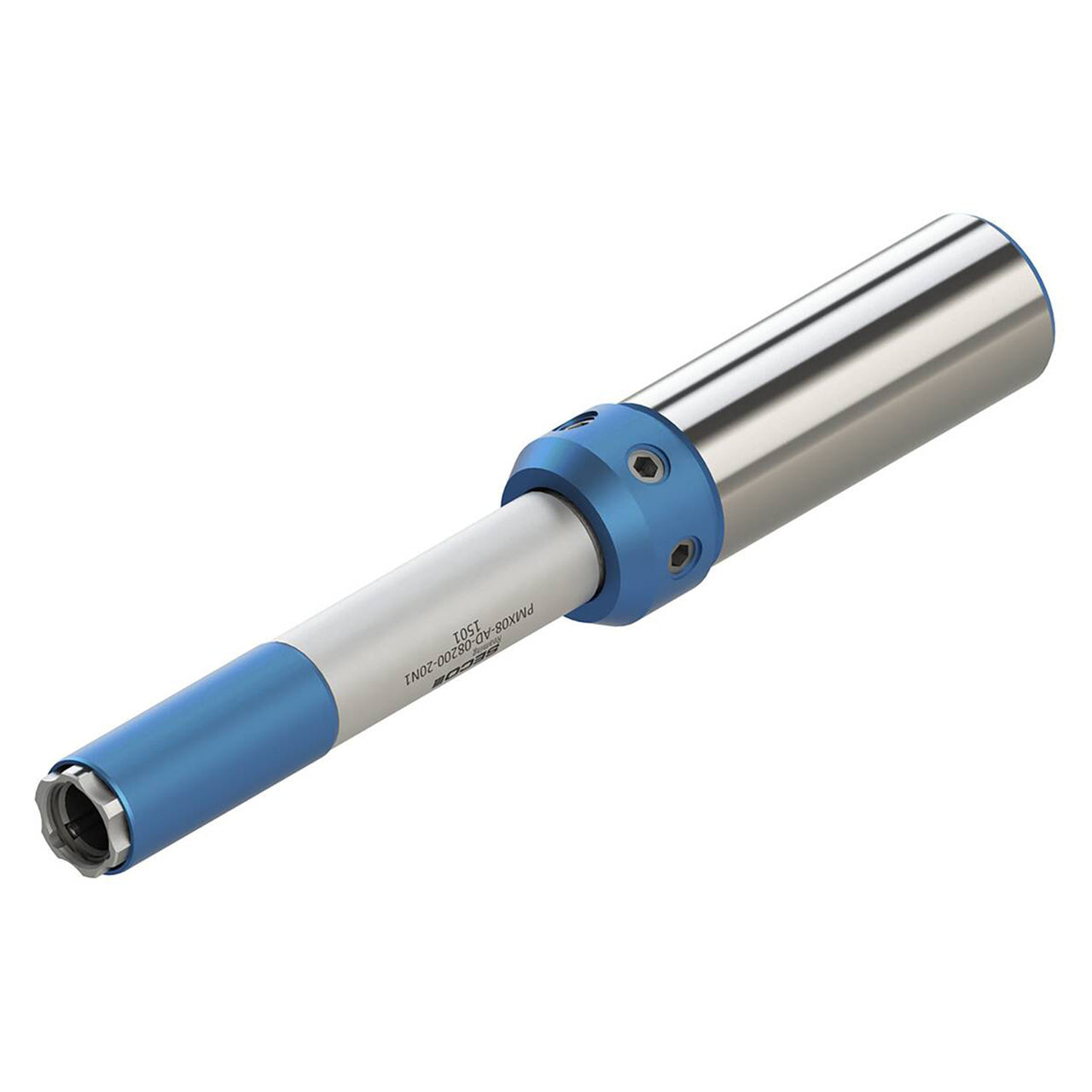

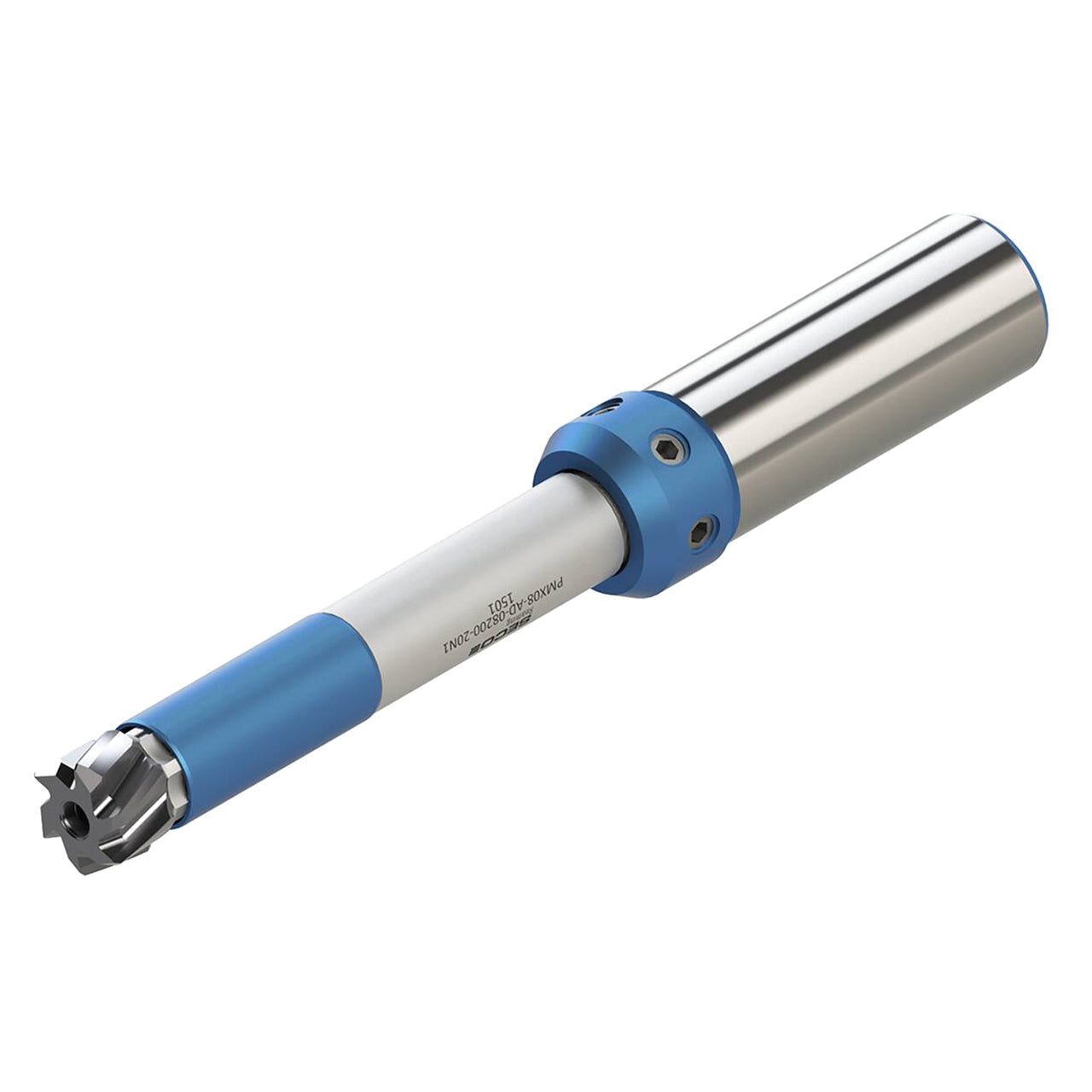

| Product Type | Modular Reamer Body |
