Product Specifications
| Manufacturer Part Number | 03002830 |
| Minimum Cutting Diameter (mm) | 21.50mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Maximum Cutting Diameter (mm) | 32.50mm |
| Shank Diameter (mm) | 25.00mm |
| Maximum Body Diameter (mm) | 28.00mm |
| Body Length (mm) | 167.00mm |
| Shank Length (mm) | 56.00mm |
| Overall Length (mm) | 179.00mm |
| Connection Code Workpiece Side | PMX..B-FL |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |

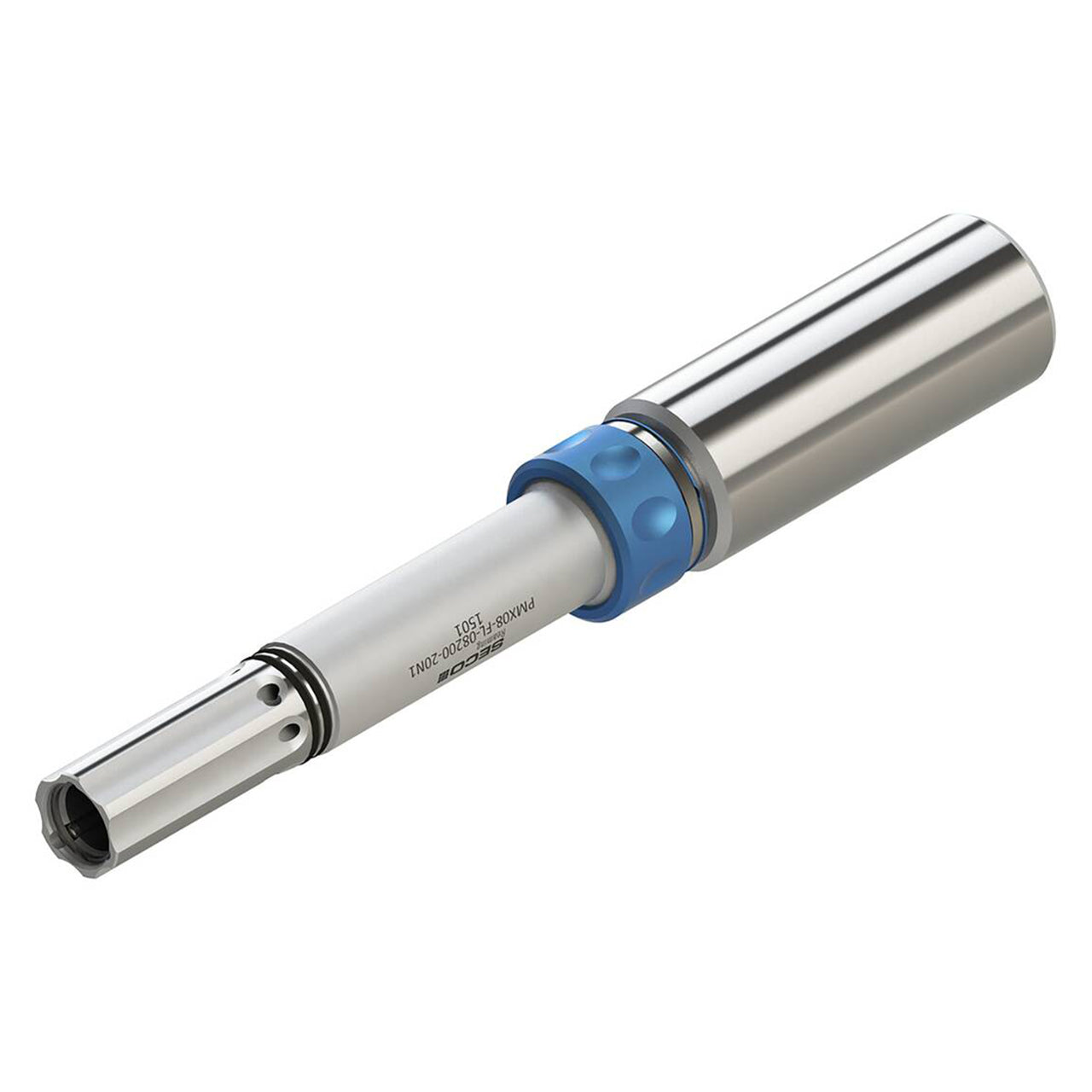

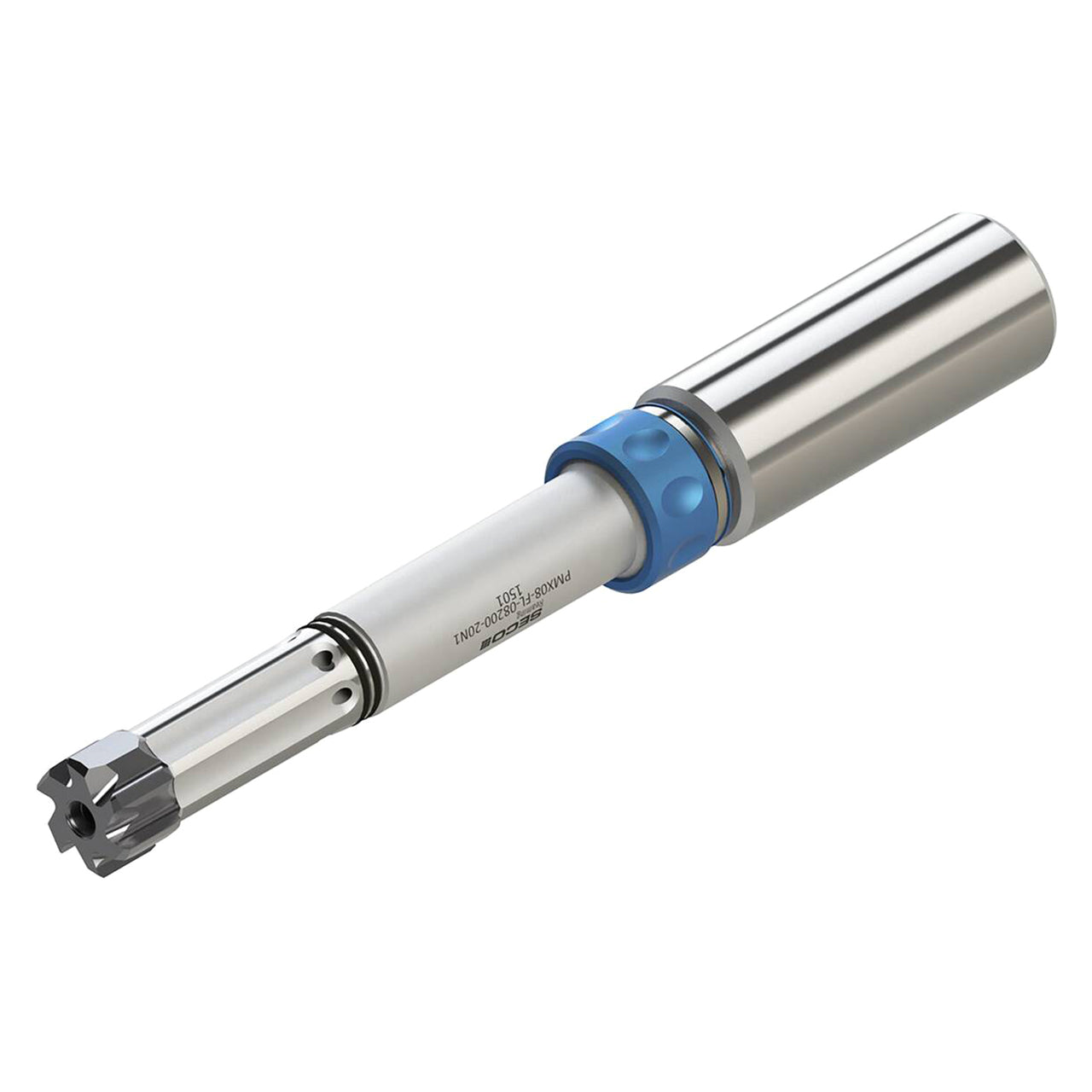

| Product Type | Modular Reamer Body |
