Product Specifications
| Manufacturer Part Number | 03000153 |
| Coating | Uncoated |
| Connection Diameter Machine Side (Decimal Inch) | 0.138" |
| Shank Diameter (Decimal Inch) | 0.138" |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 2.151" |
| Usable Length (Decimal Inch) | 0.709" |
| Material | HSS-E-PM |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 2.205" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.098" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.054" |
| Thread Diameter (Decimal Inch) | 0.118" |
| Thread Tolerance Class | 6H |
| Threading Chamfer Length (Decimal Inch) | 0.059" |
| Thread Form Type | M |
| Thread Length (Decimal Inch) | 0.354" |
| Product Series | MTH |

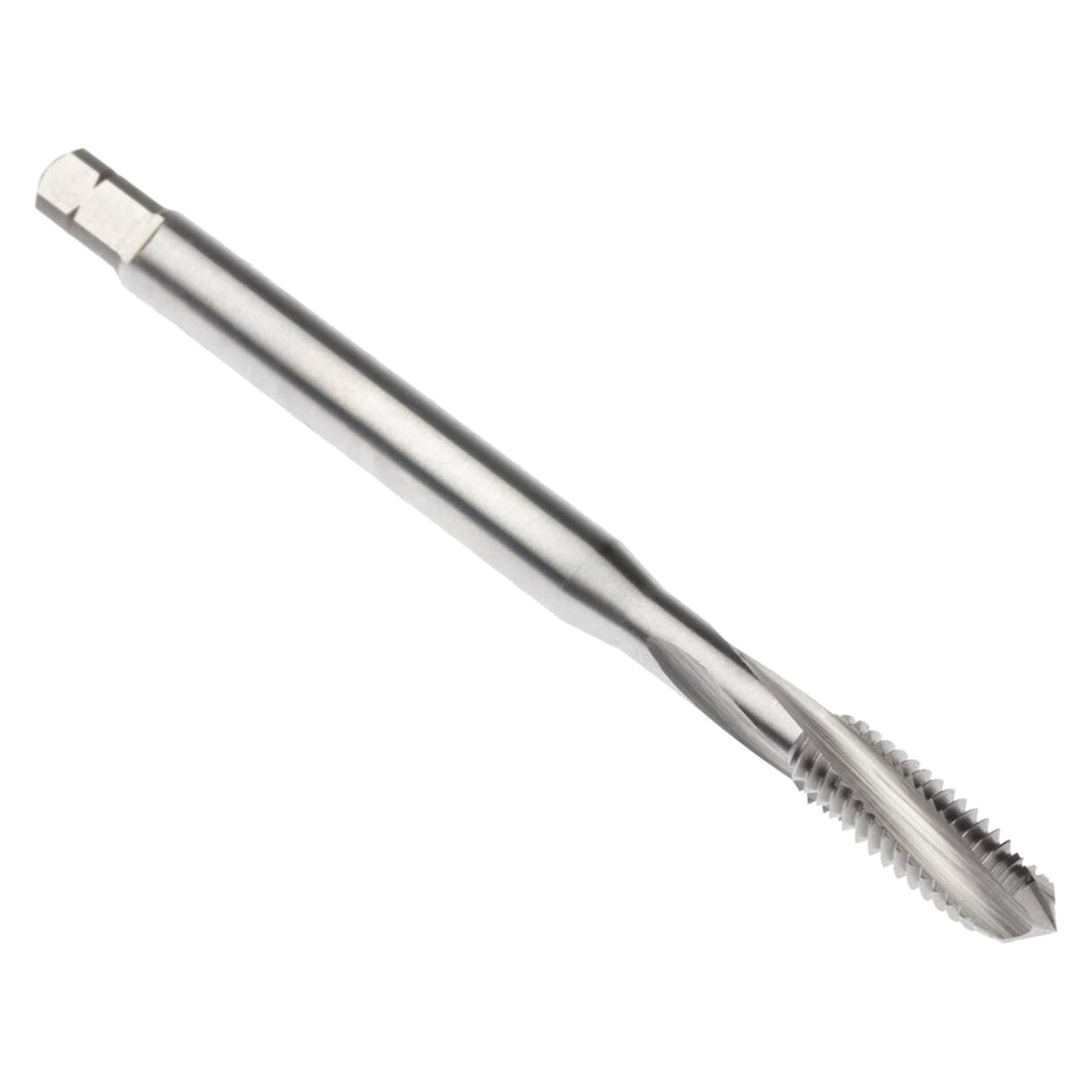

| Product Type | Spiral Flute Tap |
