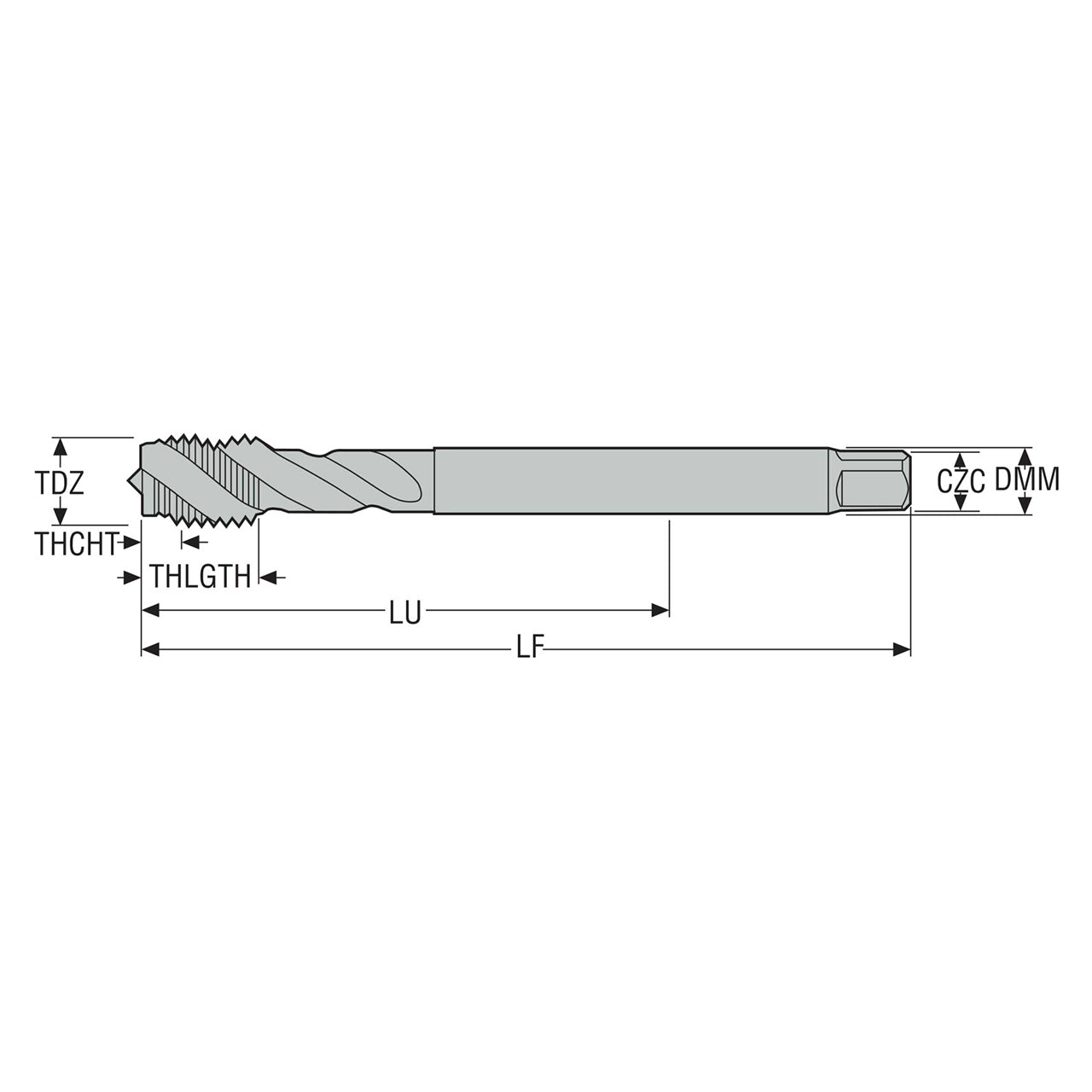

Product Specifications
| Manufacturer Part Number | 03000122 |
| Coating | TiCN |
| Connection Diameter Machine Side (Decimal Inch) | 0.472" |
| Shank Diameter (Decimal Inch) | 0.472" |
| Flute Helix Angle (Degree) | 48 Degree |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 4.114" |
| Usable Length (Decimal Inch) | 2.677" |
| Material | HSS-E |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 4.331" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.555" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.217" |
| Thread Diameter (Decimal Inch) | 0.630" |
| Thread Tolerance Class | 6H |
| Threading Chamfer Length (Decimal Inch) | 0.236" |
| Thread Form Type | M |
| Thread Length (Decimal Inch) | 0.787" |
| Product Series | MTH |

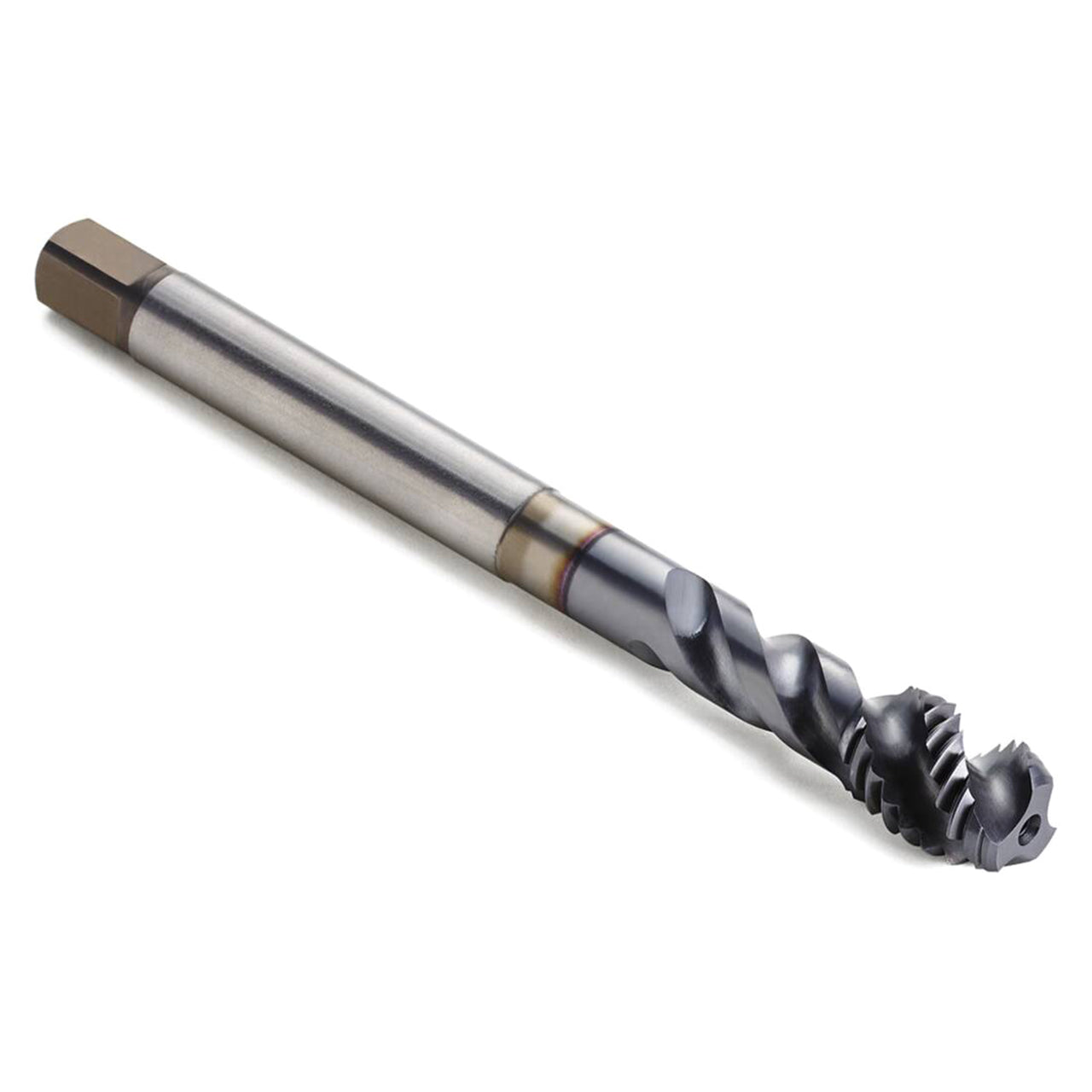

| Product Type | Spiral Flute Tap |
