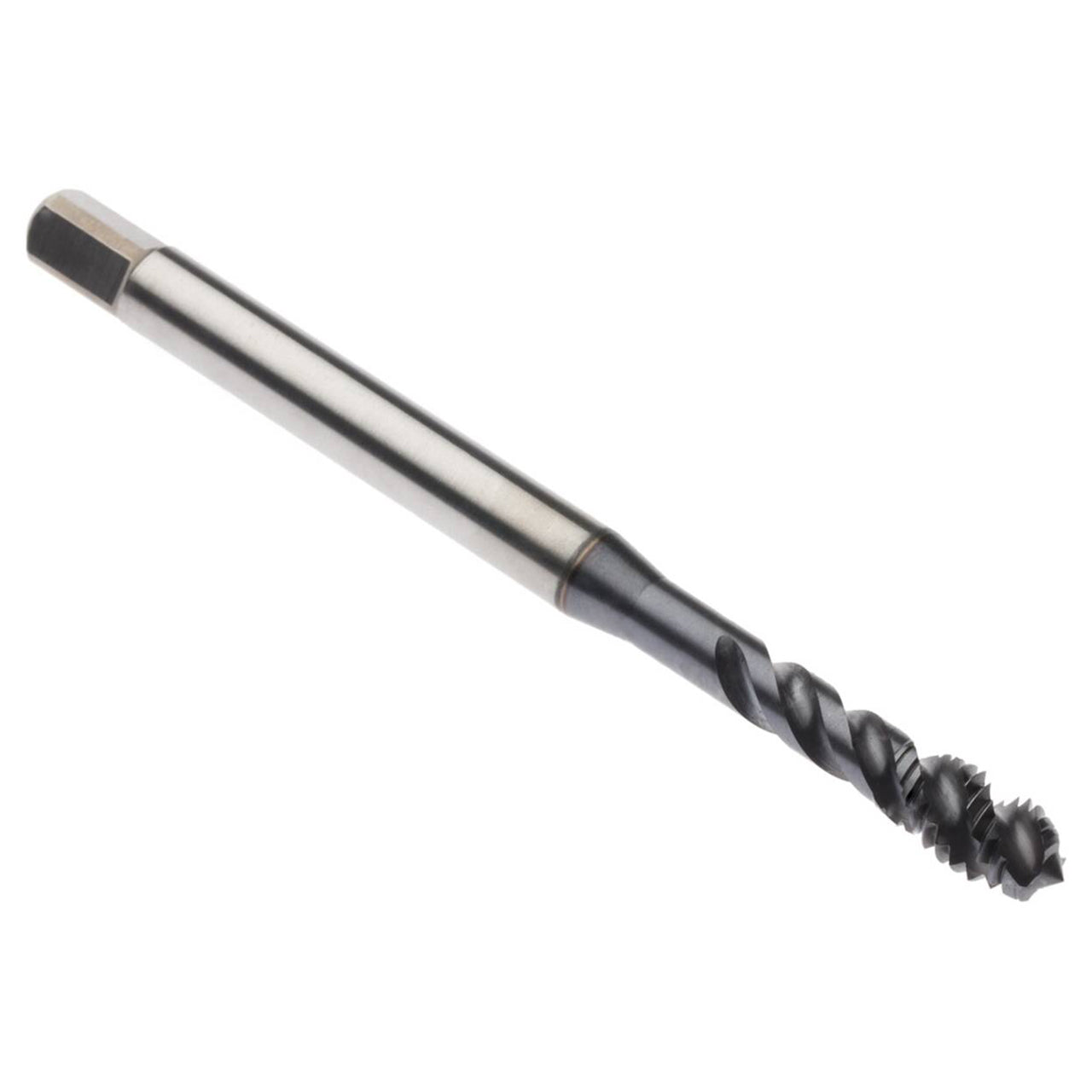

Product Specifications
| Manufacturer Part Number | 03000114 |
| Thread Diameter (Decimal Inch) | 0.158" |
| Thread Diameter (mm) | 4.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.083" |
| Threading Chamfer Length (mm) | 2.10mm |
| Tap Chamfer Length (Decimal Inch) | 0.076" |
| Tap Chamfer Length (mm) | 1.93mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.177" |
| Connection Diameter Machine Side (mm) | 4.50mm |
| Shank Diameter (Decimal Inch) | 0.177" |
| Shank Diameter (mm) | 4.50mm |
| Functional Length (Decimal Inch) | 2.405" |
| Functional Length (mm) | 61.08mm |
| Usable Length (Decimal Inch) | 0.827" |
| Usable Length (mm) | 21.00mm |
| Overall Length (Decimal Inch) | 2.480" |
| Overall Length (mm) | 63.00mm |
| Thread Length (Decimal Inch) | 0.264" |
| Thread Length (mm) | 6.70mm |
| Thread Diameter Size | M4 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.134" |
| Recommended Premachined Hole Diameter (mm) | 3.40mm |
| Connection Size Code | 4.50X3.40 |
| Connection Size Code Machine Side | 4.50X3.40 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.135" |
| Maximum Premachined Hole Diameter (mm) | 3.42mm |
| Minimum Thread Pitch (Decimal Inch) | 0.028" |
| Minimum Thread Pitch (mm) | 0.70mm |
| Maximum Thread Pitch (Decimal Inch) | 0.028" |
| Maximum Thread Pitch (mm) | 0.70mm |
| Flute Helix Angle (Degree) | 48 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-M |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiCN |
| Product Type | Spiral Flute Tap |
