Product Specifications
| Manufacturer Part Number | 03000100 |
| Thread Diameter (Decimal Inch) | 0.551" |
| Thread Diameter (mm) | 14.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.394" |
| Threading Chamfer Length (mm) | 10.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.433" |
| Connection Diameter Machine Side (mm) | 11.00mm |
| Shank Diameter (Decimal Inch) | 0.433" |
| Shank Diameter (mm) | 11.00mm |
| Functional Length (Decimal Inch) | 3.982" |
| Functional Length (mm) | 101.14mm |
| Usable Length (Decimal Inch) | 3.189" |
| Usable Length (mm) | 81.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.984" |
| Thread Length (mm) | 25.00mm |
| Thread Diameter Size | M14 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.476" |
| Recommended Premachined Hole Diameter (mm) | 12.10mm |
| Connection Size Code | 11.00X9.00 |
| Connection Size Code Machine Side | 11.00X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.481" |
| Maximum Premachined Hole Diameter (mm) | 12.21mm |
| Minimum Thread Pitch (Decimal Inch) | 0.079" |
| Minimum Thread Pitch (mm) | 2.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.079" |
| Maximum Thread Pitch (mm) | 2.00mm |
| Number of Flute | 4 |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-M |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiCN |

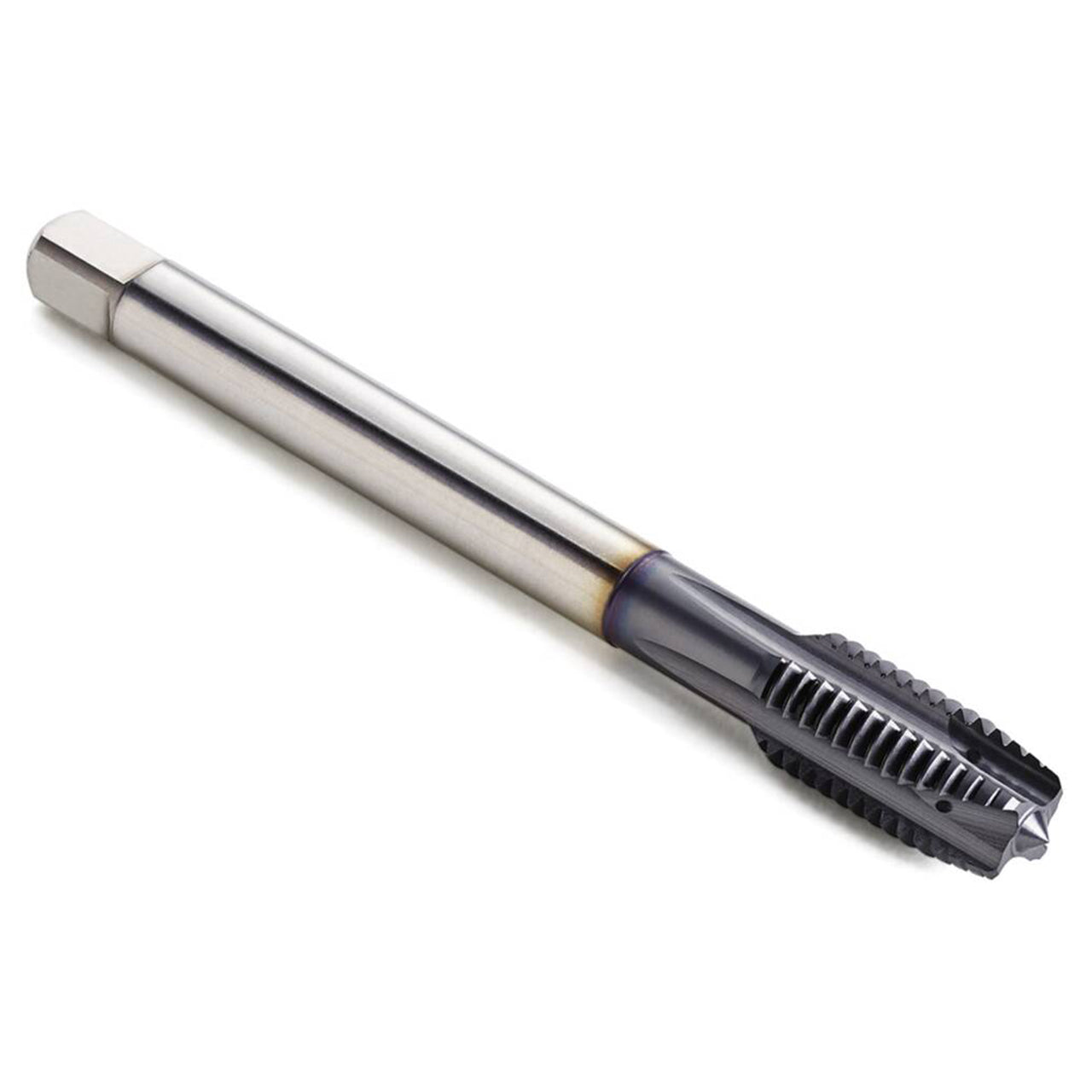

| Product Type | Spiral Point Tap |
