Product Specifications
| Manufacturer Part Number | 03000083 |
| Thread Diameter (Decimal Inch) | 0.197" |
| Thread Diameter (mm) | 5.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.158" |
| Threading Chamfer Length (mm) | 4.00mm |
| Tap Chamfer Length (Decimal Inch) | 0.087" |
| Tap Chamfer Length (mm) | 2.20mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 2.669" |
| Functional Length (mm) | 67.80mm |
| Usable Length (Decimal Inch) | 0.984" |
| Usable Length (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 2.756" |
| Overall Length (mm) | 70.00mm |
| Thread Length (Decimal Inch) | 0.496" |
| Thread Length (mm) | 12.60mm |
| Thread Diameter Size | M5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.169" |
| Recommended Premachined Hole Diameter (mm) | 4.30mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.171" |
| Maximum Premachined Hole Diameter (mm) | 4.33mm |
| Minimum Thread Pitch (Decimal Inch) | 0.032" |
| Minimum Thread Pitch (mm) | 0.80mm |
| Maximum Thread Pitch (Decimal Inch) | 0.032" |
| Maximum Thread Pitch (mm) | 0.80mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-M |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiCN |

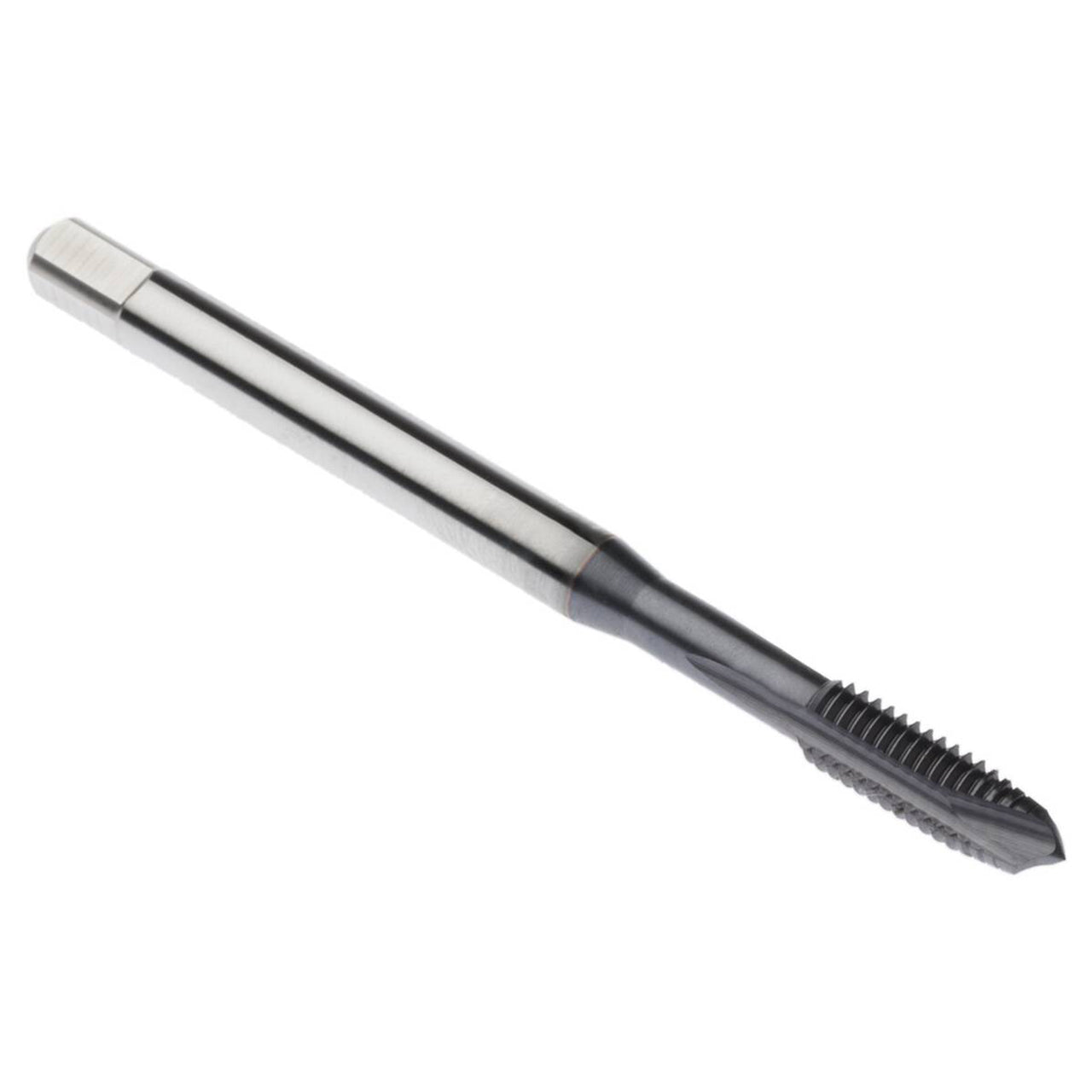

| Product Type | Spiral Point Tap |
