Product Specifications
| Manufacturer Part Number | 03000073 |
| Coating | TiCN |
| Connection Diameter Machine Side (Decimal Inch) | 0.098" |
| Shank Diameter (Decimal Inch) | 0.098" |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 1.513" |
| Usable Length (Decimal Inch) | 0.787" |
| Material | HSS-E |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 1.575" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.051" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.069" |
| Thread Diameter (Decimal Inch) | 0.063" |
| Thread Tolerance Class | 6H |
| Threading Chamfer Length (Decimal Inch) | 0.069" |
| Thread Form Type | M |
| Thread Length (Decimal Inch) | 0.276" |
| Product Series | MTP |

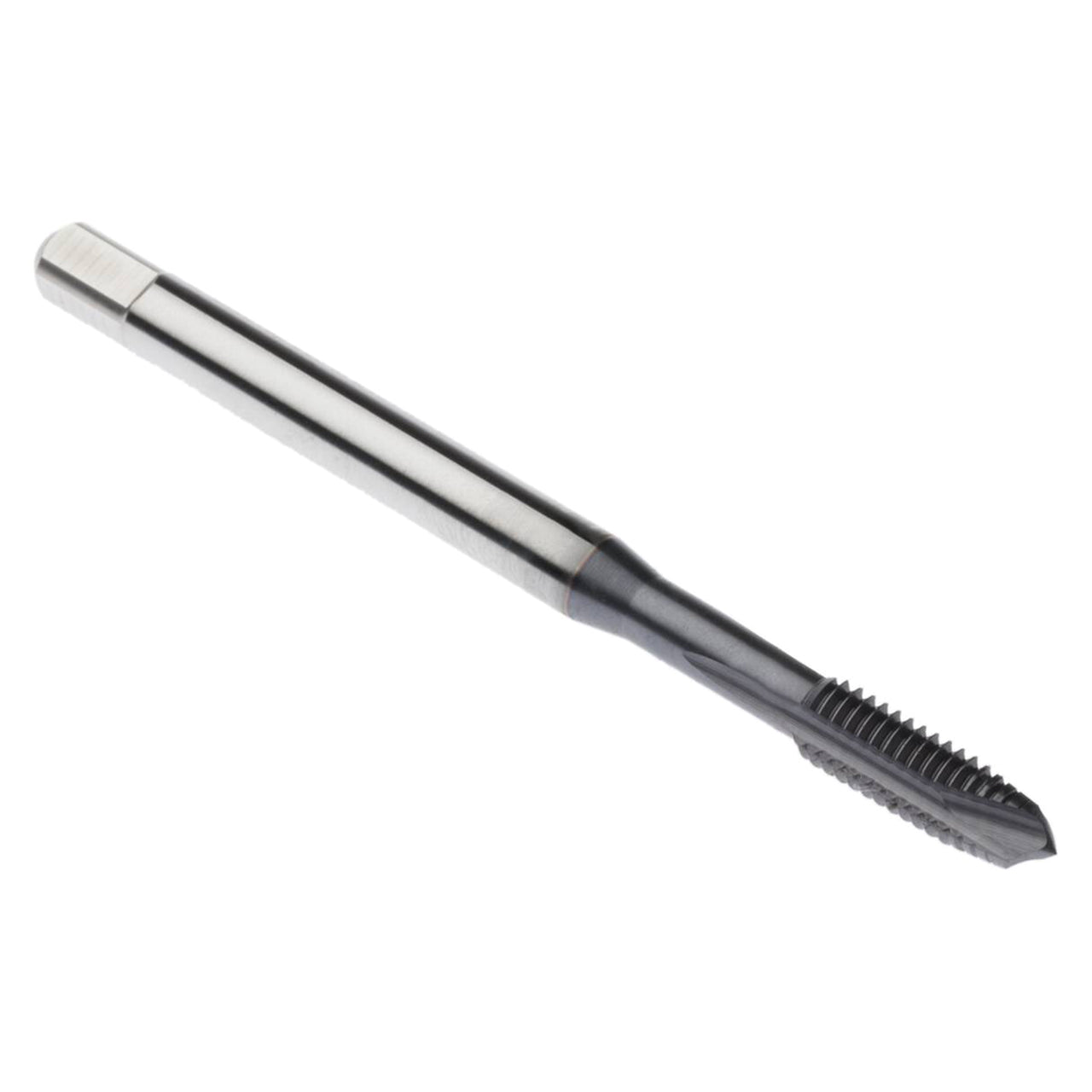

| Product Type | Spiral Point Tap |
