Product Specifications
| Manufacturer Part Number | 02999967 |
| Coating | AlTiN |
| Connection Diameter Machine Side (Decimal Inch) | 0.709" |
| Shank Diameter (Decimal Inch) | 0.709" |
| Cutting Direction | Right Hand |
| Functional Length (Decimal Inch) | 5.245" |
| Usable Length (Decimal Inch) | 3.661" |
| Material | HSS-E-PM |
| Number of Flutes | 4 |
| Overall Length (Decimal Inch) | 5.512" |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.925" |
| Shank Type | Cylindrical |
| Tap Chamfer Length (Decimal Inch) | 0.267" |
| Thread Diameter (Decimal Inch) | 0.984" |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Length (Decimal Inch) | 0.295" |
| Thread Form Type | MF |
| Thread Length (Decimal Inch) | 1.102" |
| Product Series | MTP |

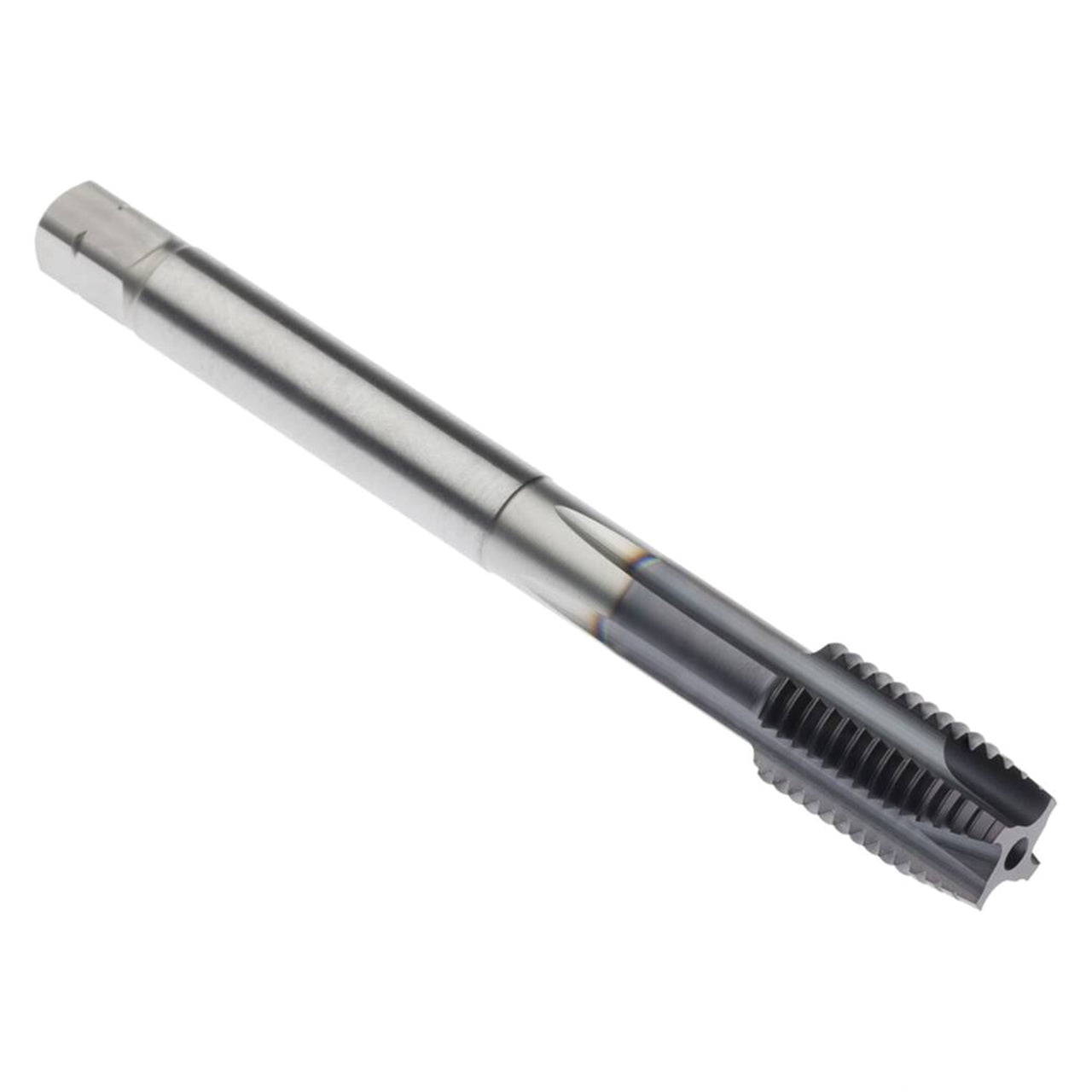

| Product Type | Spiral Point Tap |
