Product Specifications
| Manufacturer Part Number | 02999899 |
| Thread Diameter (Decimal Inch) | 0.055" |
| Thread Diameter (mm) | 1.40mm |
| Threading Chamfer Length (Decimal Inch) | 0.059" |
| Threading Chamfer Length (mm) | 1.50mm |
| Tap Chamfer Length (Decimal Inch) | 0.053" |
| Tap Chamfer Length (mm) | 1.35mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.098" |
| Connection Diameter Machine Side (mm) | 2.50mm |
| Shank Diameter (Decimal Inch) | 0.098" |
| Shank Diameter (mm) | 2.50mm |
| Functional Length (Decimal Inch) | 1.522" |
| Functional Length (mm) | 38.65mm |
| Usable Length (Decimal Inch) | 0.787" |
| Usable Length (mm) | 20.00mm |
| Overall Length (Decimal Inch) | 1.575" |
| Overall Length (mm) | 40.00mm |
| Thread Length (Decimal Inch) | 0.256" |
| Thread Length (mm) | 6.50mm |
| Thread Diameter Size | M1.4 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.043" |
| Recommended Premachined Hole Diameter (mm) | 1.10mm |
| Connection Size Code | 2.50X2.10 |
| Connection Size Code Machine Side | 2.50X2.10 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.045" |
| Maximum Premachined Hole Diameter (mm) | 1.14mm |
| Minimum Thread Pitch (Decimal Inch) | 0.012" |
| Minimum Thread Pitch (mm) | 0.30mm |
| Maximum Thread Pitch (Decimal Inch) | 0.012" |
| Maximum Thread Pitch (mm) | 0.30mm |
| Number of Flute | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 5HX |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-P |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | AlTiN |

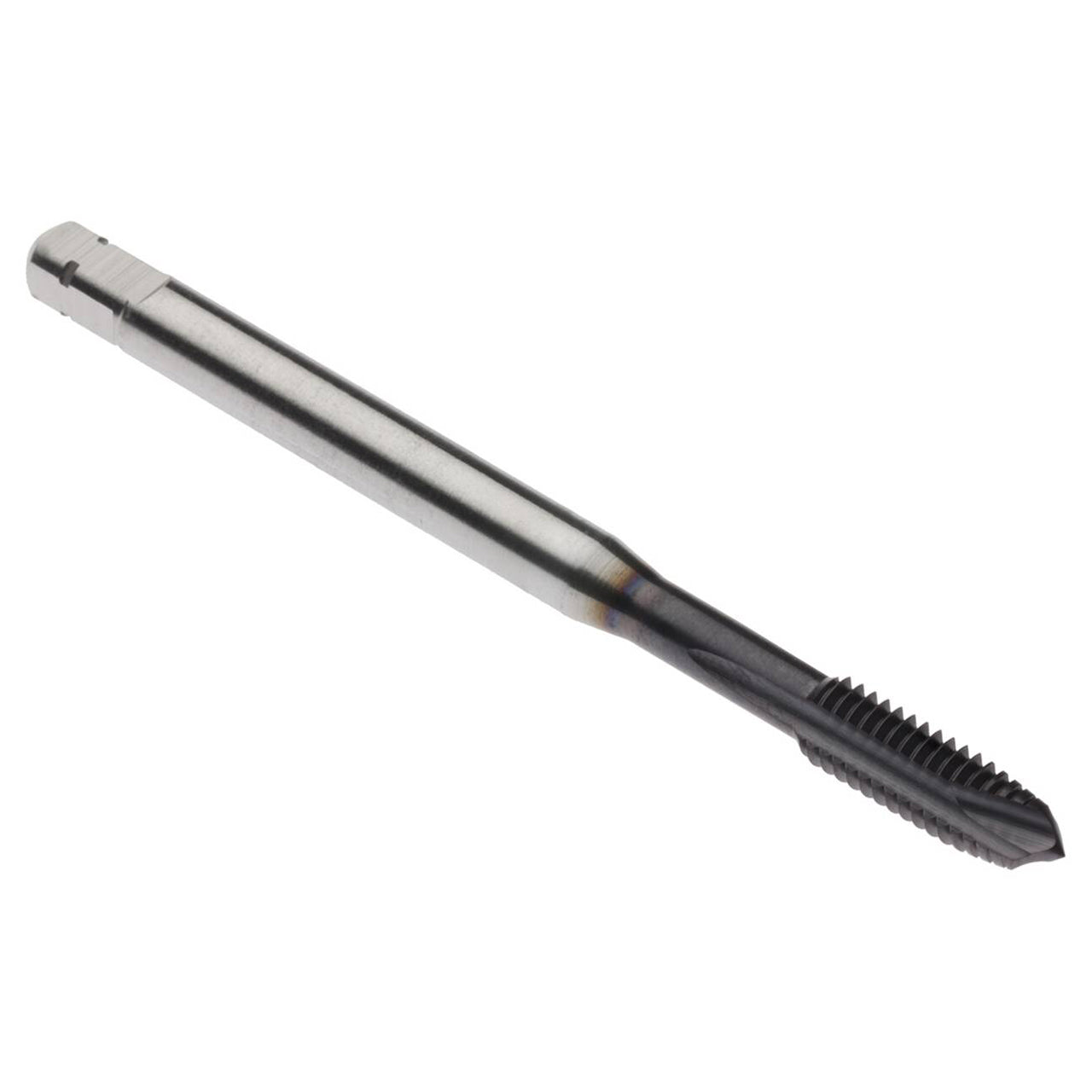

| Product Type | Spiral Point Tap |
