Product Specifications
| Manufacturer Part Number | 02998724 |
| Body Diameter 1 (Decimal Inch) | 0.630" |
| Body Diameter 1 (mm) | 16.00mm |
| Body Diameter 2 (Decimal Inch) | 0.630" |
| Body Diameter 2 (mm) | 16.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.020" |
| Minimum Connection Bore Diameter (mm) | 0.50mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.276" |
| Maximum Connection Bore Diameter (mm) | 7.00mm |
| Body Length (Decimal Inch) | 3.185" |
| Body Length (mm) | 80.90mm |
| Body Length 1 (Decimal Inch) | 3.187" |
| Body Length 1 (mm) | 80.95mm |
| Functional Length (Decimal Inch) | 3.228" |
| Functional Length (mm) | 82.00mm |
| Minimum Functional Length (Decimal Inch) | 2.520" |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Overall Length (Decimal Inch) | 6.630" |
| Overall Length (mm) | 168.40mm |
| Data Chip Provision | 1 |

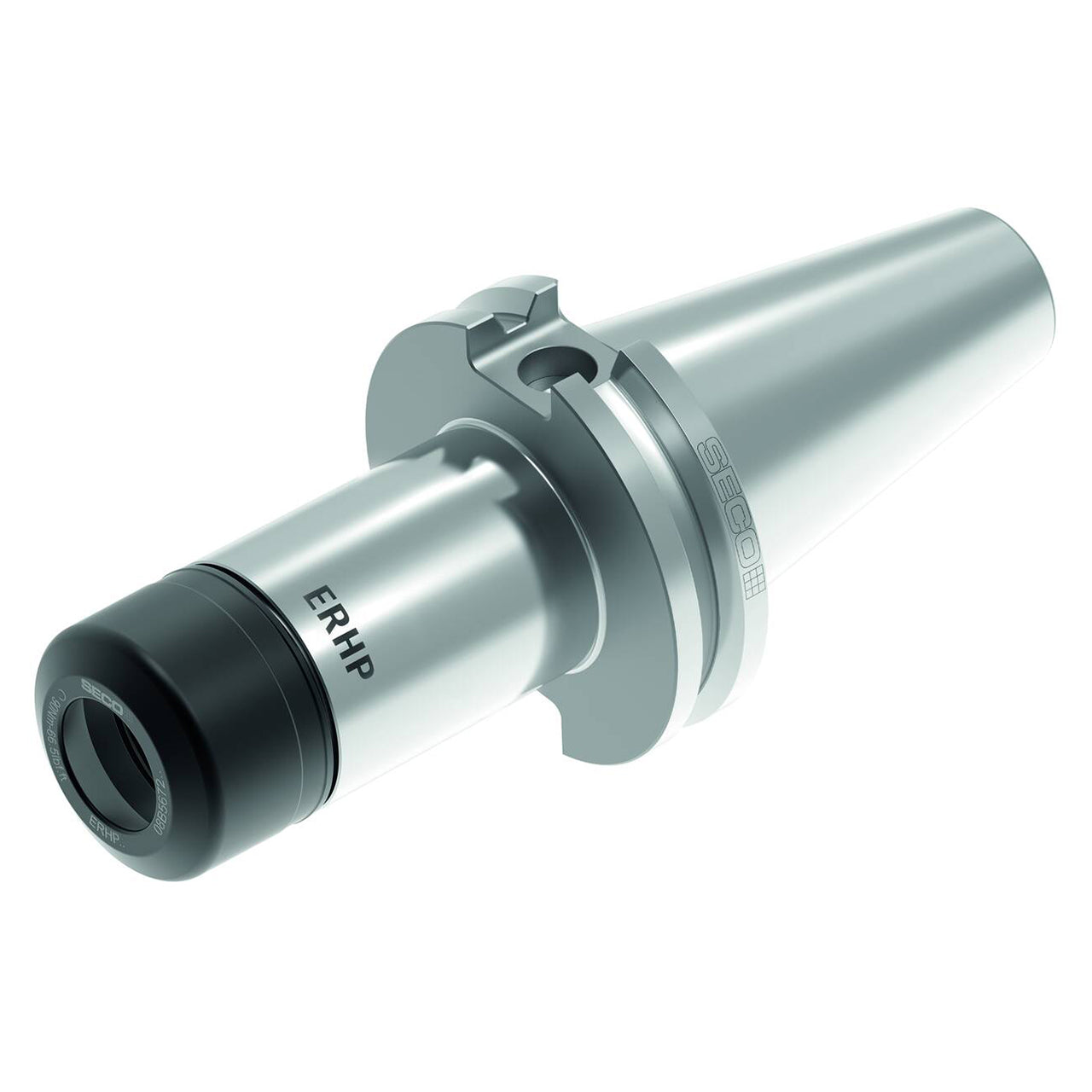

| Product Type | Collet Chuck |
