Product Specifications
| Manufacturer Part Number | 02993937 |
| Cutting Diameter (Decimal Inch) | 6.000" |
| Cutting Diameter (mm) | 152.40mm |
| Connection Bore Diameter (Decimal Inch) | 1.500" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.250" |
| Contact Surface Diameter Machine Side (mm) | 57.15mm |
| Functional Length (Decimal Inch) | 0.641" |
| Functional Length (mm) | 16.28mm |
| Keyway Width (Decimal Inch) | 0.375" |
| Keyway Width (mm) | 9.52mm |
| Minimum Cutting Width (Decimal Inch) | 0.532" |
| Minimum Cutting Width (mm) | 13.50mm |
| Maximum Cutting Width (Decimal Inch) | 0.669" |
| Maximum Depth of Cut (Decimal Inch) | 0.354" |
| Maximum Depth of Cut (mm) | 8.99mm |
| Maximum Cutting Depth (Decimal Inch) | 1.795" |
| Maximum Cutting Depth (mm) | 45.60mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -8.5 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 7200 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ0905 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor hole |

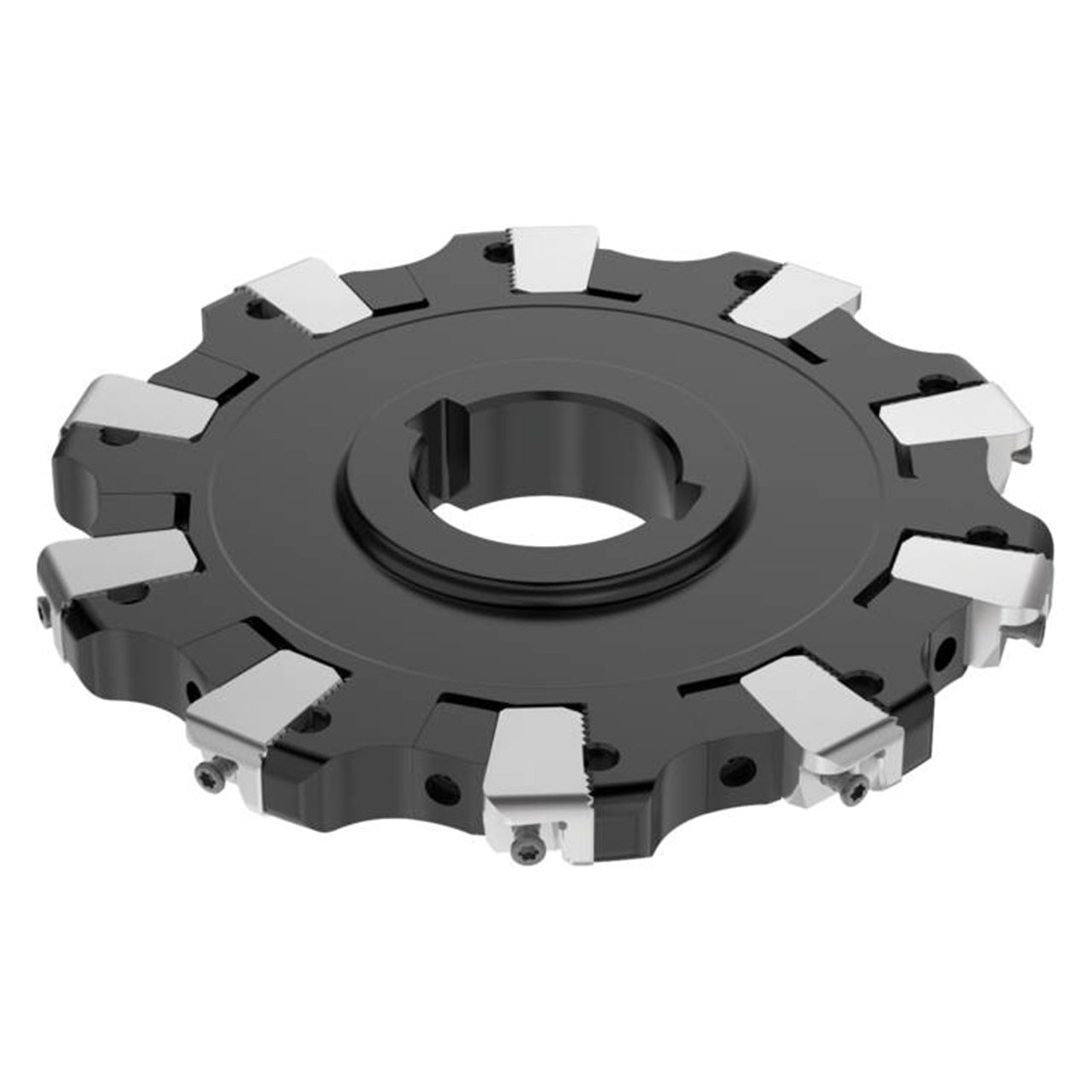

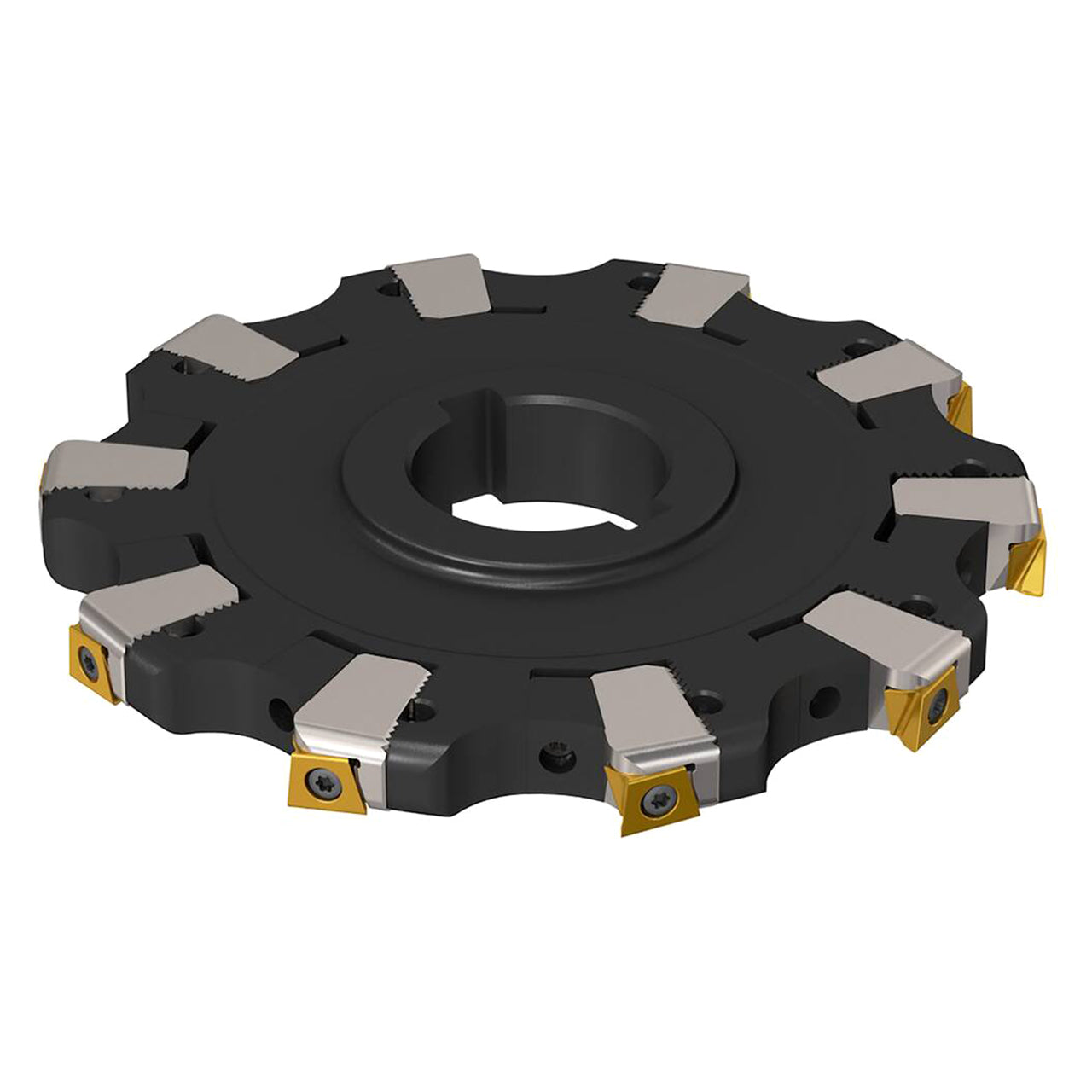

| Product Type | Indexable Slotting Cutter |
