Product Specifications
| Manufacturer Part Number | 02993868 |
| Cutting Diameter (Decimal Inch) | 10.000" |
| Cutting Diameter (mm) | 254.00mm |
| Connection Bore Diameter (Decimal Inch) | 2.500" |
| Connection Bore Diameter (mm) | 63.50mm |
| Diameter Bolt Circle 1 (Decimal Inch) | 4.000" |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 5.120" |
| Contact Surface Diameter Machine Side (mm) | 130.05mm |
| Functional Length (Decimal Inch) | 2.000" |
| Functional Length (mm) | 50.80mm |
| Keyway Width (Decimal Inch) | 1.012" |
| Keyway Width (mm) | 25.70mm |
| Minimum Cutting Width (Decimal Inch) | 0.669" |
| Minimum Cutting Width (mm) | 17.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.433" |
| Maximum Depth of Cut (mm) | 11.00mm |
| Depth of Key Way (Decimal Inch) | 0.551" |
| Depth of Key Way (mm) | 14.00mm |
| Maximum Cutting Depth (Decimal Inch) | 2.400" |
| Maximum Cutting Depth (mm) | 60.95mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -9 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 4600 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | XNHQ1206 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |

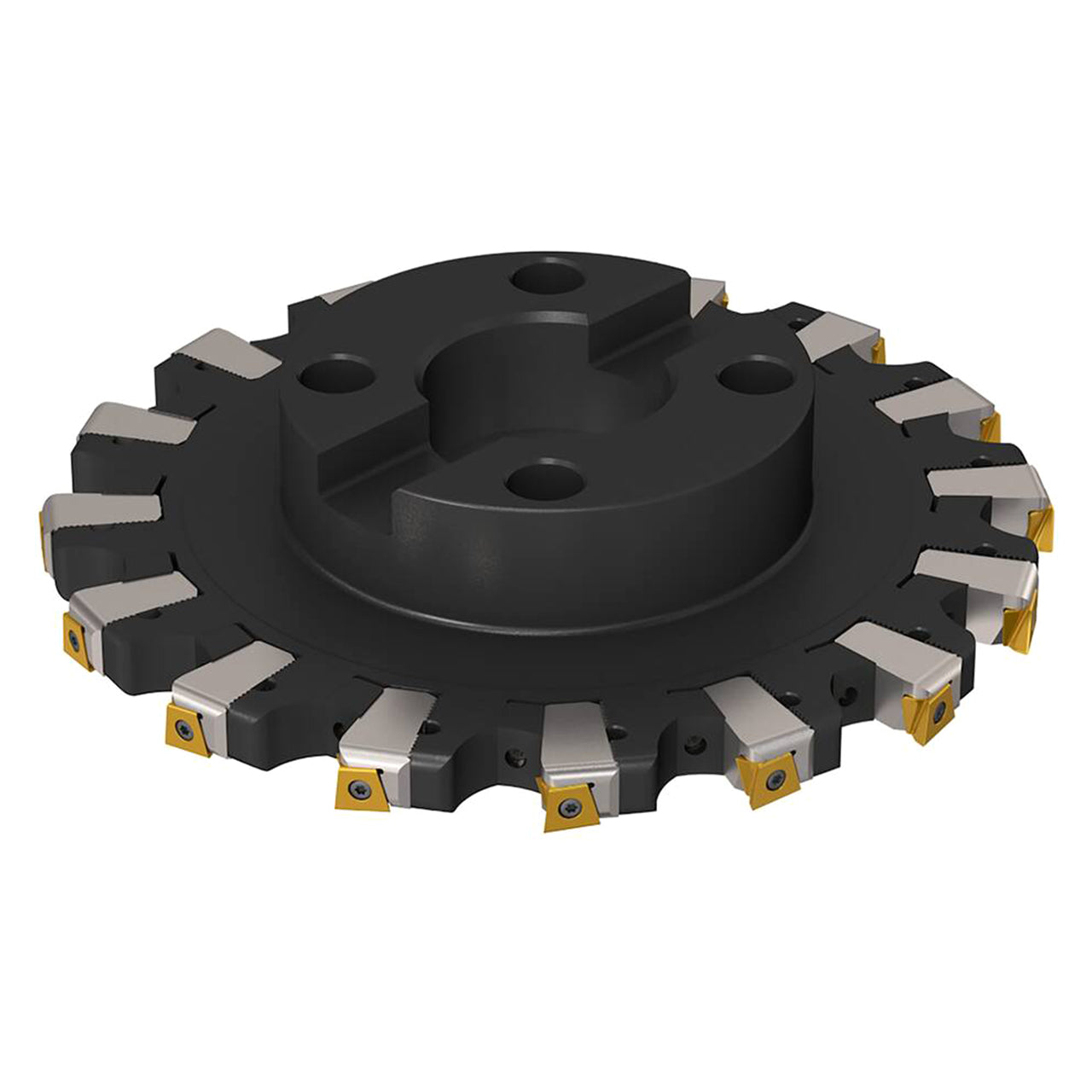

| Product Type | Indexable Slotting Cutter |
