Seco Tools

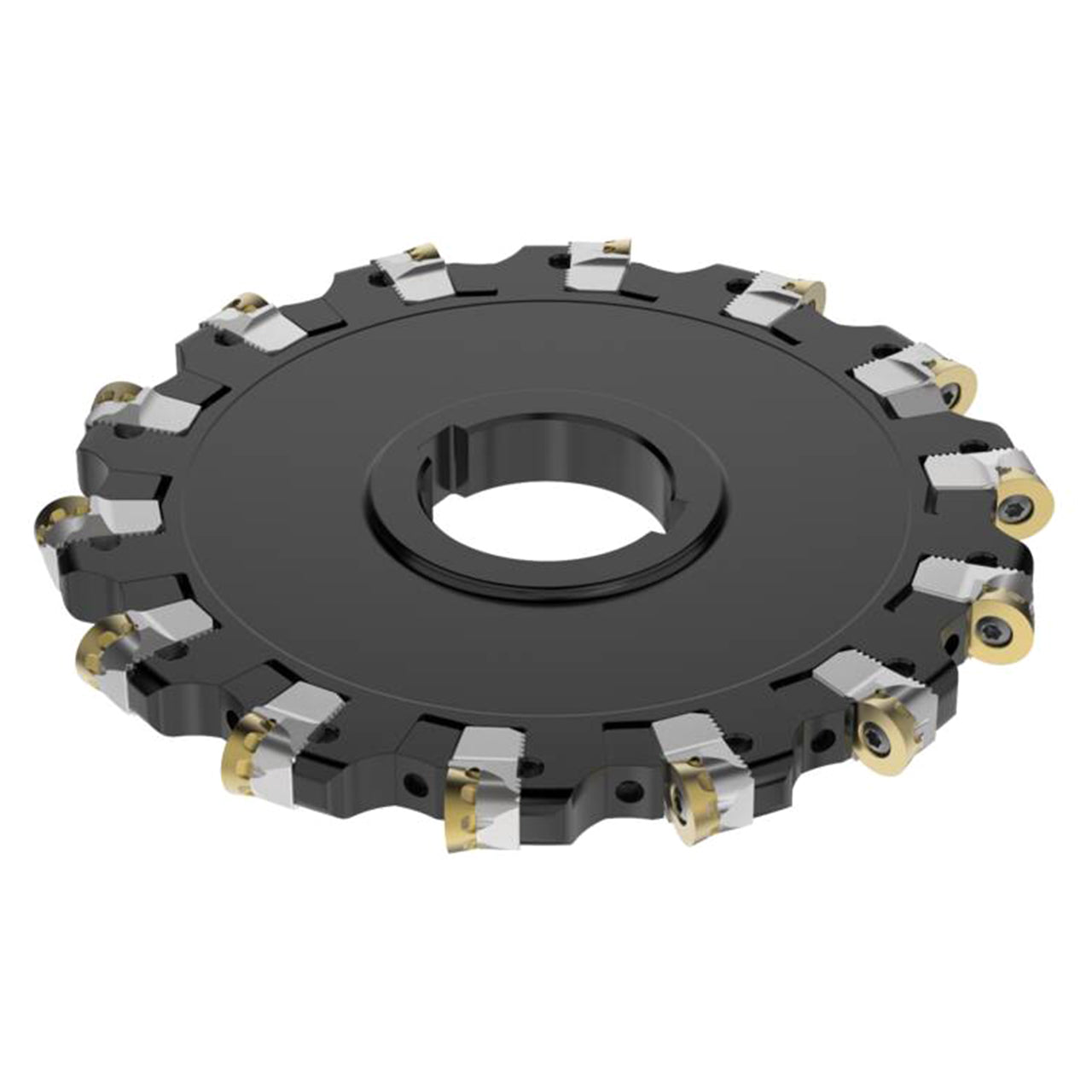

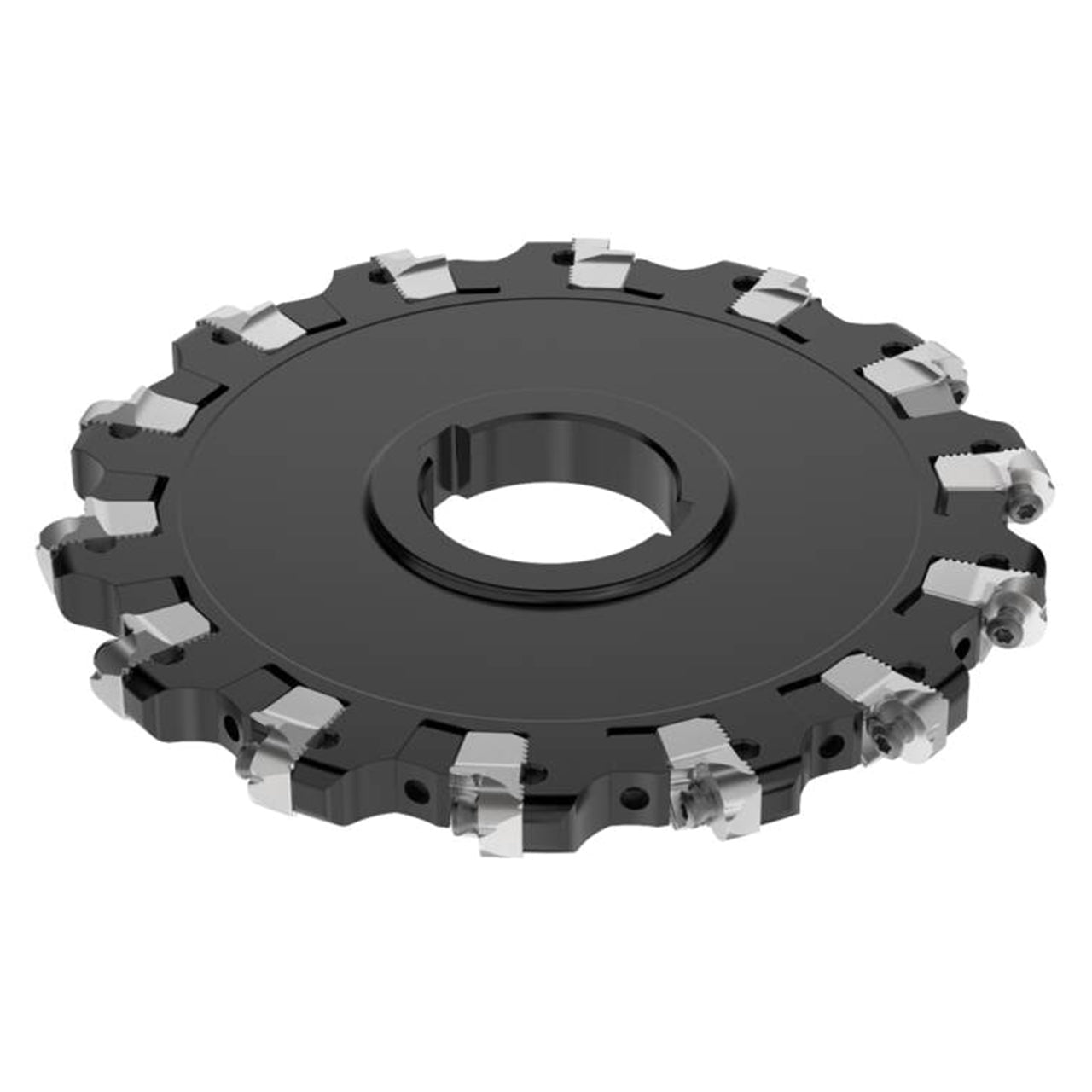

Seco Tools 02993841 | 335.25-200.1317.50-14L-R8 205.00mm Cutting Diameter x 66.64mm Cutting Depth of Cut Maximum x 3.00 Degree Rake Axial Angle 14 Cutting Edge 6500 rpm Rotational Speed Arbor hole 335.25 Indexable Slotting Cutter

Seco Tools 02993841 | 335.25-200.1317.50-14L-R8 205.00mm Cutting Diameter x 66.64mm Cutting Depth of Cut Maximum x 3.00 Degree Rake Axial Angle 14 Cutting Edge 6500 rpm Rotational Speed Arbor hole 335.25 Indexable Slotting Cutter

SKU: 23284029

$3,520.00 USD
$3,520.00 USD $3,520.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

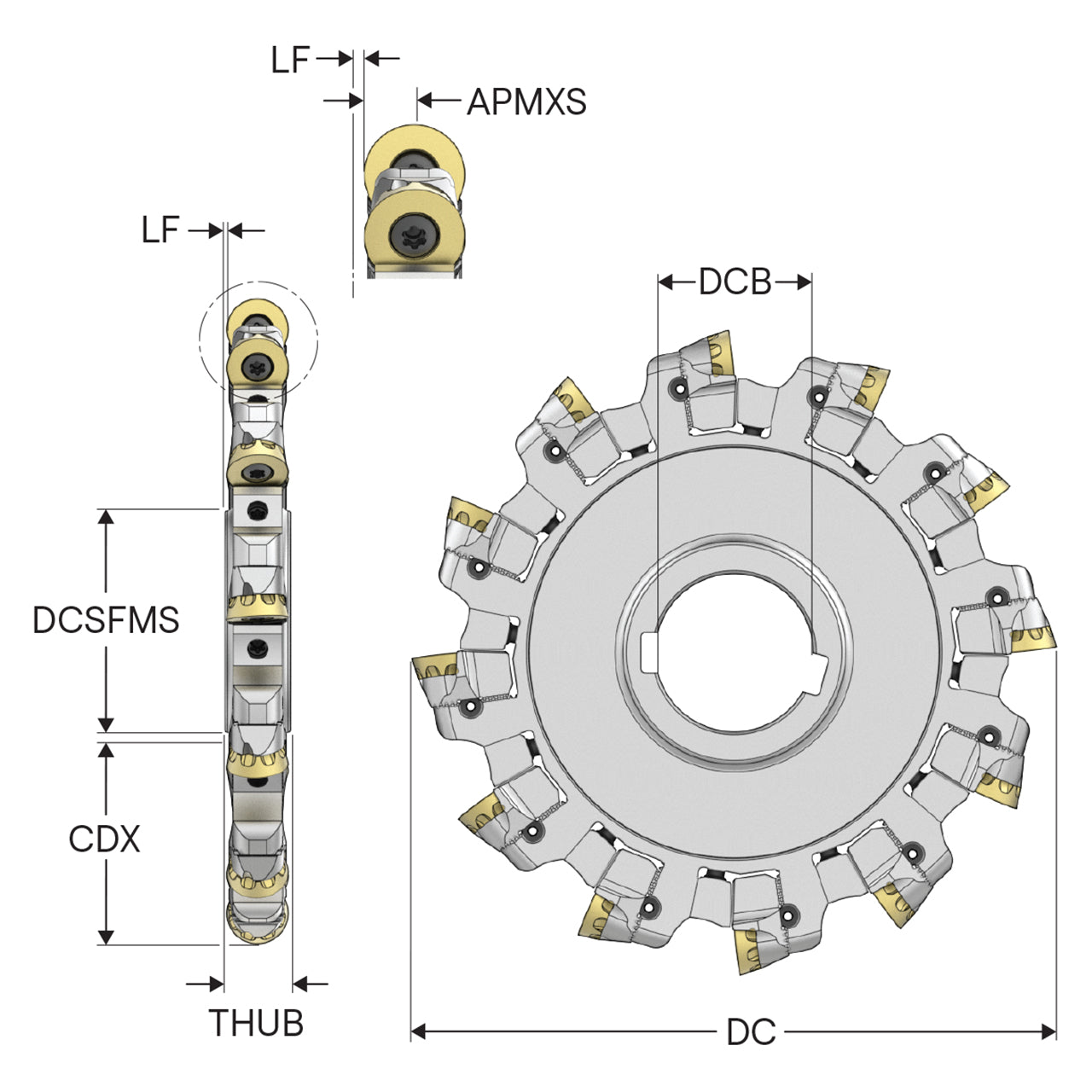

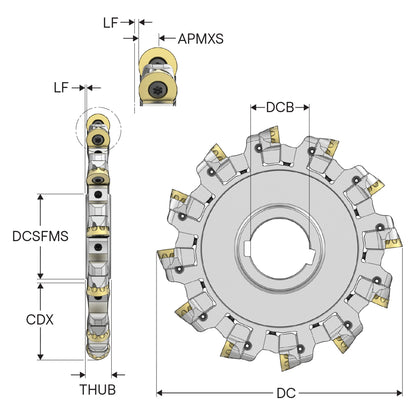

Product Specifications
Manufacturer Part Number 02993841
Depth of Cut Maximum in Feed Direction Side (mm) 8.00mm
Cutting Pitch Density Normal
Cutting Diameter (mm) 205.00mm
Contact Surface Diameter Machine Side (mm) 69.00mm
Cutting Direction Left Hand
Tool Cutting Edge Angle in Feed Direction Side (Degree) 90.00 Degree
Functional Length (mm) 0.48mm
Rotational Speed Maximum 6500 rpm
Shank Type Arbor hole
Peripheral Effective Cutting Edge Count 14
Product Series 335.25
Product Type Indexable Slotting Cutter
