Product Specifications
| Manufacturer Part Number | 02993817 |
| Cutting Diameter (mm) | 105.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Maximum Cutting Diameter (mm) | 105.00mm |
| Contact Surface Diameter Machine Side (mm) | 48.00mm |
| Functional Length (mm) | 51.27mm |
| Keyway Width (mm) | 12.40mm |
| Minimum Cutting Width (mm) | 16.03mm |
| Maximum Depth of Cut (mm) | 7.94mm |
| Depth of Key Way (mm) | 7.00mm |
| Maximum Cutting Depth (mm) | 27.99mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -8.5 Degree |
| Cutting Direction | Left Hand |
| Maximum Rotational Speed (rpm) | 9200 rpm |
| Cutting Pitch Density | Normal |
| Pocket Seat Code of The Cutter | RP..1605 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |

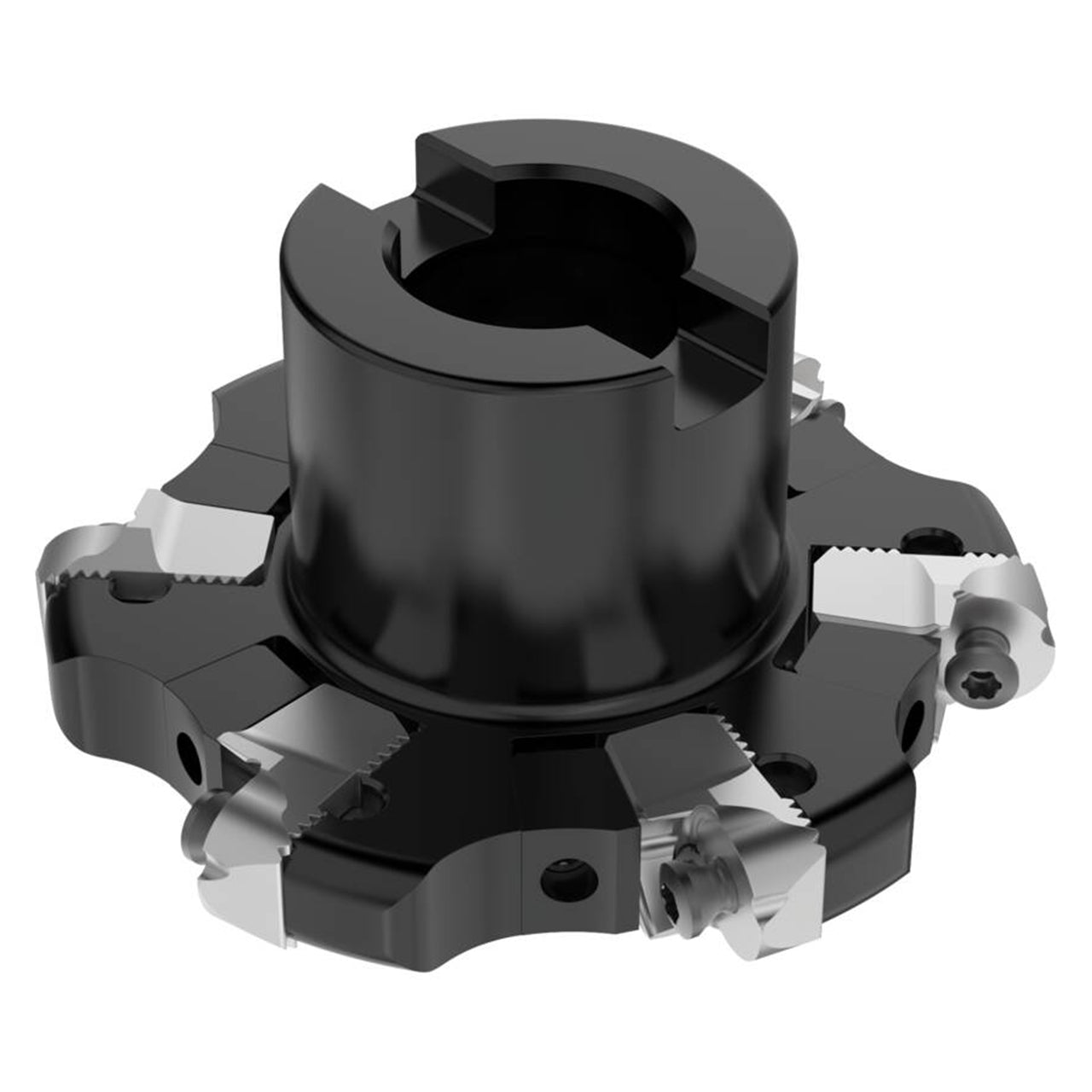

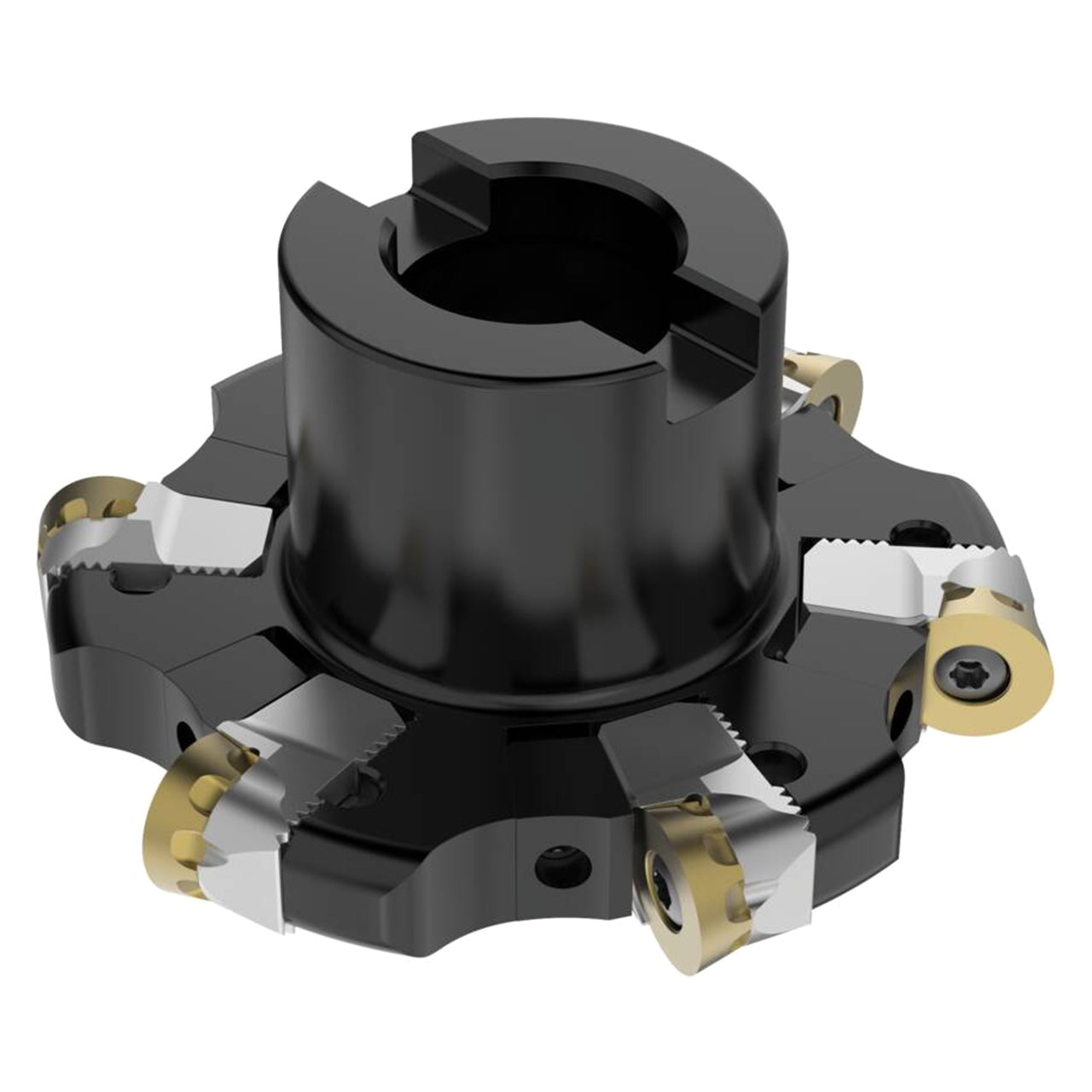

| Product Type | Indexable Slotting Cutter |
