Product Specifications
| Manufacturer Part Number | 02990230 |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Shank Width (Decimal Inch) | 1.427" |
| Shank Width (mm) | 36.25mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.721" |
| Minimum Cutting Diameter Internal (mm) | 43.70mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Height of Tool Holder Shank (mm) | 34.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.339" |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Functional Length (Decimal Inch) | 12.000" |
| Functional Length (mm) | 304.80mm |
| Head Length (Decimal Inch) | 1.776" |
| Head Length (mm) | 45.10mm |
| Usable Length (Decimal Inch) | 11.909" |
| Usable Length (mm) | 302.50mm |
| Shank Type | Cylindrical |
| Functional Width (Decimal Inch) | 0.860" |
| Functional Width (mm) | 21.84mm |

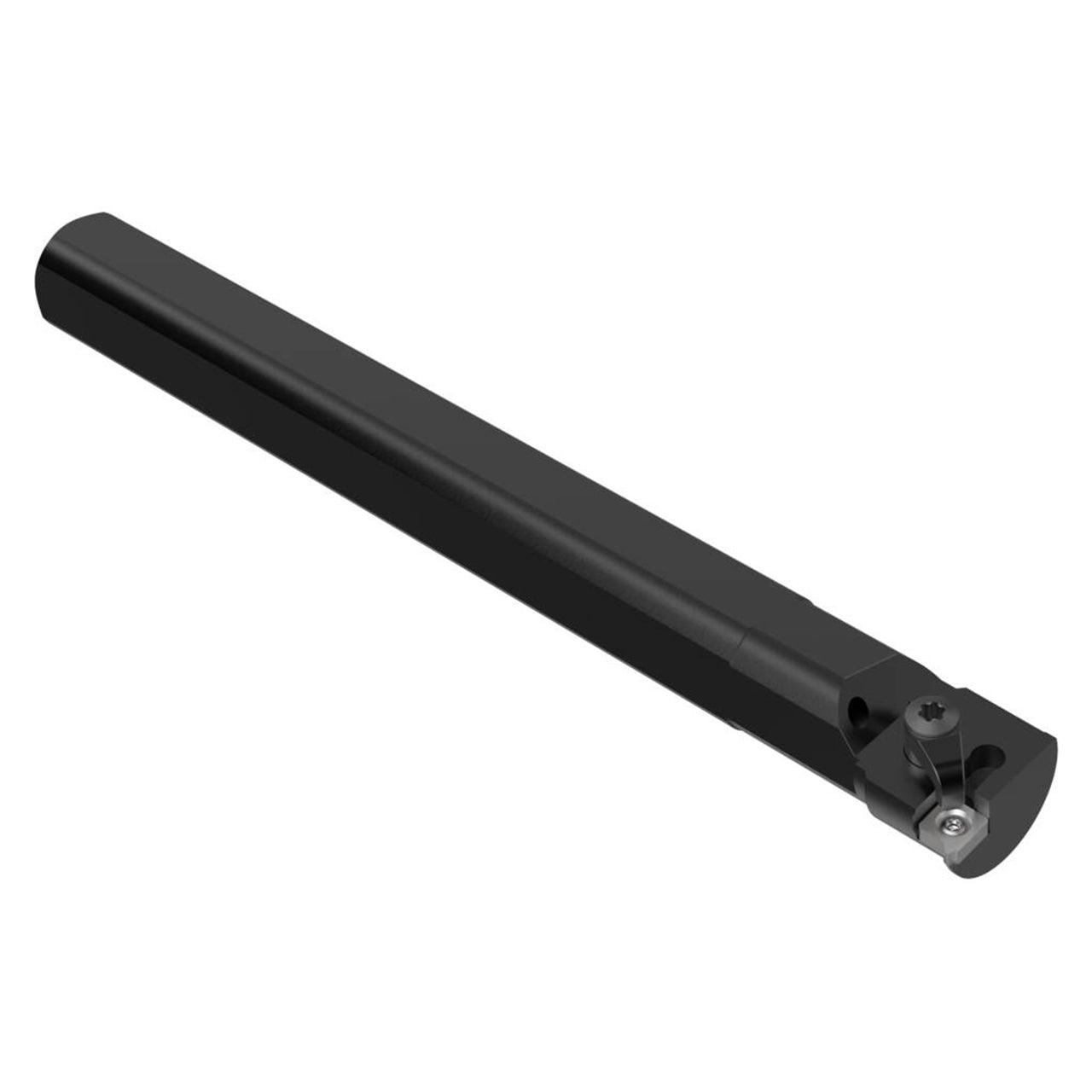

| Product Type | Indexable Grooving Toolholder |
