Product Specifications
| Manufacturer Part Number | 02990225 |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Shank Width (Decimal Inch) | 0.957" |
| Shank Width (mm) | 24.30mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.240" |
| Minimum Cutting Diameter Internal (mm) | 31.50mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Height of Tool Holder Shank (mm) | 23.40mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.921" |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Functional Length (Decimal Inch) | 8.000" |
| Functional Length (mm) | 203.20mm |
| Head Length (Decimal Inch) | 1.579" |
| Head Length (mm) | 40.10mm |
| Usable Length (Decimal Inch) | 7.909" |
| Usable Length (mm) | 200.90mm |
| Shank Type | Cylindrical |
| Functional Width (Decimal Inch) | 0.620" |
| Functional Width (mm) | 15.75mm |

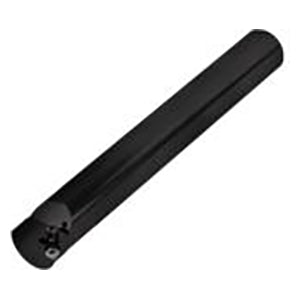

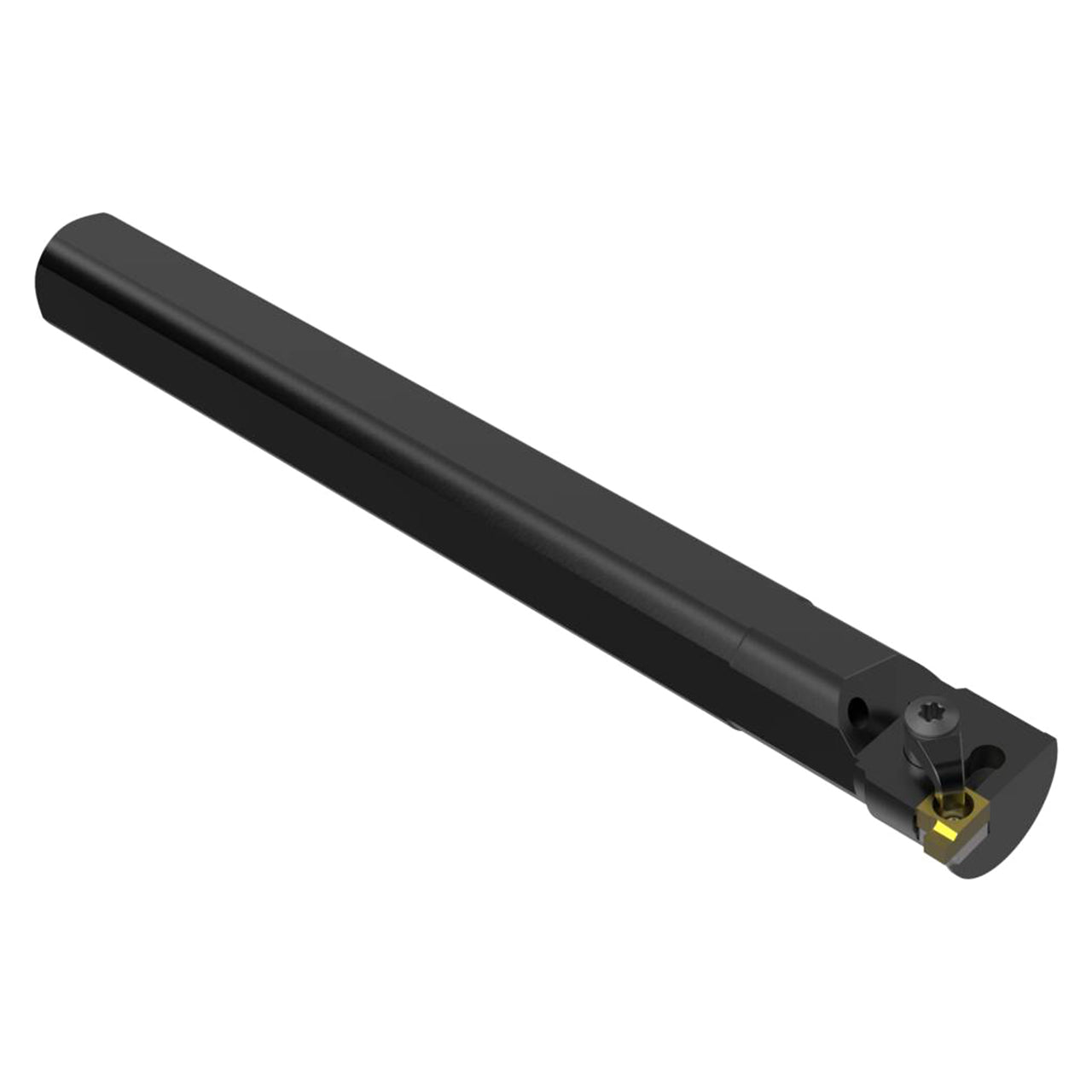

| Product Type | Indexable Grooving Toolholder |
