Product Specifications
| Manufacturer Part Number | 02980639 |
| Cutting Diameter (Decimal Inch) | 1.249" |
| Cutting Diameter (mm) | 31.73mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Body Diameter (Decimal Inch) | 0.656" |
| Body Diameter (mm) | 16.65mm |
| Functional Length (Decimal Inch) | 2.797" |
| Functional Length (mm) | 71.03mm |
| Protruding Length (Decimal Inch) | 1.677" |
| Protruding Length (mm) | 42.58mm |
| Shank Length (Decimal Inch) | 2.539" |
| Shank Length (mm) | 64.50mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Cutting Width (Decimal Inch) | 0.477" |
| Cutting Width (mm) | 12.11mm |
| Maximum Depth of Cut (Decimal Inch) | 0.477" |
| Maximum Depth of Cut (mm) | 12.11mm |
| Maximum Cutting Depth (Decimal Inch) | 0.275" |
| Maximum Cutting Depth (mm) | 6.98mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -14 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 17600 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LNK.0605 / LNK.0805 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Weldon |

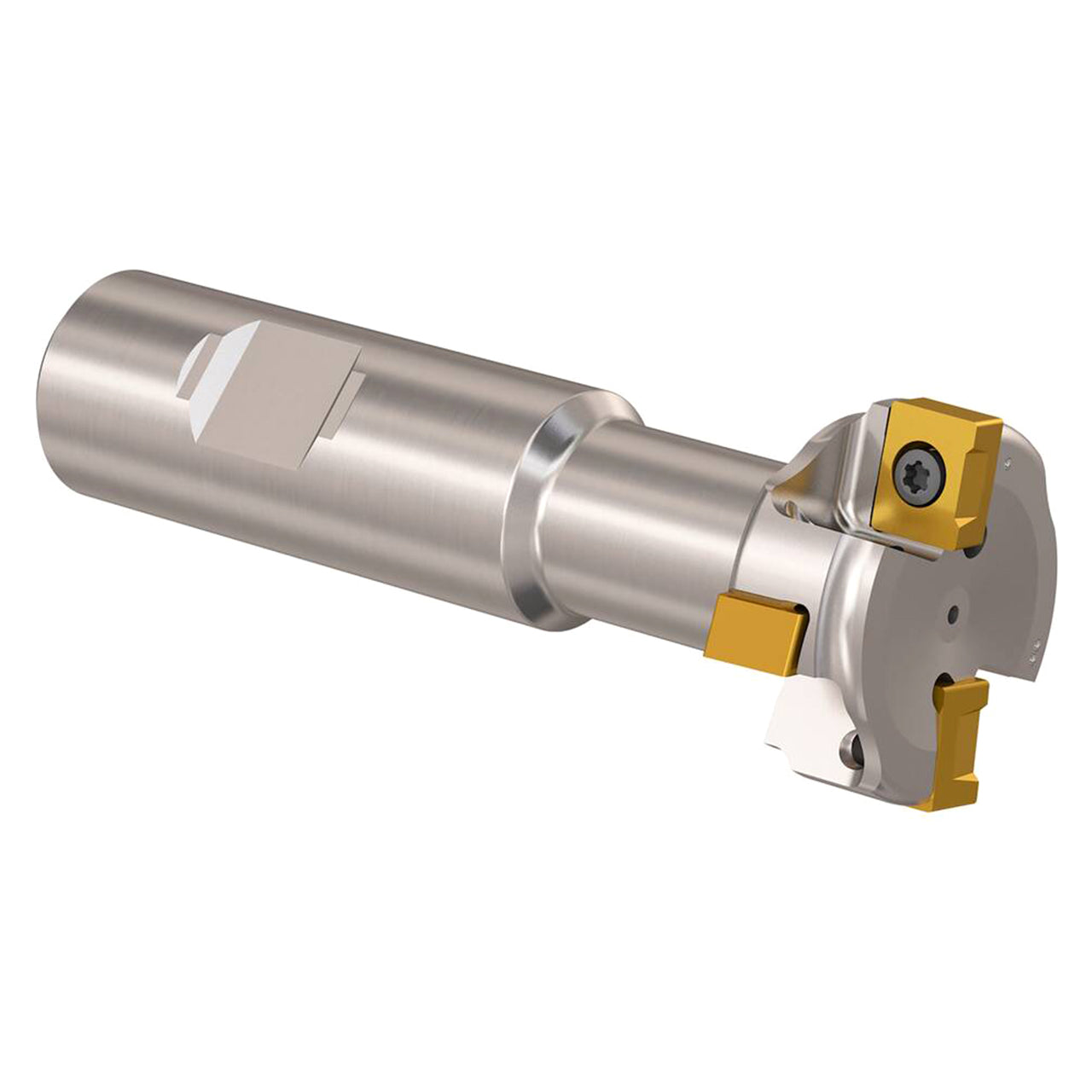

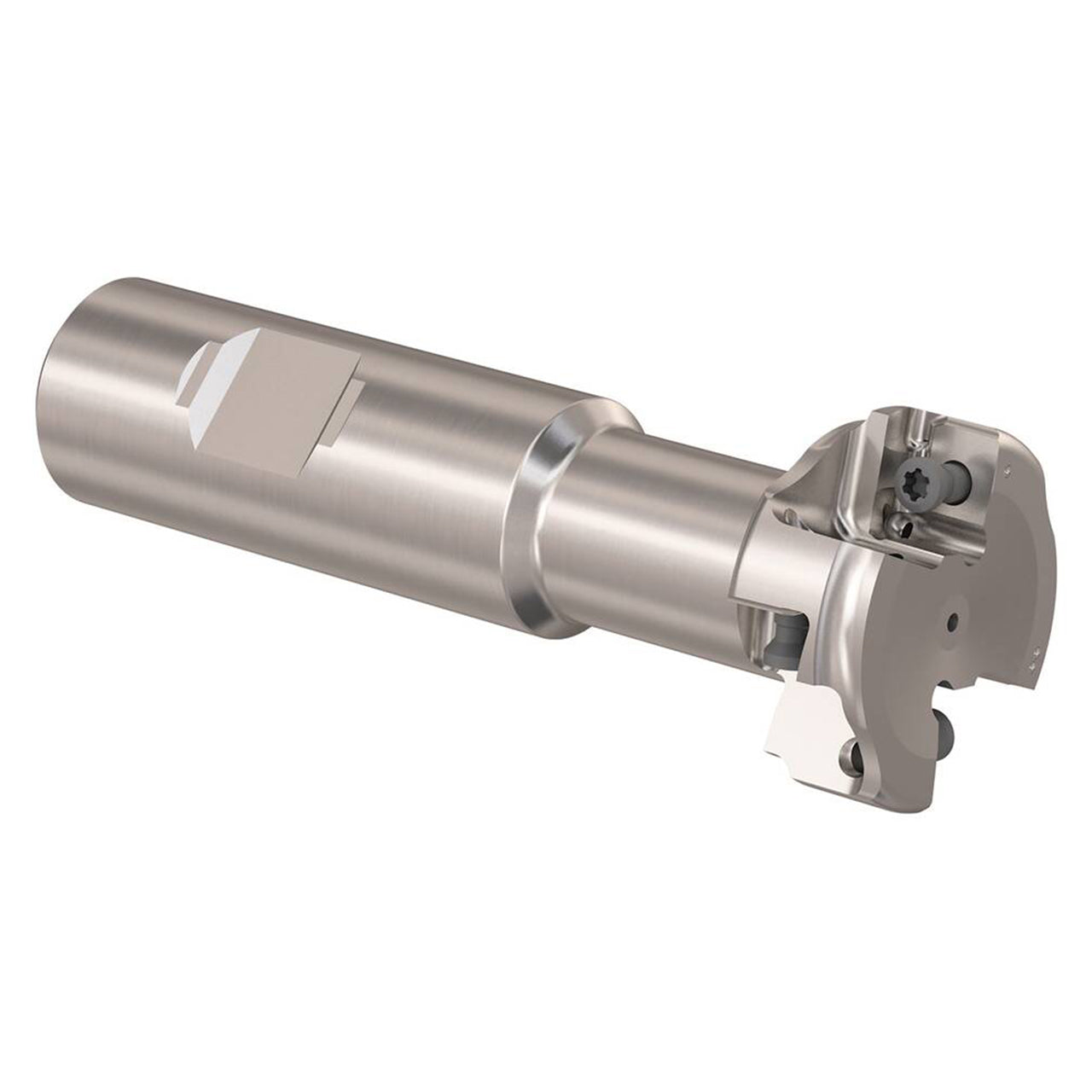

| Product Type | Indexable T-Slot Cutter |
