Product Specifications
| Manufacturer Part Number | 02980627 |
| Cutting Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Body Diameter (mm) | 12.00mm |
| Functional Length (mm) | 56.00mm |
| Protruding Length (mm) | 32.50mm |
| Shank Length (mm) | 49.00mm |
| Overall Length (mm) | 80.00mm |
| Cutting Width (mm) | 10.91mm |
| Maximum Depth of Cut (mm) | 10.91mm |
| Maximum Cutting Depth (mm) | 5.87mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -4.5 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 24500 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | SP..0703 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Weldon |

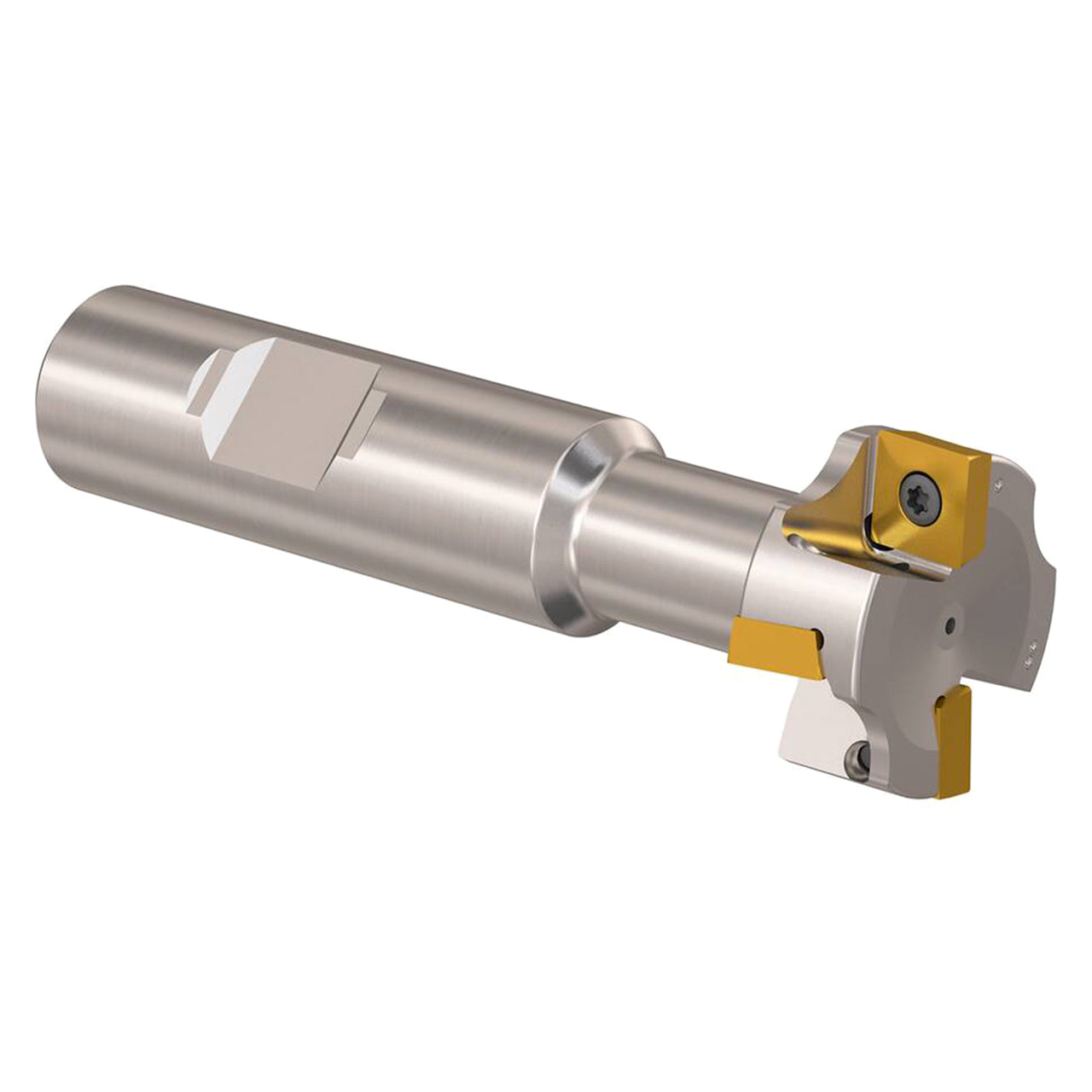

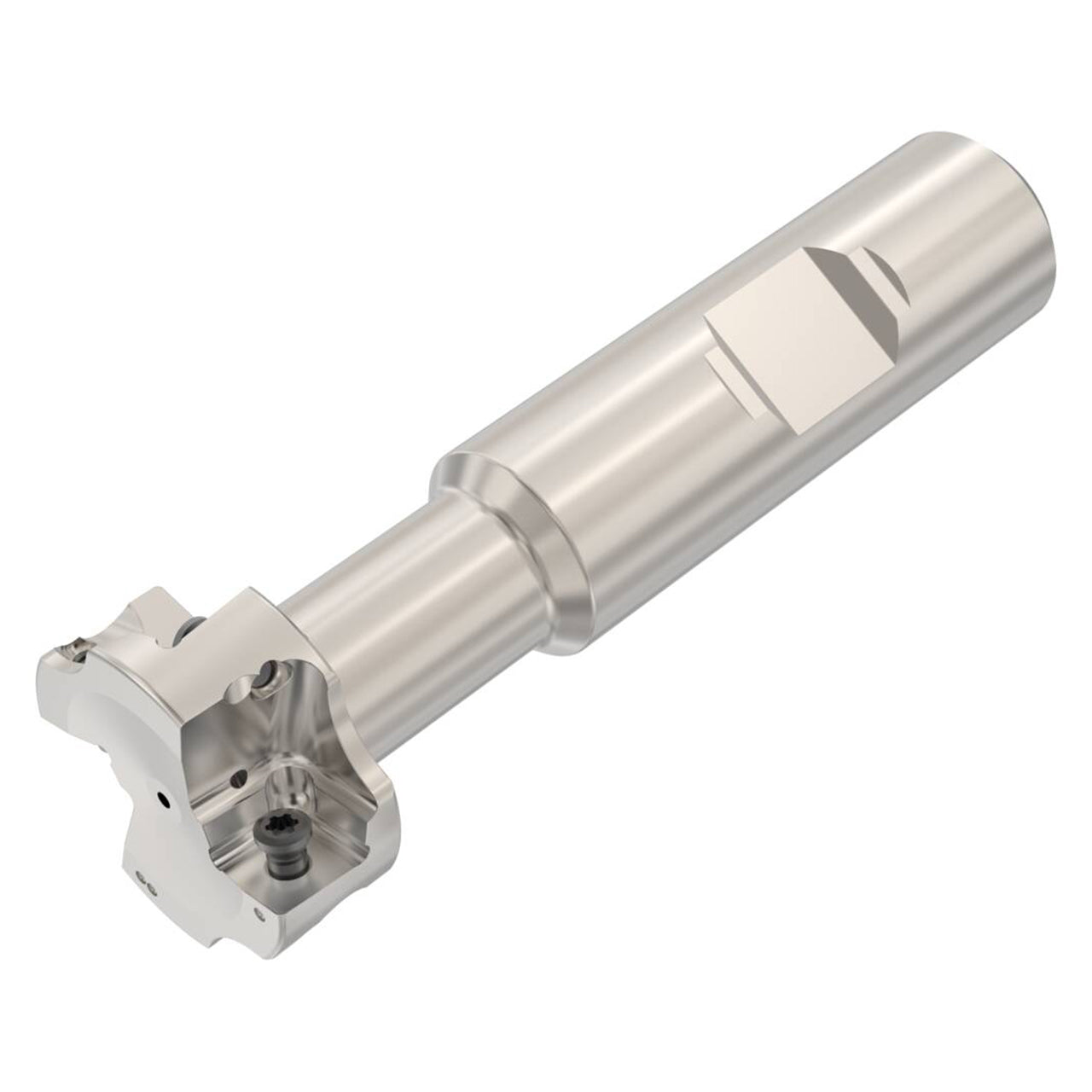

| Product Type | Indexable T-Slot Cutter |
