Product Specifications

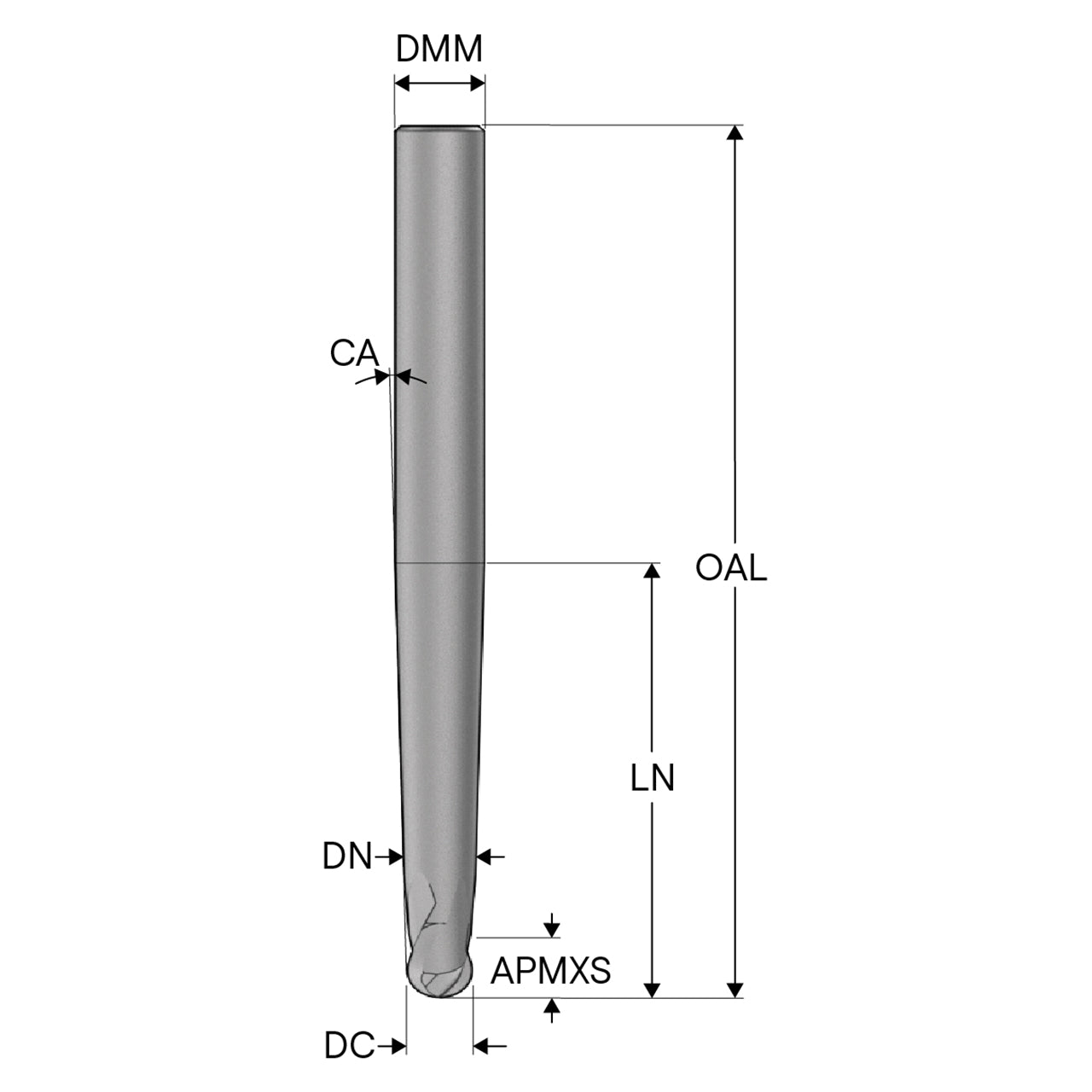

| Manufacturer Part Number | 02970141 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 6.00mm |
| Center Cutting Capability | 1 |
| Cutting Geometry Type | JH112 |
| Coating | HXT |
| Cutting Diameter (mm) | 6.00mm |
| Shank Diameter (mm) | 10.00mm |
| Neck Diameter (mm) | 5.60mm |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 28 Degree |
| Neck Length (mm) | 62.00mm |
| Overall Length (mm) | 125.00mm |
| Cutting Edge Count | 2 |
| Corner Radius (mm) | 3.00mm |
| Shank Type | Cylindrical |
| Product Series | JH112 |

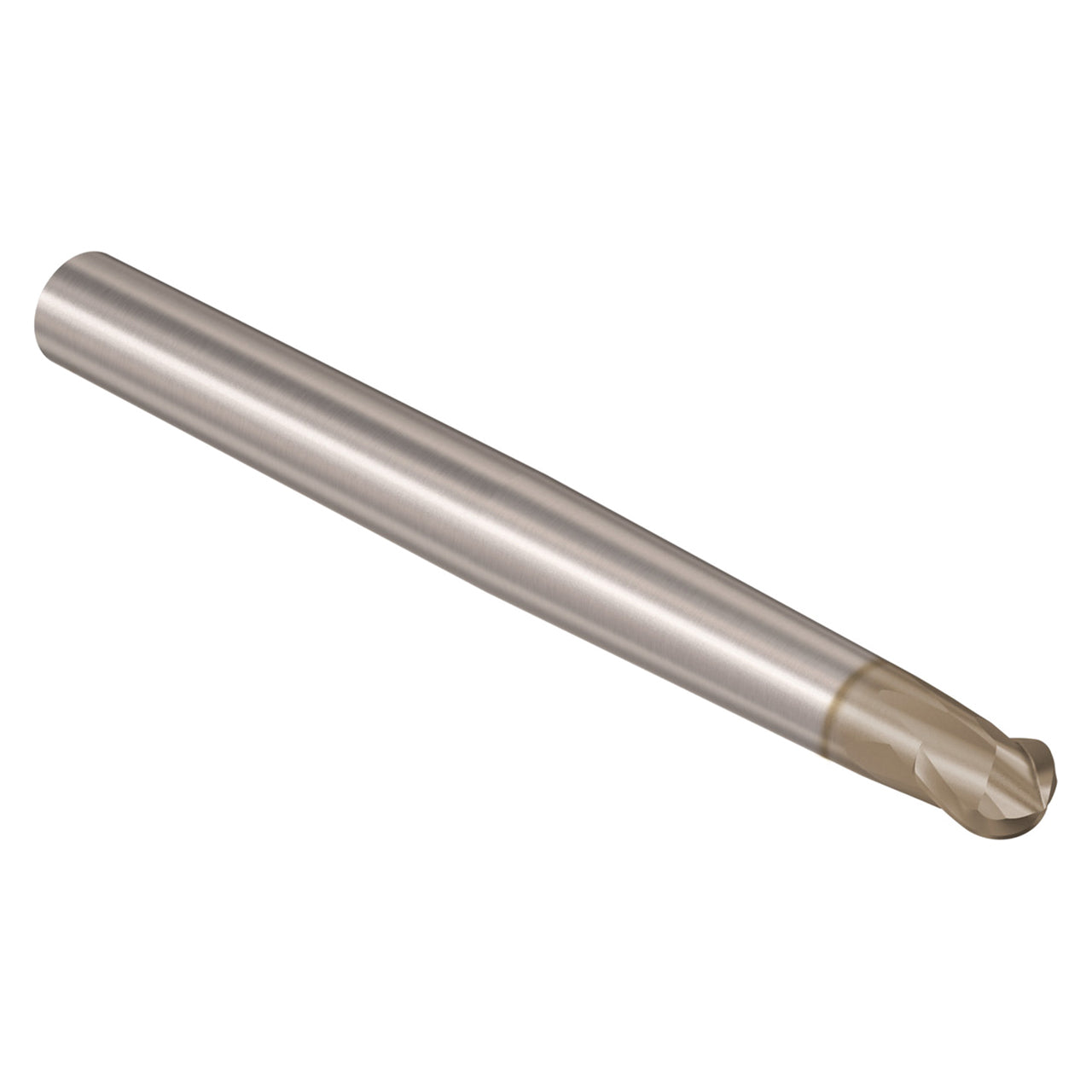

| Product Type | Ball End Mill |
