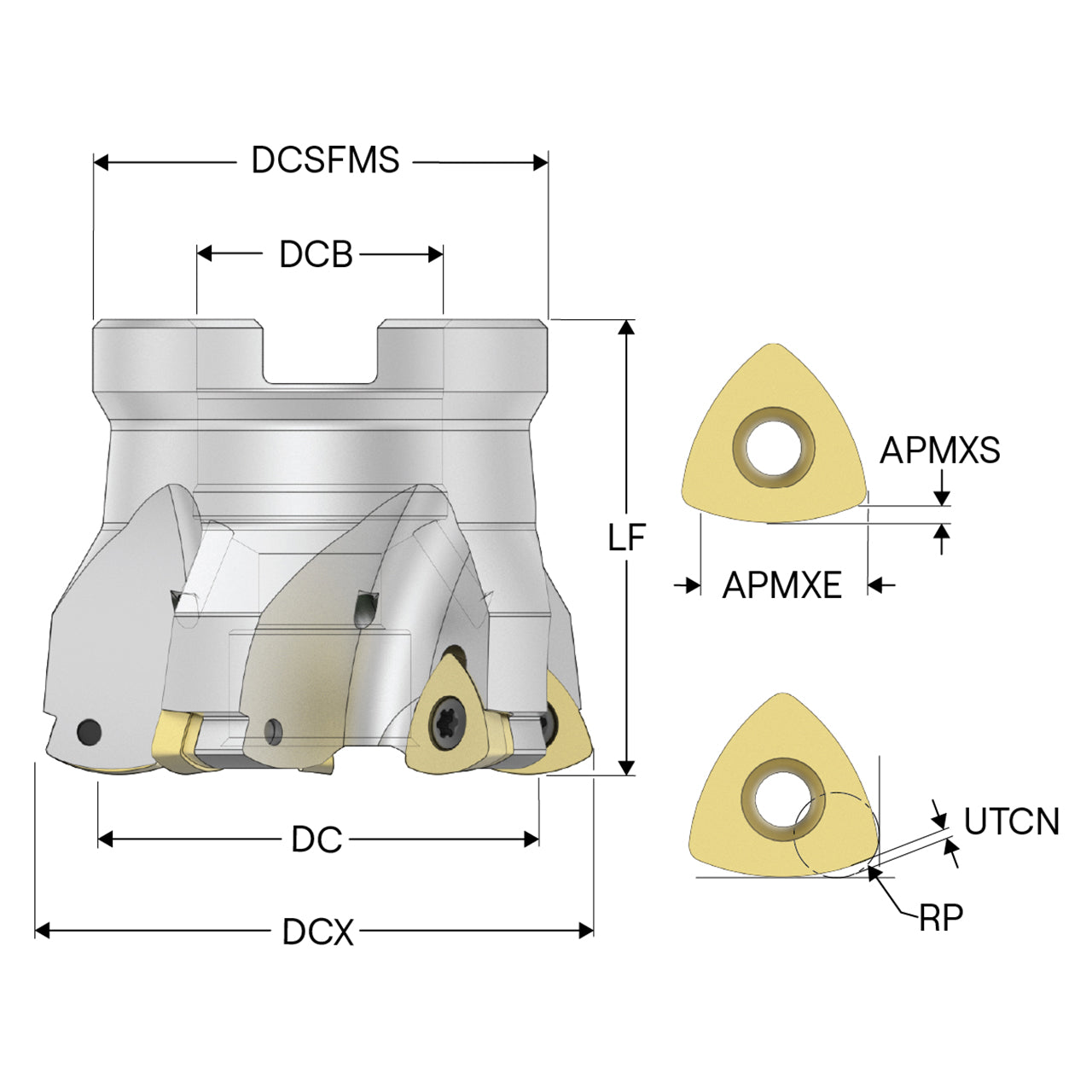

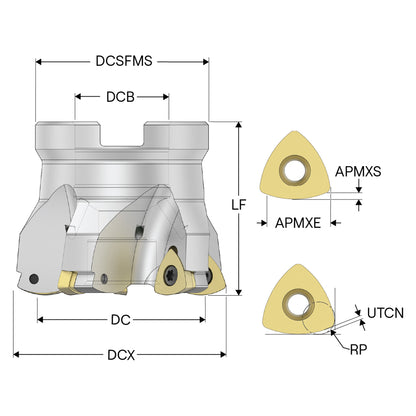

Product Specifications
| Manufacturer Part Number | 02969095 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 1.80mm |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Cutting Diameter (mm) | 68.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 77.00mm |
| Cutting Diameter Maximum (mm) | 84.00mm |
| Functional Length (mm) | 50.00mm |
| Rotational Speed Maximum | 10000 rpm |
| Shank Type | Arbor |
| Uncut Thickness (mm) | 0.97mm |
| Peripheral Effective Cutting Edge Count | 6 |
| Product Series | R220.21 |

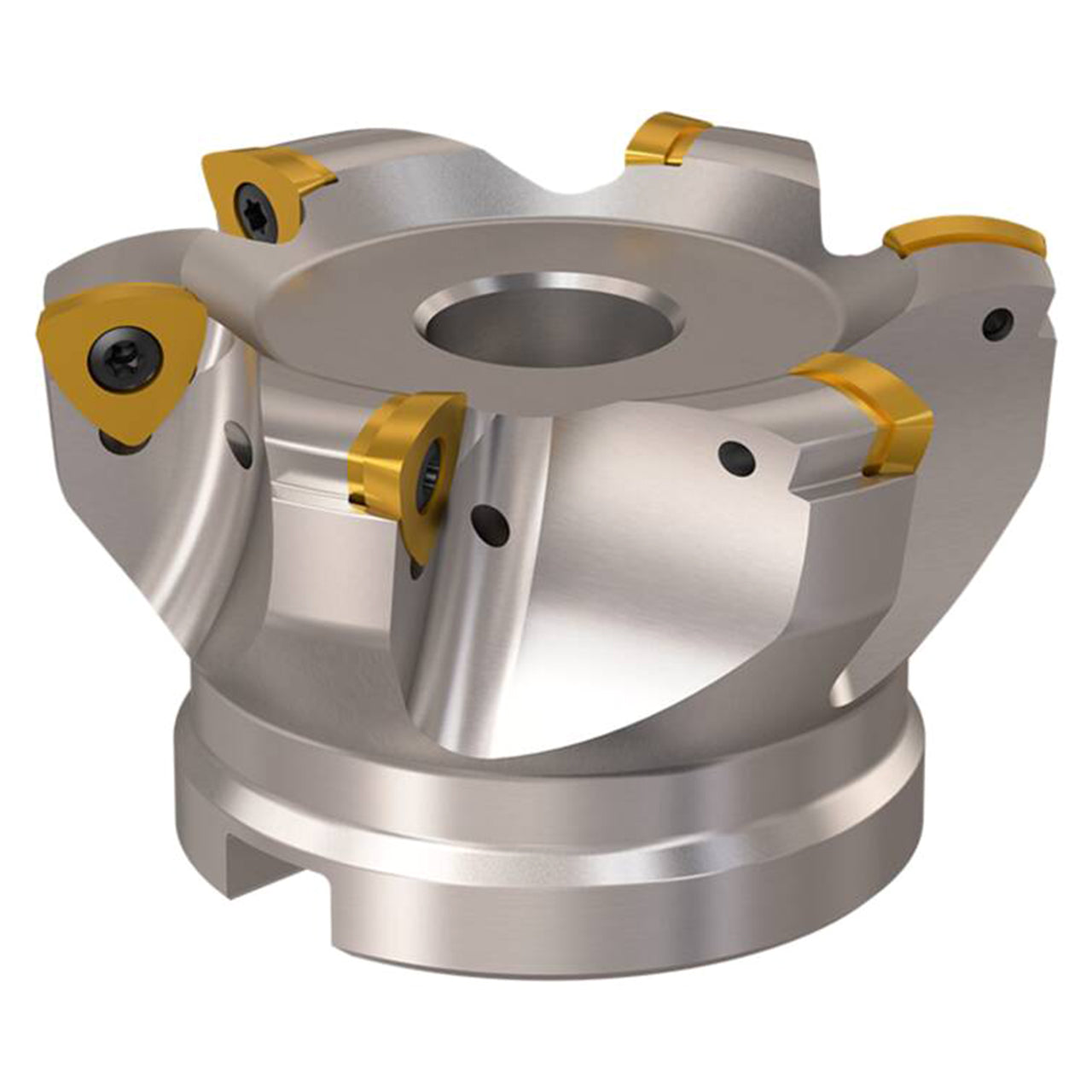

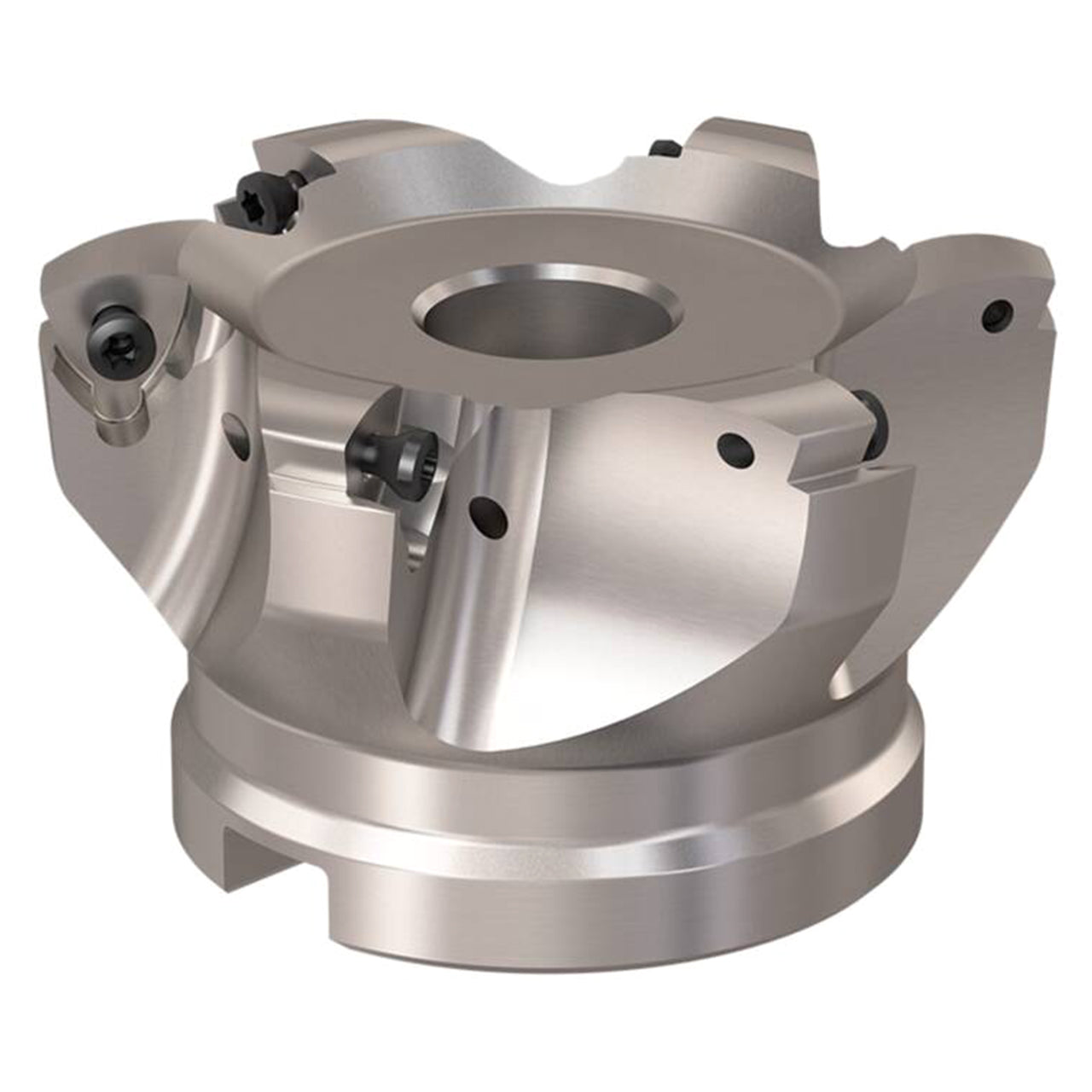

| Product Type | Indexable High-Feed Face Mill |
