Product Specifications

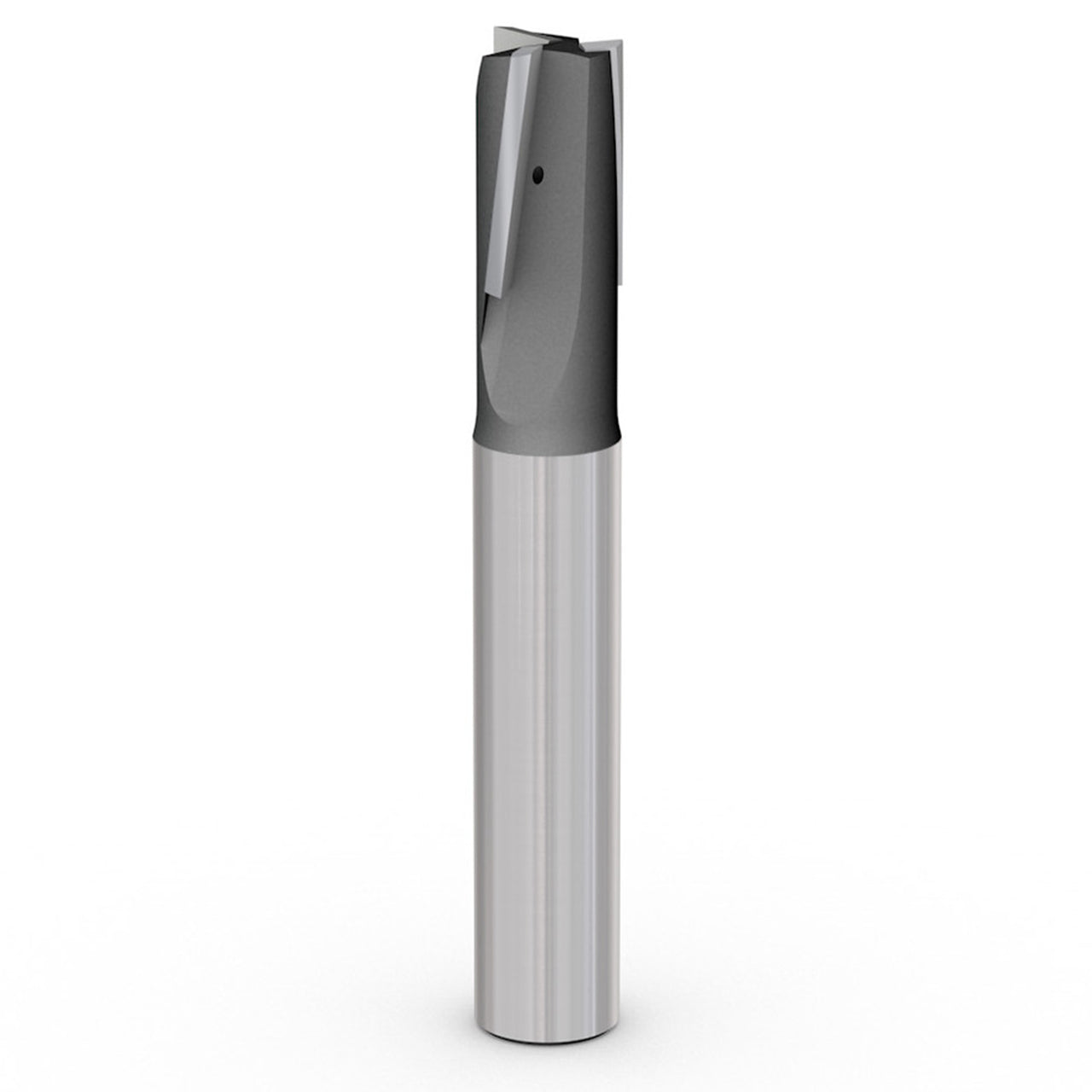

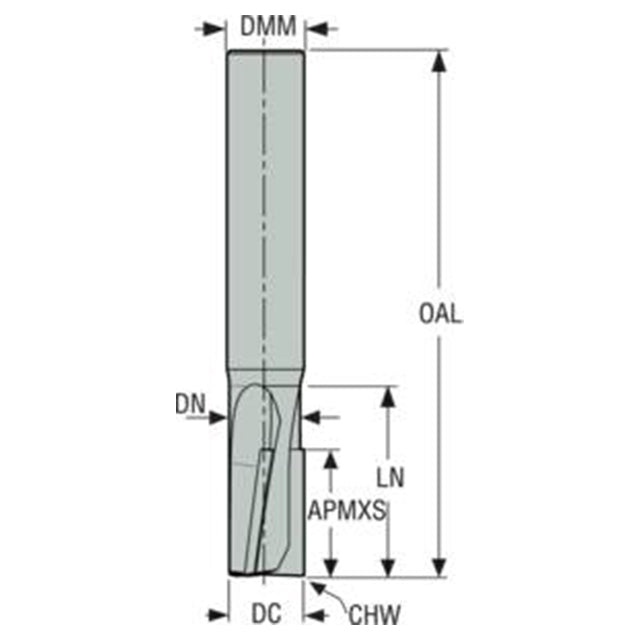

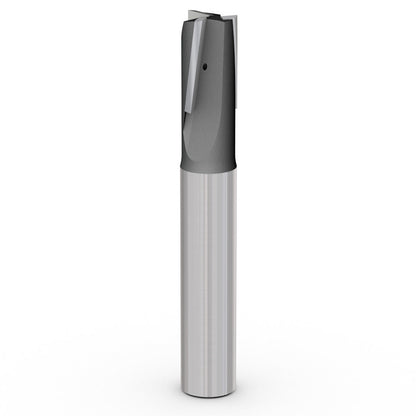

| Manufacturer Part Number | 02968191 |
| Cutting Diameter (mm) | 8.00mm |
| Cutting Diameter 1 (mm) | 8.00mm |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (mm) | 8.00mm |
| Neck Diameter (mm) | 7.30mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 16.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.40mm |
| Overall Length (mm) | 64.00mm |
| Neck Length (mm) | 20.00mm |
| Neck Length 1 (mm) | 20.00mm |
| Cutting Edge Effective Length (mm) | 15.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | JPD880 |
| Cutting Geometry Type Technical | JPD880 |
| Face Cutting Edge Count | 3 |
| Flute Helix Direction | Straight |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | Yes |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Number of Flute | 3 |
| Material | PCD |
| Coating | Uncoated |
| Product Type | Straight Router Bit |
