Product Specifications

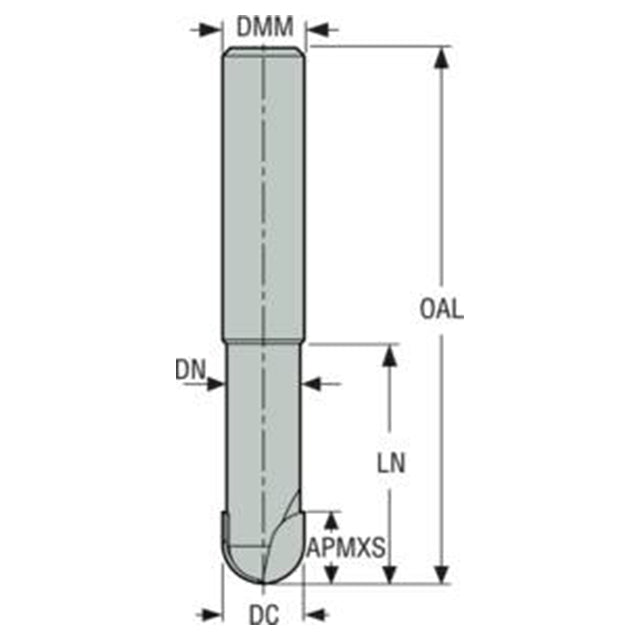

| Manufacturer Part Number | 02968185 |
| Cutting Diameter (mm) | 8.00mm |
| Cutting Diameter 1 (mm) | 8.00mm |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (mm) | 8.00mm |
| Neck Diameter (mm) | 7.20mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 14.40mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.40mm |
| Overall Length (mm) | 64.00mm |
| Neck Length (mm) | 24.00mm |
| Neck Length 1 (mm) | 24.00mm |
| Cutting Edge Effective Length (mm) | 8.00mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Corner Radius (mm) | 4.00mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | JPD850 |
| Cutting Geometry Type Technical | JPD850 |
| Face Cutting Edge Count | 2 |
| Flute Helix Direction | Straight |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | Yes |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 2 |
| Material | PCD |
| Coating | Uncoated |

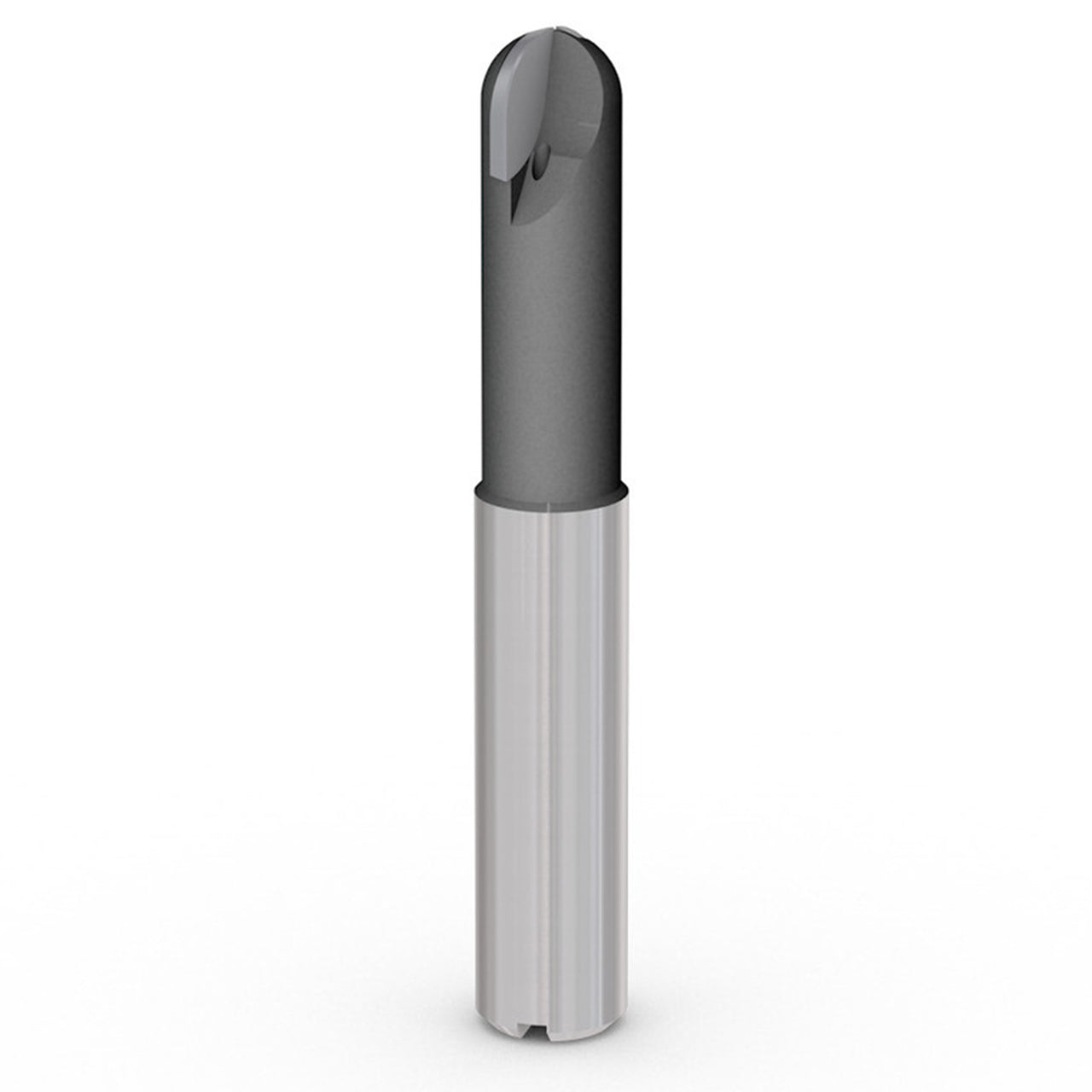

| Product Type | Ball End Mill |
