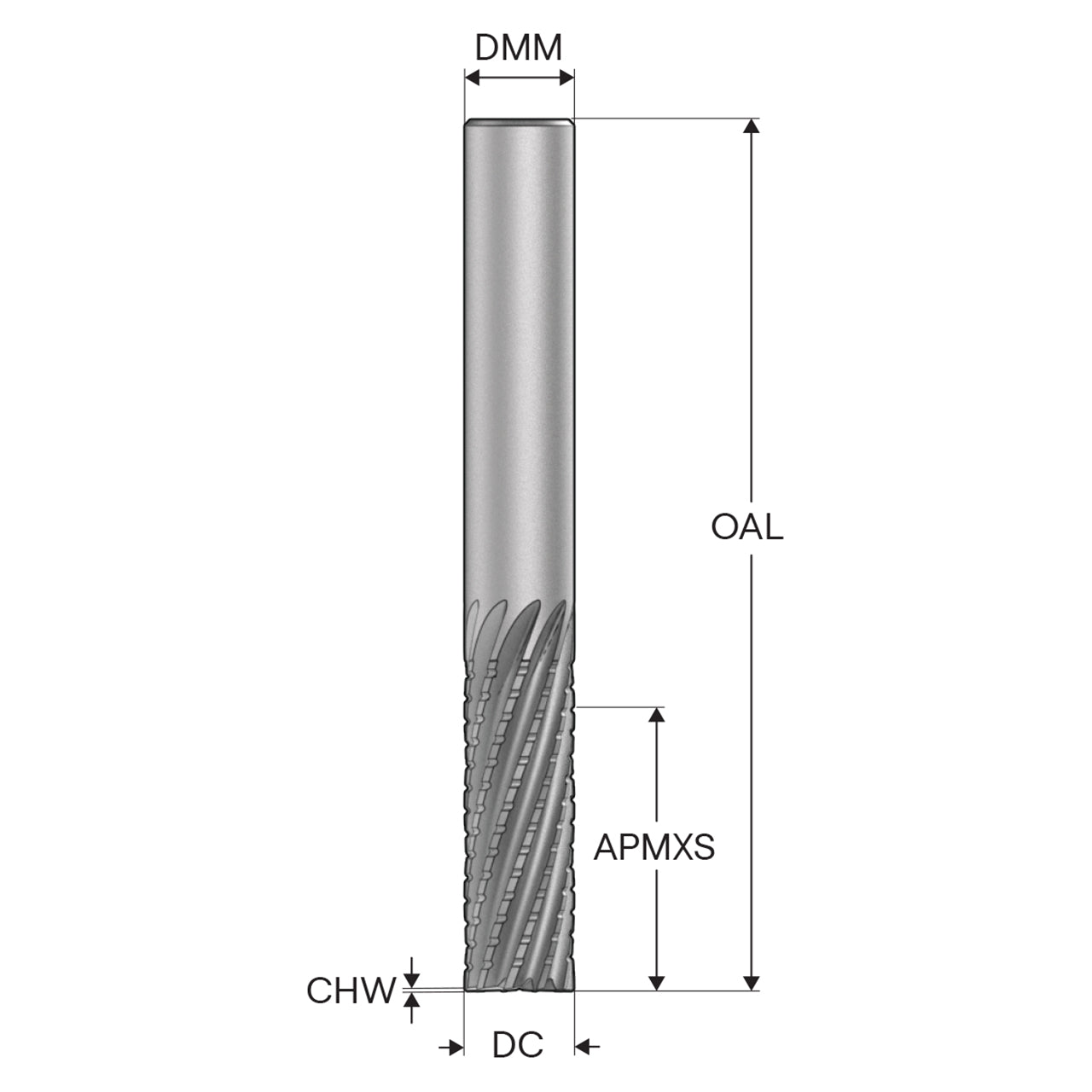

Product Specifications
| Manufacturer Part Number | 02968160 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 30.00mm |
| Cutting Geometry Type | JC875 |
| Corner chamfer width (mm) | 0.10mm |
| Coating | DURA |
| Cutting Diameter (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Face Cutting Edge Count | 10 |
| Flute Helix Angle (Degree) | 20 Degree |
| Corner Chamfer Angle (Degree) | 45.00 Degree |
| Overall Length (mm) | 80.00mm |
| Cutting Edge Count | 10 |
| Shank Type | Cylindrical |
| Product Series | JC875 |

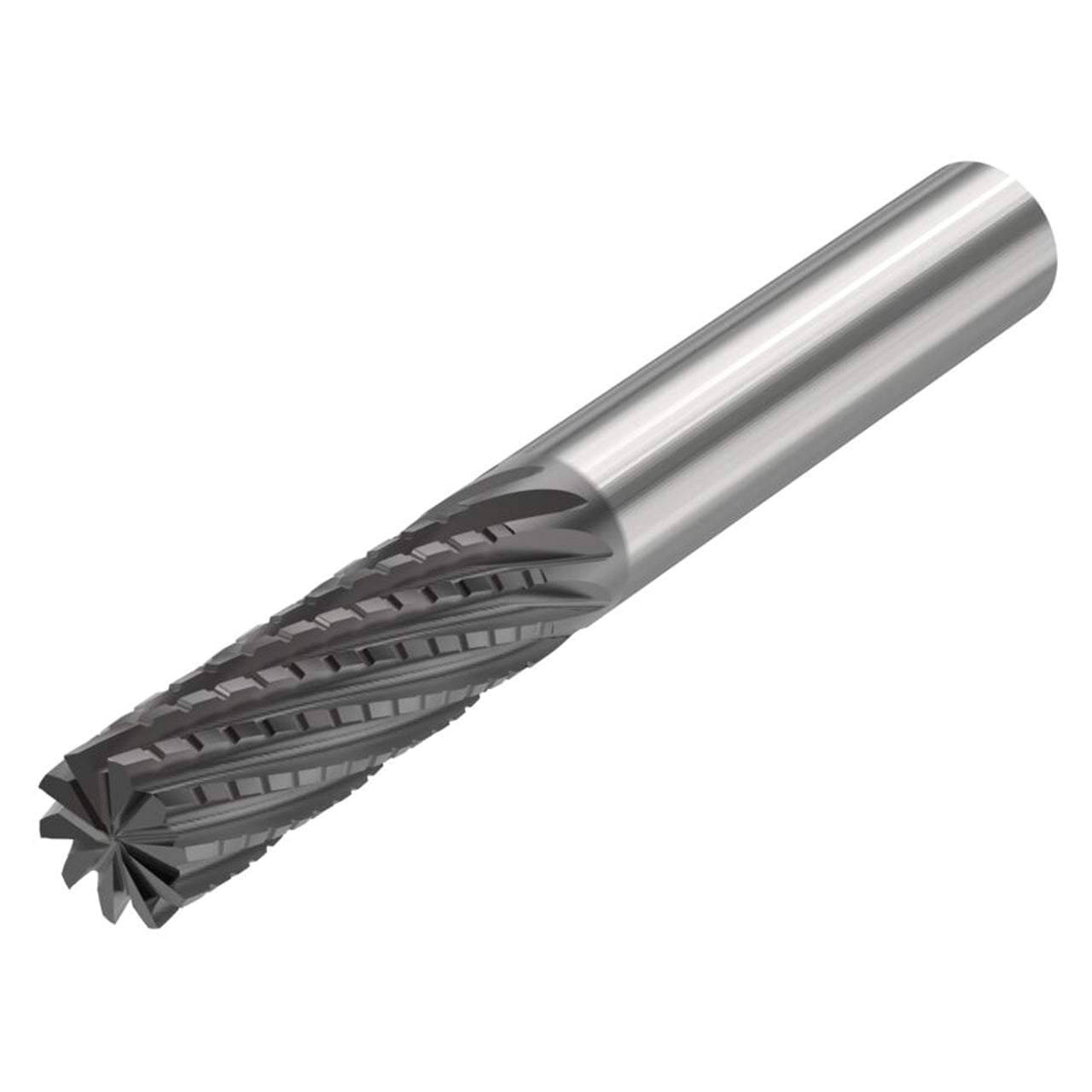

| Product Type | Corner Chamfer End Mill |
