Product Specifications
| Manufacturer Part Number | 02960771 |
| Fixing Hole Diameter (Decimal Inch) | 0.359" |
| Fixing Hole Diameter (mm) | 9.12mm |
| Inscribed Circle Diameter (Decimal Inch) | 1.000" |
| Inscribed Circle Diameter (mm) | 25.40mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.906" |
| Cutting Edge Effective Length (mm) | 23.00mm |
| Corner Radius (Decimal Inch) | 0.095" |
| Corner Radius (mm) | 2.40mm |
| Insert Thickness (Decimal Inch) | 0.313" |
| Insert Thickness (mm) | 7.94mm |
| Cutting Edge Count | 4 |
| Insert Size And Shape | SN2507 |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Hand | Neutral |
| Material | Carbide |

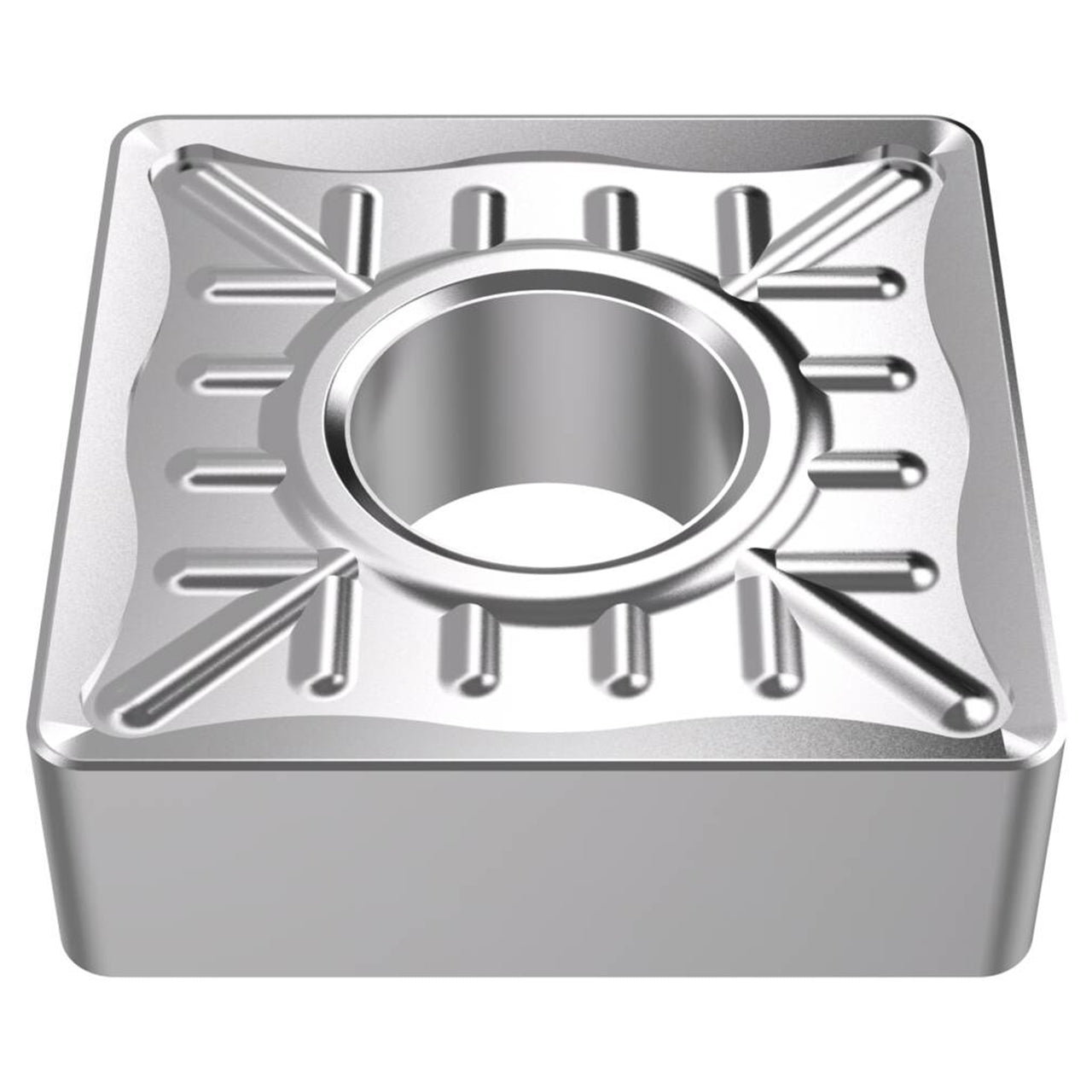

| Product Type | Turning Insert |
