Seco Tools

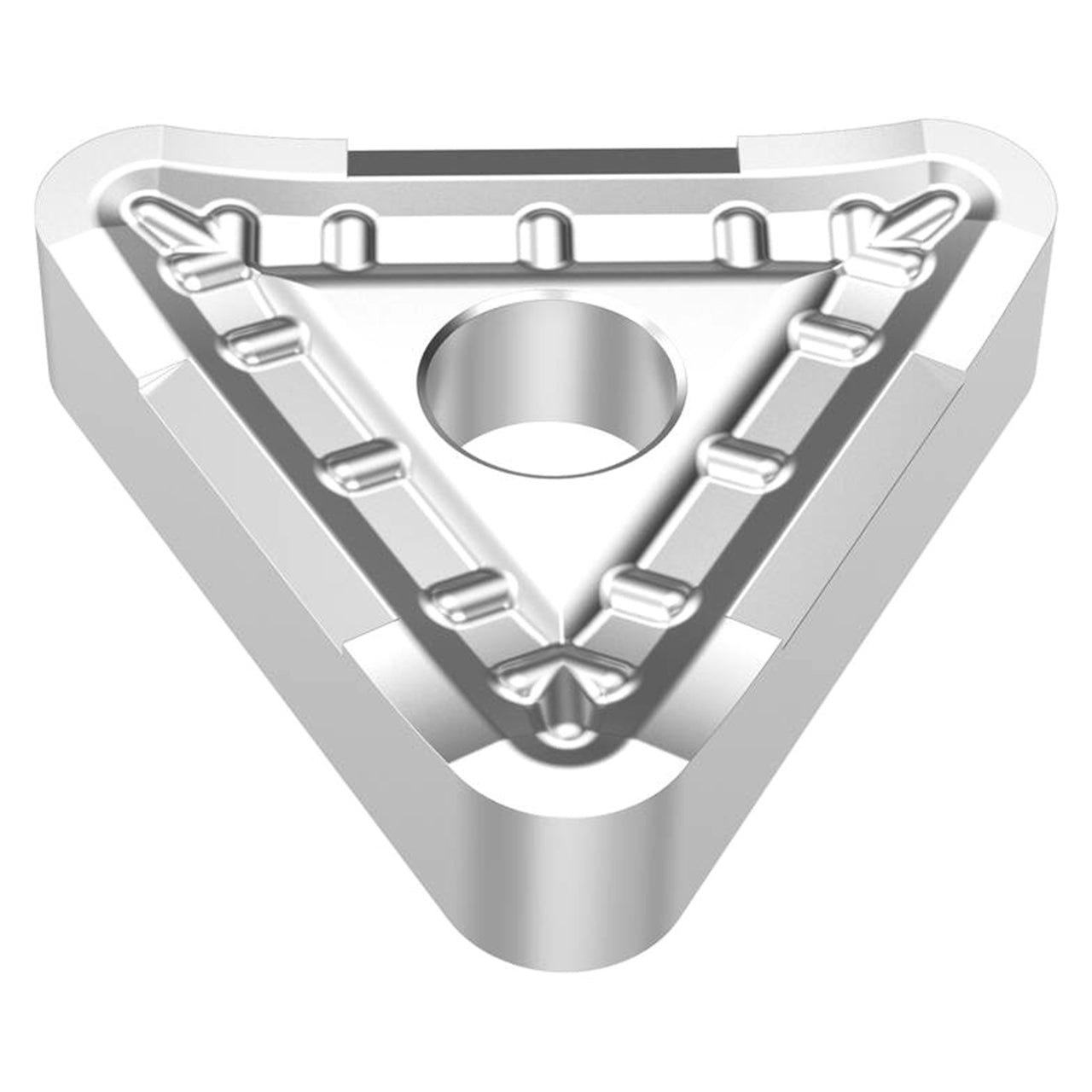

Seco Tools 02960601 | TNMM220412-R4 0.500" Inscribed Circle Diameter x 0.047" Radius x 0.187" Insert Thickness 3 Cutting Edge CVD Coated Carbide TP1501 Grade TNMM Turning Insert

Seco Tools 02960601 | TNMM220412-R4 0.500" Inscribed Circle Diameter x 0.047" Radius x 0.187" Insert Thickness 3 Cutting Edge CVD Coated Carbide TP1501 Grade TNMM Turning Insert

SKU: 23283380

$21.86 USD
$21.86 USD $21.86 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

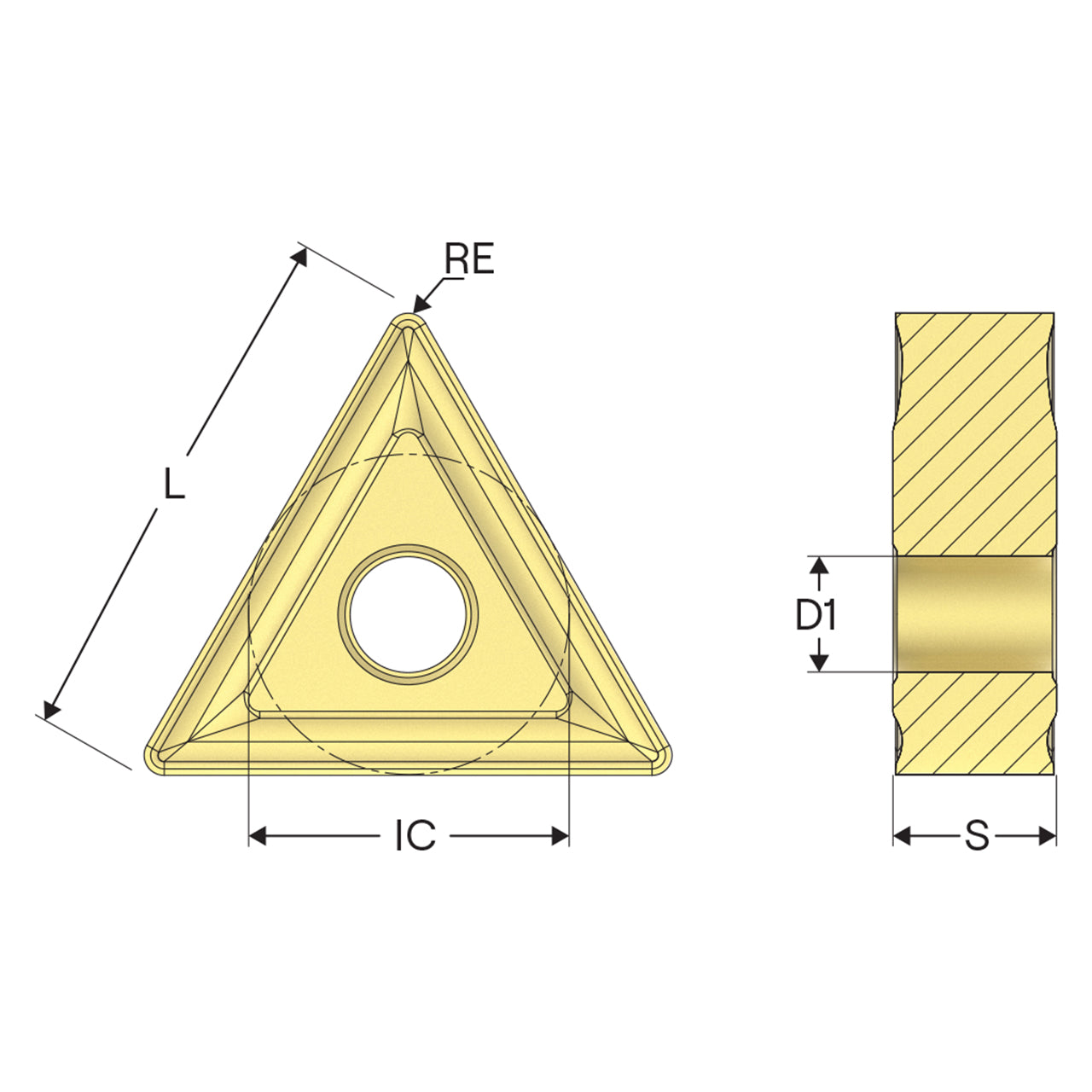

Product Specifications
Manufacturer Part Number 02960601
Cutting edge count 3
Grade Type Carbide CVD
Inscribed Circle Diameter (Decimal Inch) 0.500"
Insert Hand Neutral
Cutting Edge Effective Length (Decimal Inch) 0.752"
Corner Radius (Decimal Inch) 0.047"
Insert Thickness (Decimal Inch) 0.187"
Insert seat size code 22
Product Series TNMM
Product Type Turning Insert
