Product Specifications

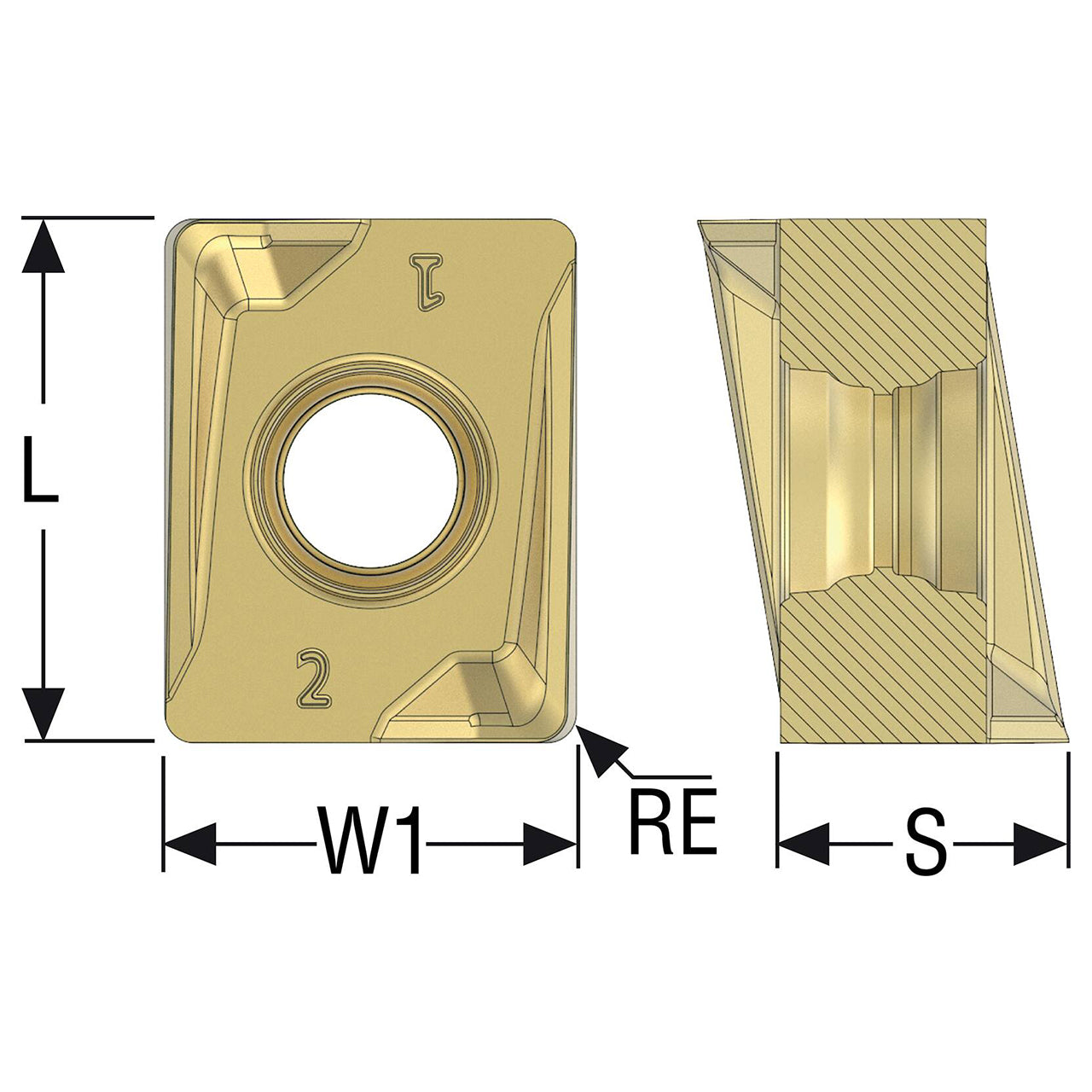

| Manufacturer Part Number | 02951222 |
| Fixing Hole Diameter (Decimal Inch) | 0.181" |
| Fixing Hole Diameter (mm) | 4.60mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.492" |
| Cutting Edge Effective Length (mm) | 12.50mm |
| Corner Chamfer Width (mm) | 0.10mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.304" |
| Insert Thickness (mm) | 7.72mm |
| Insert Thickness 1 (Decimal Inch) | 0.217" |
| Insert Thickness 1 (mm) | 5.51mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | M04 |
| Pocket Seat Code of The Cutter | LNEX1406 |
| Insert Size And Shape | LNEX1406 |
| Insert Rake Angle (Degree) | 26 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

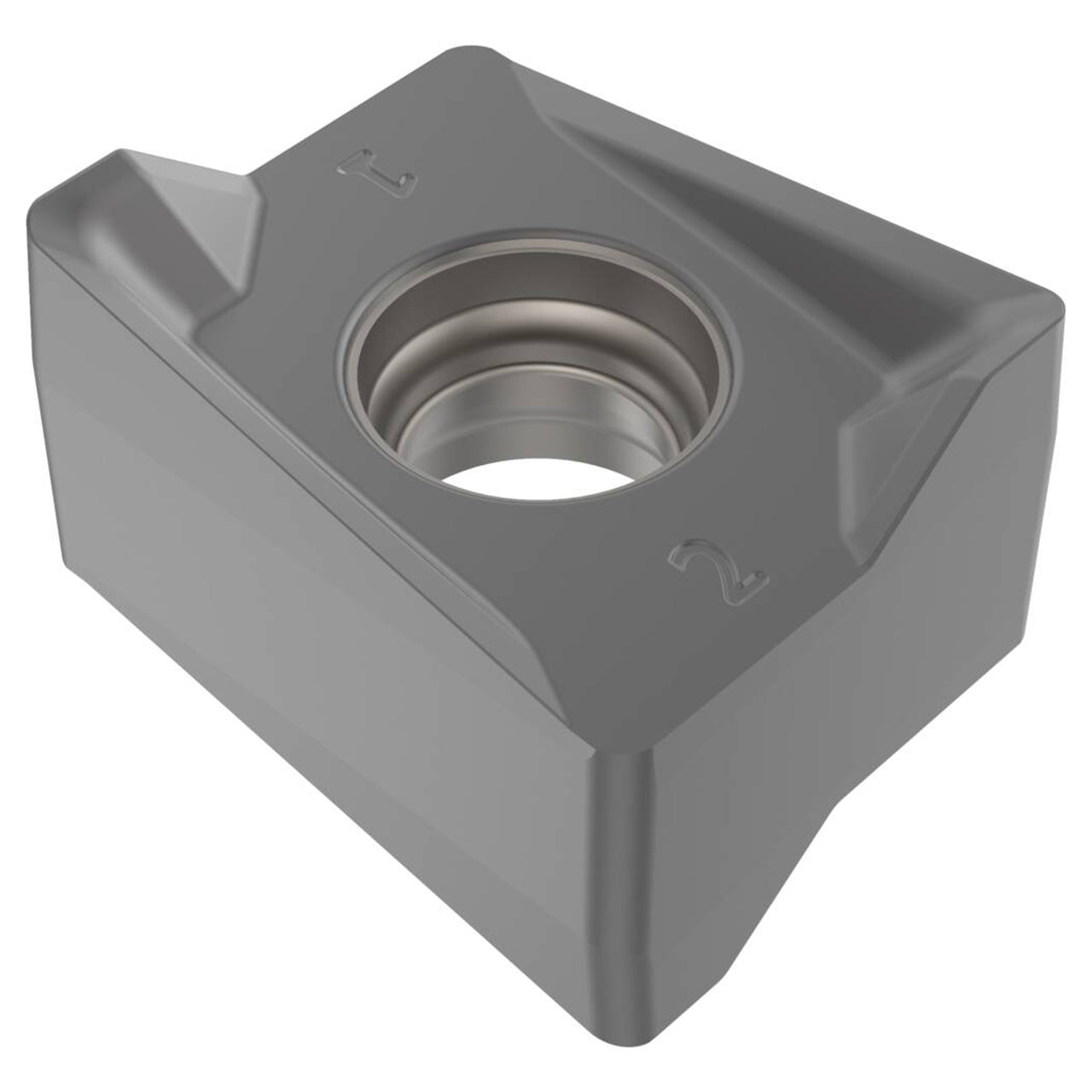

| Product Type | Square Shoulder Milling Insert |
