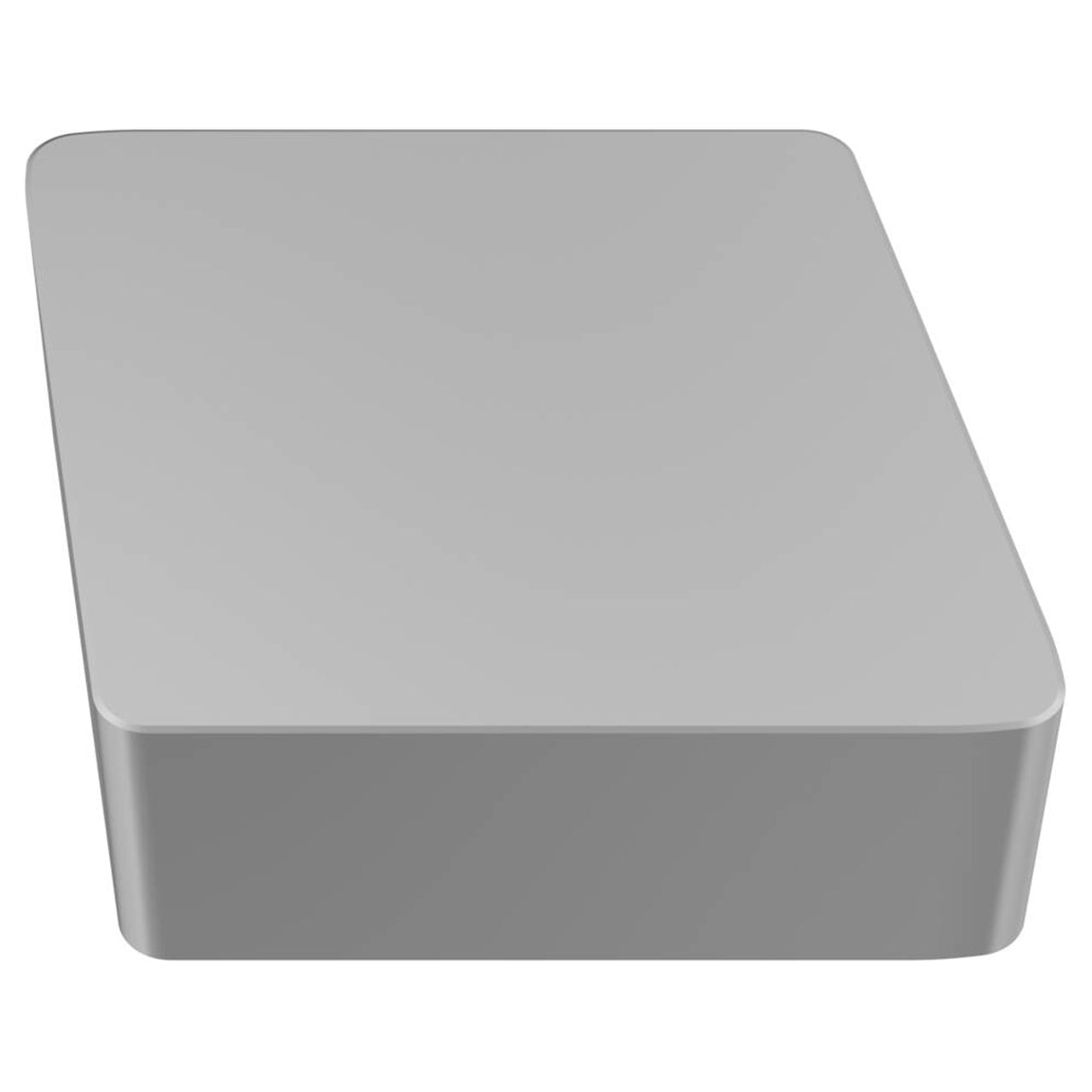

Product Specifications
| Manufacturer Part Number | 02944280 |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.152" |
| Cutting Edge Effective Length (mm) | 3.87mm |
| Corner Chamfer Width (mm) | 0.04mm |
| Corner Radius (Decimal Inch) | 0.063" |
| Corner Radius (mm) | 1.60mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Cutting Edge Condition Code | S |
| Cutting Edge Count | 8 |
| Insert Size And Shape | CN1204 |
| Insert Included Angle (Degree) | 80 Degree |
| Material | PCBN |
| Product Type | Turning Insert |
