Product Specifications
| Manufacturer Part Number | 02928082 |
| Cutting Diameter (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Thread Diameter Size | M20 |
| Functional Length (mm) | 65.00mm |
| Overall Length (mm) | 92.00mm |
| Maximum Depth of Cut (mm) | 44.00mm |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Maximum Rotational Speed (rpm) | 5000 rpm |
| Sphere Angle (Degree) | 180 Degree |
| Insert Shape Code | 218.20 |
| Shank Type | Combimaster |

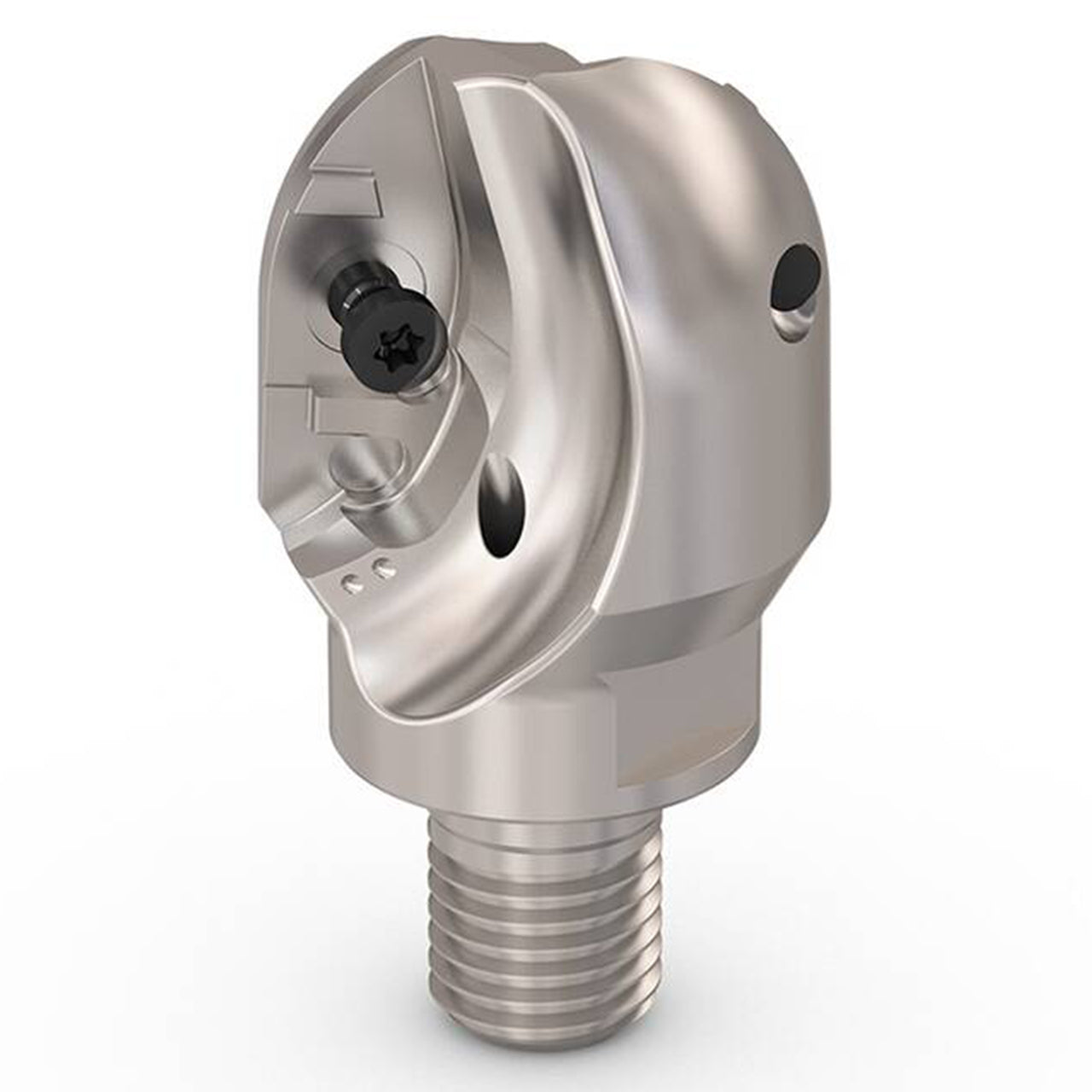

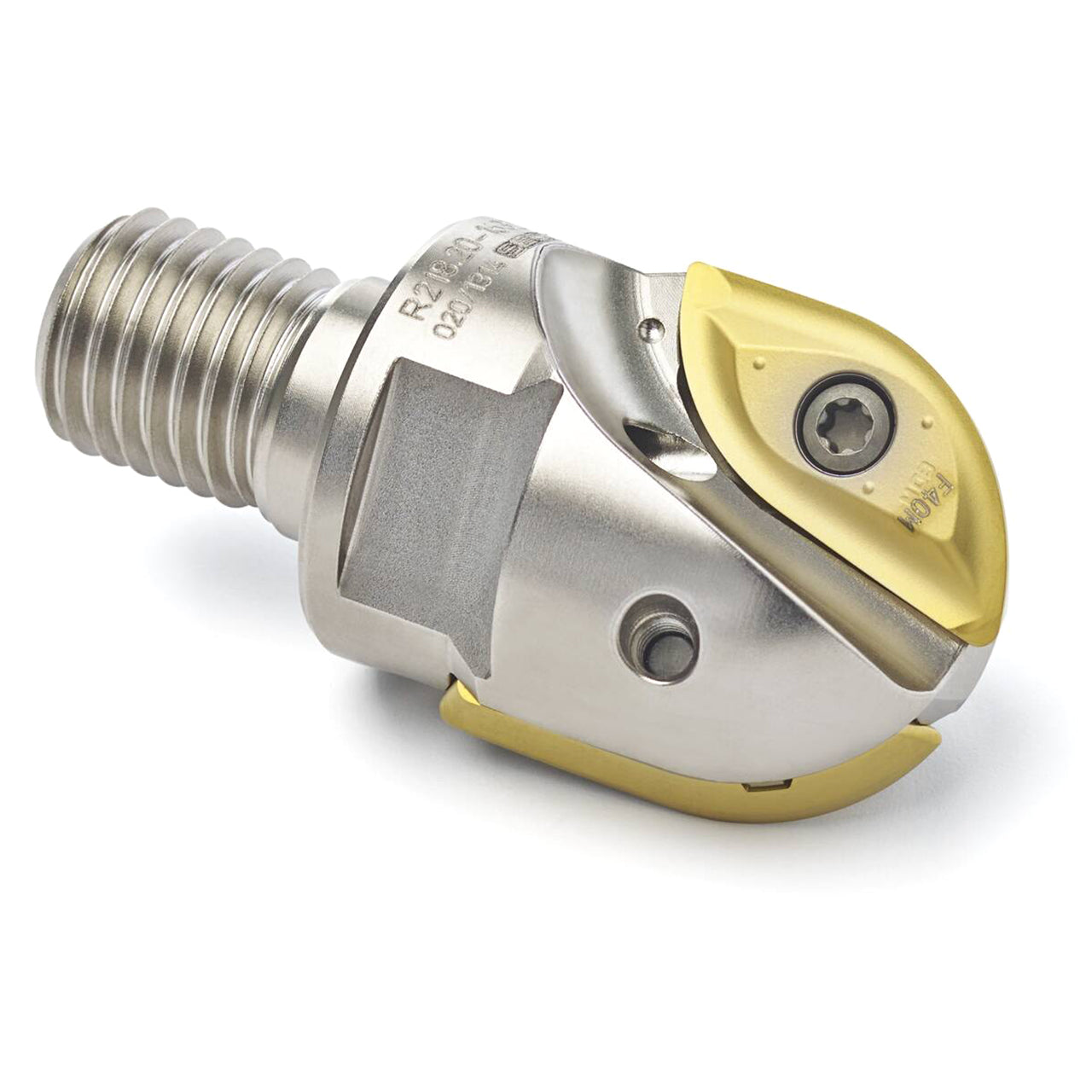

| Product Type | Indexable Ball Nose End Mill |
