Product Specifications
| Manufacturer Part Number | 02928069 |
| Cutting Diameter (Decimal Inch) | 1.181" |
| Cutting Diameter (mm) | 30.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.437" |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Thread Diameter Size | M20 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.681" |
| Minimum Helical Interpolation Hole Diameter (mm) | 68.10mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 2.638" |
| Overall Length (mm) | 67.00mm |
| Maximum Depth of Cut (mm) | 0.80mm |
| Maximum Depth of Cut (Decimal Inch) | 0.032" |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Programming Radius (Decimal Inch) | 0.071" |
| Programming Radius (mm) | 1.80mm |
| Uncut Thickness (Decimal Inch) | 0.0177 |
| Uncut Thickness (mm) | 0.45 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Maximum Ramping Angle (Degree) | 0.9 Degree |
| Maximum Rotational Speed (rpm) | 24000 rpm |
| Insert Shape Code | L |
| Shank Type | Combimaster |

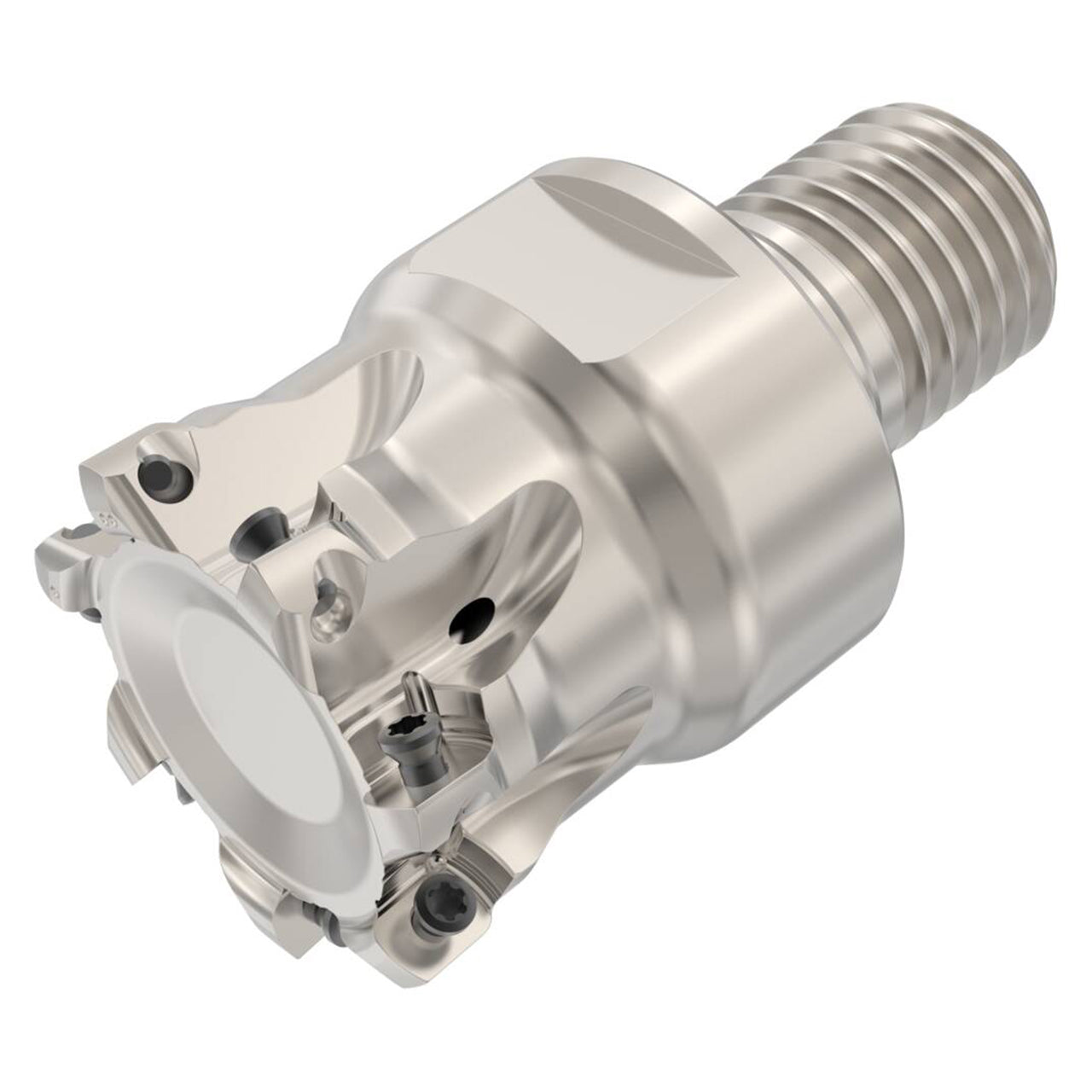

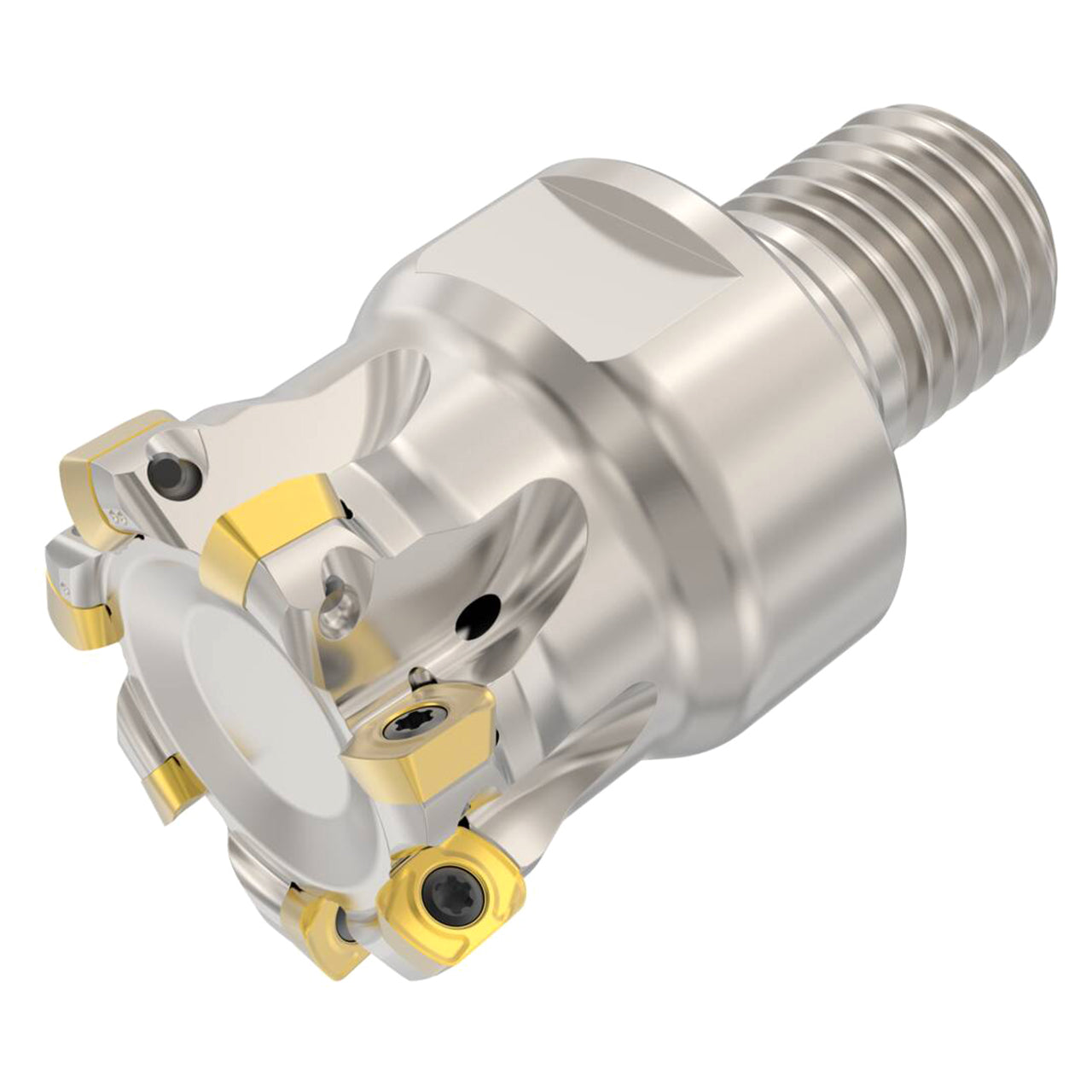

| Product Type | Indexable High-Feed End Mill |
