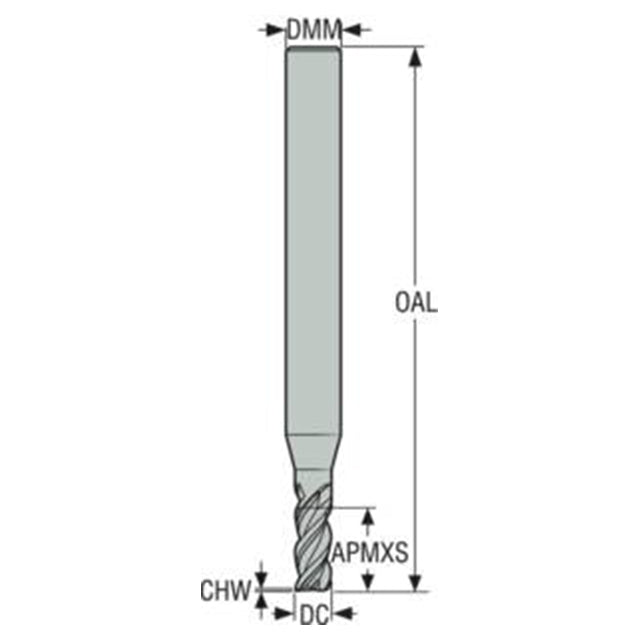

Product Specifications
| Manufacturer Part Number | 02927301 |
| Cutting Diameter (mm) | 1.00mm |
| Cutting Diameter 1 (mm) | 1.00mm |
| Connection Diameter Machine Side (mm) | 3.00mm |
| Shank Diameter (mm) | 3.00mm |
| Neck Diameter (mm) | 1.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 1.98mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 1.30mm |
| Overall Length (mm) | 38.00mm |
| Neck Length (mm) | 3.95mm |
| Neck Length 1 (mm) | 3.95mm |
| Cutting Edge Effective Length (mm) | 2.00mm |
| Insert Width (Decimal Inch) | 0.271" |
| Insert Width (mm) | 6.87mm |
| Maximum Depth of Cut (mm) | 2.00mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | JS513 |
| Cutting Geometry Type Technical | JS513_1 |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 46 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 8 Degree |
| Axial Rake Angle (Degree) | 46 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Number of Flute | 3 |
| Material | Carbide |
| Coating | NXT |

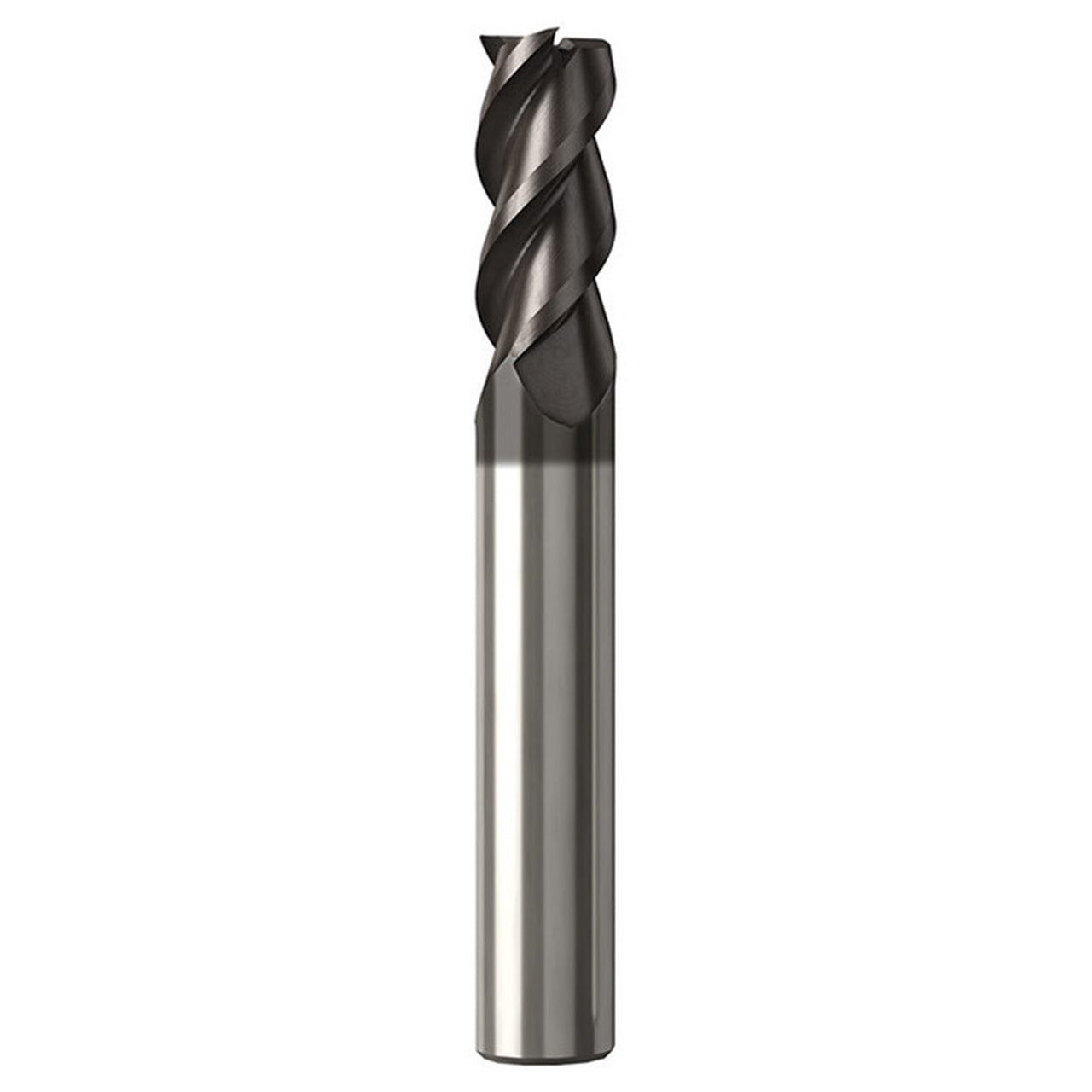

| Product Type | Corner Chamfer End Mill |
