Product Specifications
| Manufacturer Part Number | 02926006 |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Connection Bore Diameter (Decimal Inch) | 1.102" |
| Connection Bore Diameter (mm) | 28.00mm |
| Body Length (Decimal Inch) | 3.661" |
| Body Length (mm) | 93.00mm |
| Functional Length (Decimal Inch) | 4.724" |
| Functional Length (mm) | 120.00mm |
| Overall Length (Decimal Inch) | 7.299" |
| Overall Length (mm) | 185.40mm |
| Data Chip Provision | 1 |

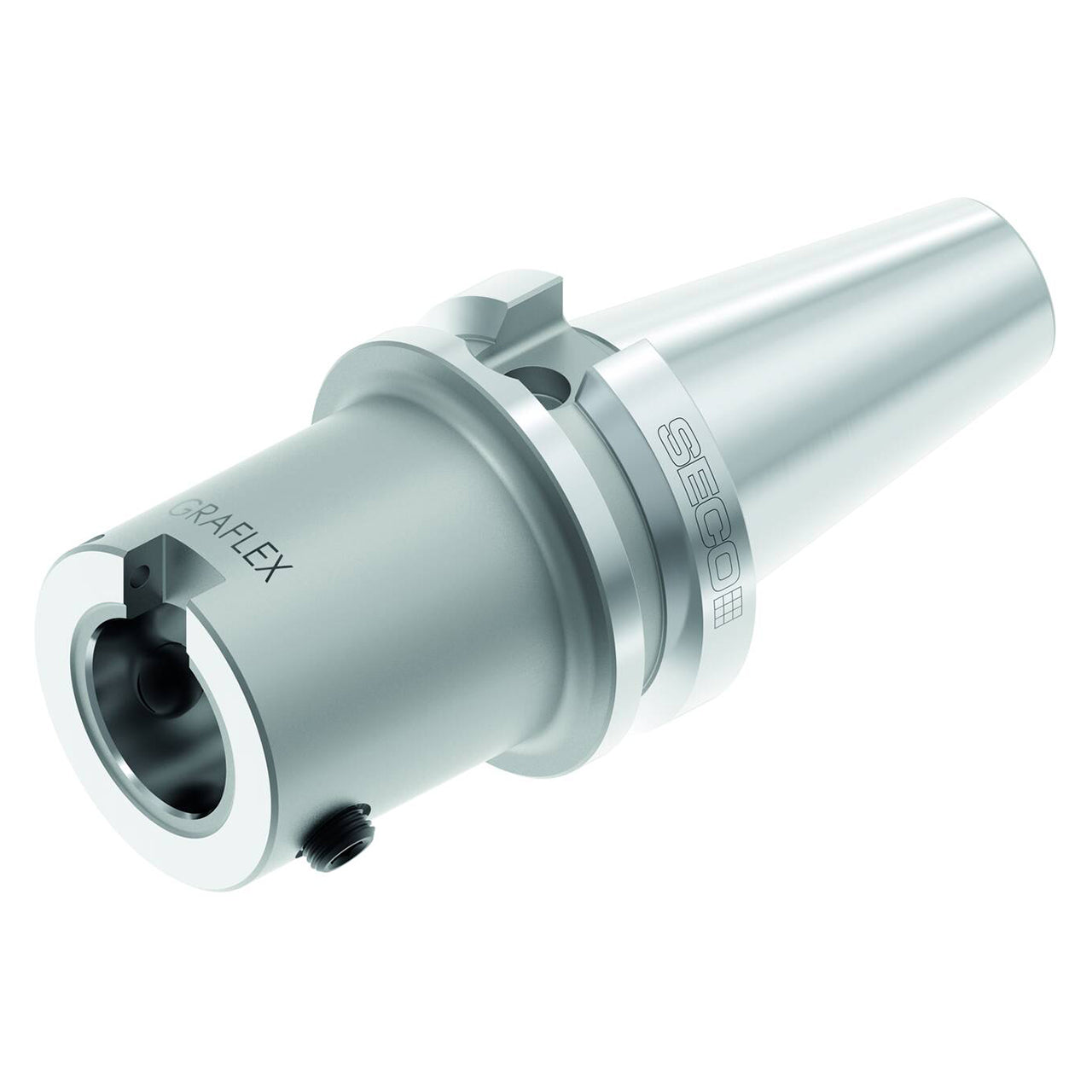

| Product Type | End Mill Adapter |
