Product Specifications
| Manufacturer Part Number | 02904856 |
| Body Diameter 1 (Decimal Inch) | 1.299" |
| Body Diameter 1 (mm) | 33.00mm |
| Body Diameter 2 (Decimal Inch) | 1.659" |
| Body Diameter 2 (mm) | 42.13mm |
| Body Diameter 3 (Decimal Inch) | 1.750" |
| Body Diameter 3 (mm) | 44.45mm |
| Connection Bore Diameter (Decimal Inch) | 0.625" |
| Connection Bore Diameter (mm) | 15.88mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Minimum Connection Bore Diameter (mm) | 15.88mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Maximum Connection Bore Diameter (mm) | 15.88mm |
| Thread Diameter Size | M12x1 |
| Body Length (Decimal Inch) | 2.248" |
| Body Length (mm) | 57.10mm |
| Body Length 1 (Decimal Inch) | 1.622" |
| Body Length 1 (mm) | 41.20mm |
| Functional Length (Decimal Inch) | 1.465" |
| Functional Length (mm) | 37.20mm |
| Minimum Functional Length (Decimal Inch) | 1.071" |
| Protruding Length (Decimal Inch) | 3.000" |
| Protruding Length (mm) | 76.20mm |
| Clamping Length (Decimal Inch) | 1.535" |
| Clamping Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 5.693" |
| Overall Length (mm) | 144.60mm |
| Connection Bore Depth (mm) | 50.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.669" |
| Radial Location (mm) | 17.00mm |

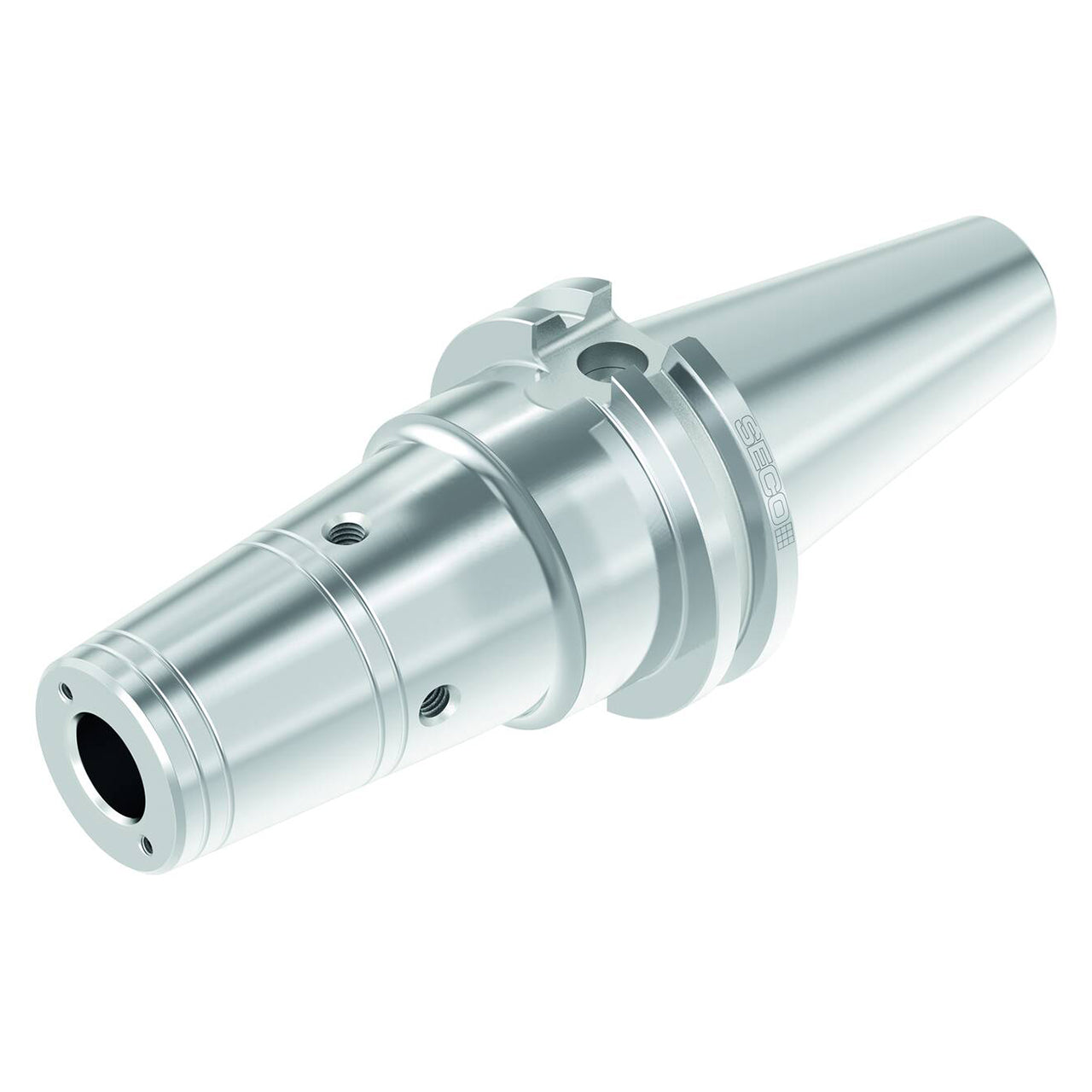

| Product Type | Shrink-Fit Tool Holder |
