Product Specifications
| Manufacturer Part Number | 02904855 |
| Body Diameter 1 (Decimal Inch) | 1.063" |
| Body Diameter 1 (mm) | 27.00mm |
| Body Diameter 2 (Decimal Inch) | 1.385" |
| Body Diameter 2 (mm) | 35.18mm |
| Body Diameter 3 (Decimal Inch) | 1.750" |
| Body Diameter 3 (mm) | 44.45mm |
| Connection Bore Diameter (Decimal Inch) | 0.500" |
| Connection Bore Diameter (mm) | 12.70mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Minimum Connection Bore Diameter (mm) | 12.70mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.500" |
| Maximum Connection Bore Diameter (mm) | 12.70mm |
| Thread Diameter Size | M10x1 |
| Body Length (Decimal Inch) | 2.122" |
| Body Length (mm) | 53.90mm |
| Body Length 1 (Decimal Inch) | 1.496" |
| Body Length 1 (mm) | 38.00mm |
| Functional Length (Decimal Inch) | 1.457" |
| Functional Length (mm) | 37.00mm |
| Minimum Functional Length (Decimal Inch) | 1.063" |
| Protruding Length (Decimal Inch) | 2.874" |
| Protruding Length (mm) | 73.00mm |
| Clamping Length (Decimal Inch) | 1.339" |
| Clamping Length (mm) | 34.00mm |
| Overall Length (Decimal Inch) | 5.567" |
| Overall Length (mm) | 141.40mm |
| Connection Bore Depth (mm) | 47.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.532" |
| Radial Location (mm) | 13.50mm |

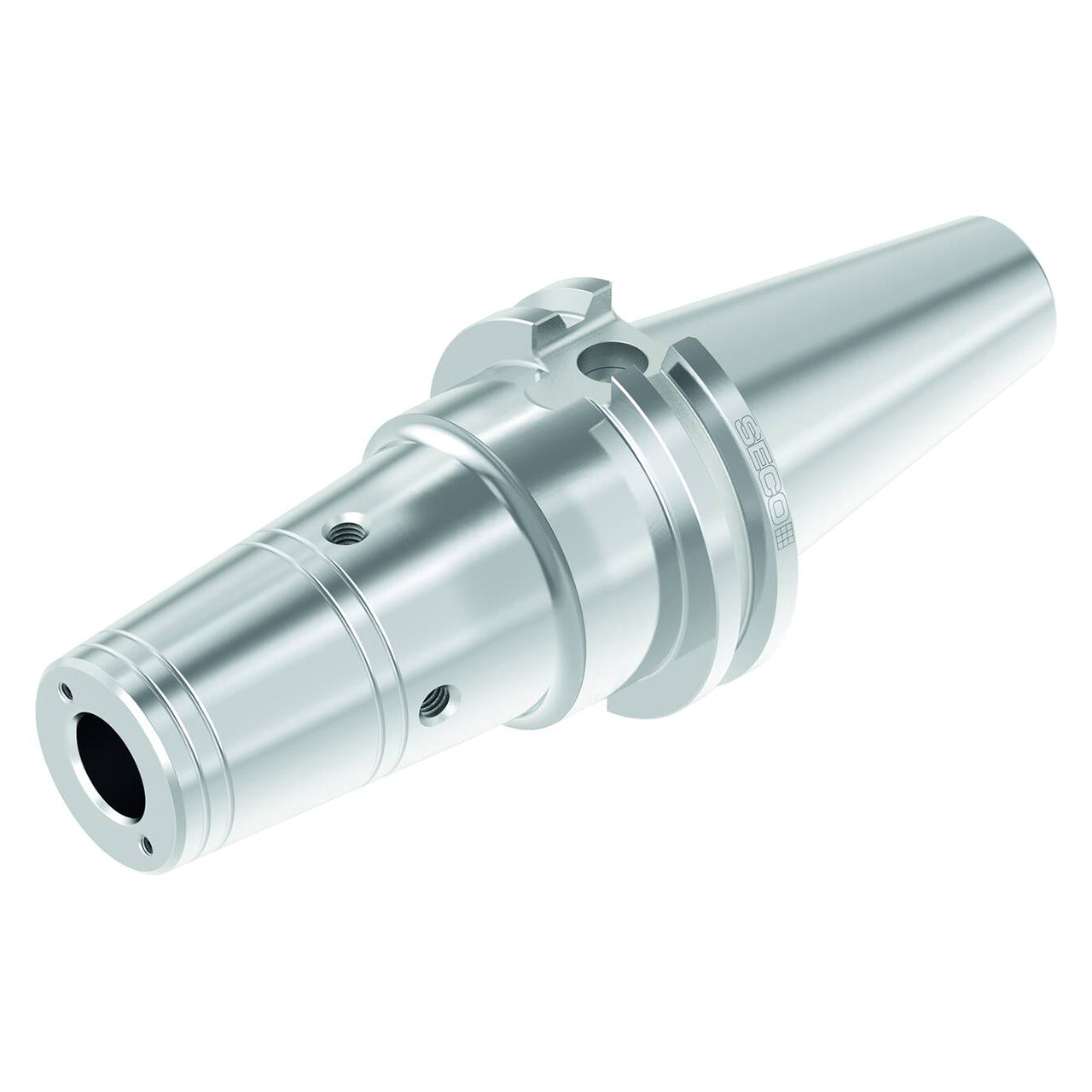

| Product Type | Shrink-Fit Tool Holder |
