Product Specifications
| Manufacturer Part Number | 02904846 |
| Body Diameter 1 (Decimal Inch) | 1.890" |
| Body Diameter 1 (mm) | 48.00mm |
| Body Diameter 2 (Decimal Inch) | 2.249" |
| Body Diameter 2 (mm) | 57.13mm |
| Body Diameter 3 (Decimal Inch) | 3.445" |
| Body Diameter 3 (mm) | 87.50mm |
| Connection Bore Diameter (Decimal Inch) | 1.250" |
| Connection Bore Diameter (mm) | 31.75mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Minimum Connection Bore Diameter (mm) | 31.75mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.250" |
| Maximum Connection Bore Diameter (mm) | 31.75mm |
| Thread Diameter Size | M16x1 |
| Body Length (Decimal Inch) | 3.358" |
| Body Length (mm) | 85.30mm |
| Body Length 1 (Decimal Inch) | 2.284" |
| Body Length 1 (mm) | 58.00mm |
| Functional Length (Decimal Inch) | 2.492" |
| Functional Length (mm) | 63.30mm |
| Minimum Functional Length (Decimal Inch) | 2.098" |
| Protruding Length (Decimal Inch) | 4.500" |
| Protruding Length (mm) | 114.30mm |
| Clamping Length (Decimal Inch) | 2.008" |
| Clamping Length (mm) | 51.00mm |
| Overall Length (Decimal Inch) | 6.469" |
| Overall Length (mm) | 164.30mm |
| Connection Bore Depth (mm) | 62.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Data Chip Provision | 1 |
| Radial Location (Decimal Inch) | 0.984" |
| Radial Location (mm) | 25.00mm |

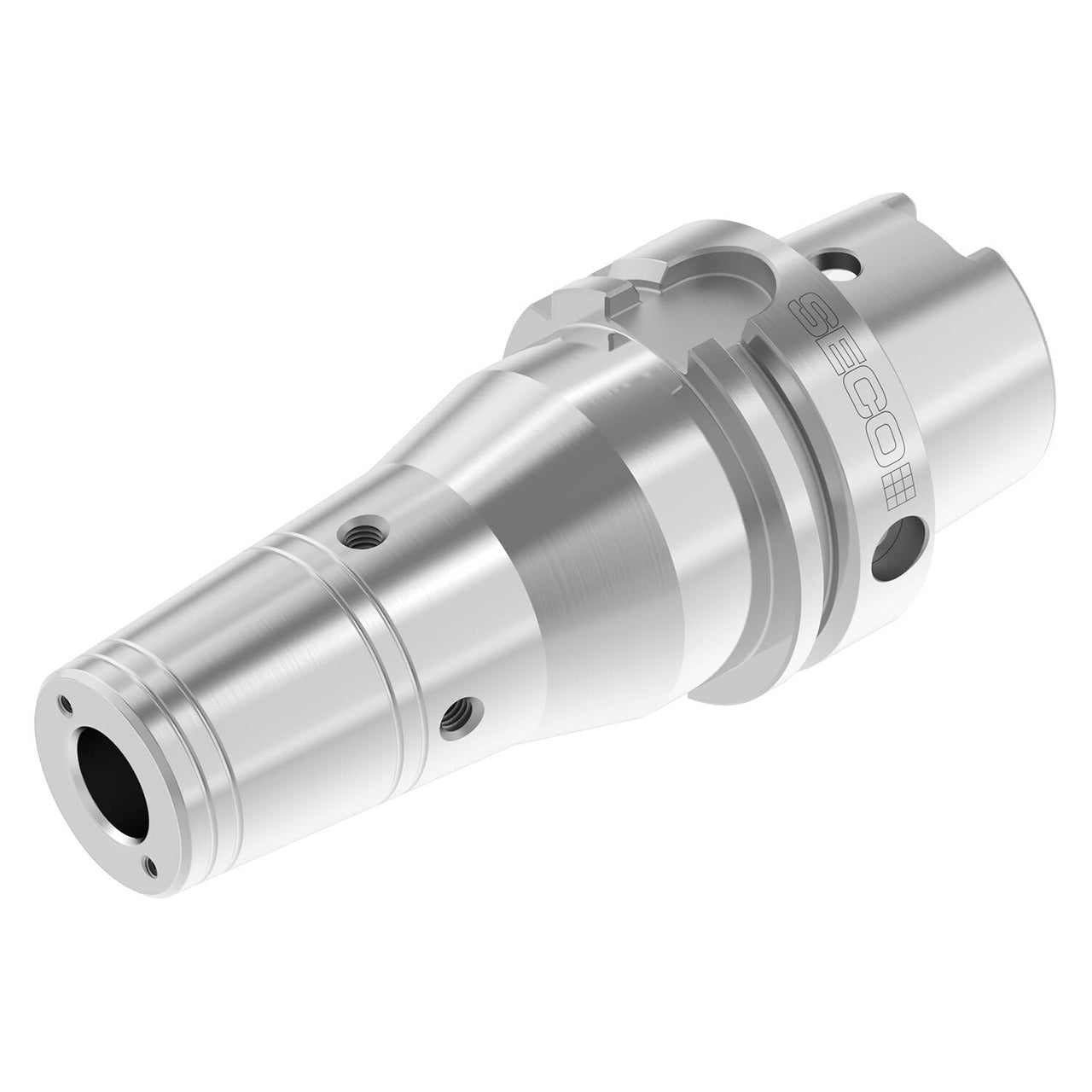

| Product Type | Shrink-Fit Tool Holder |
