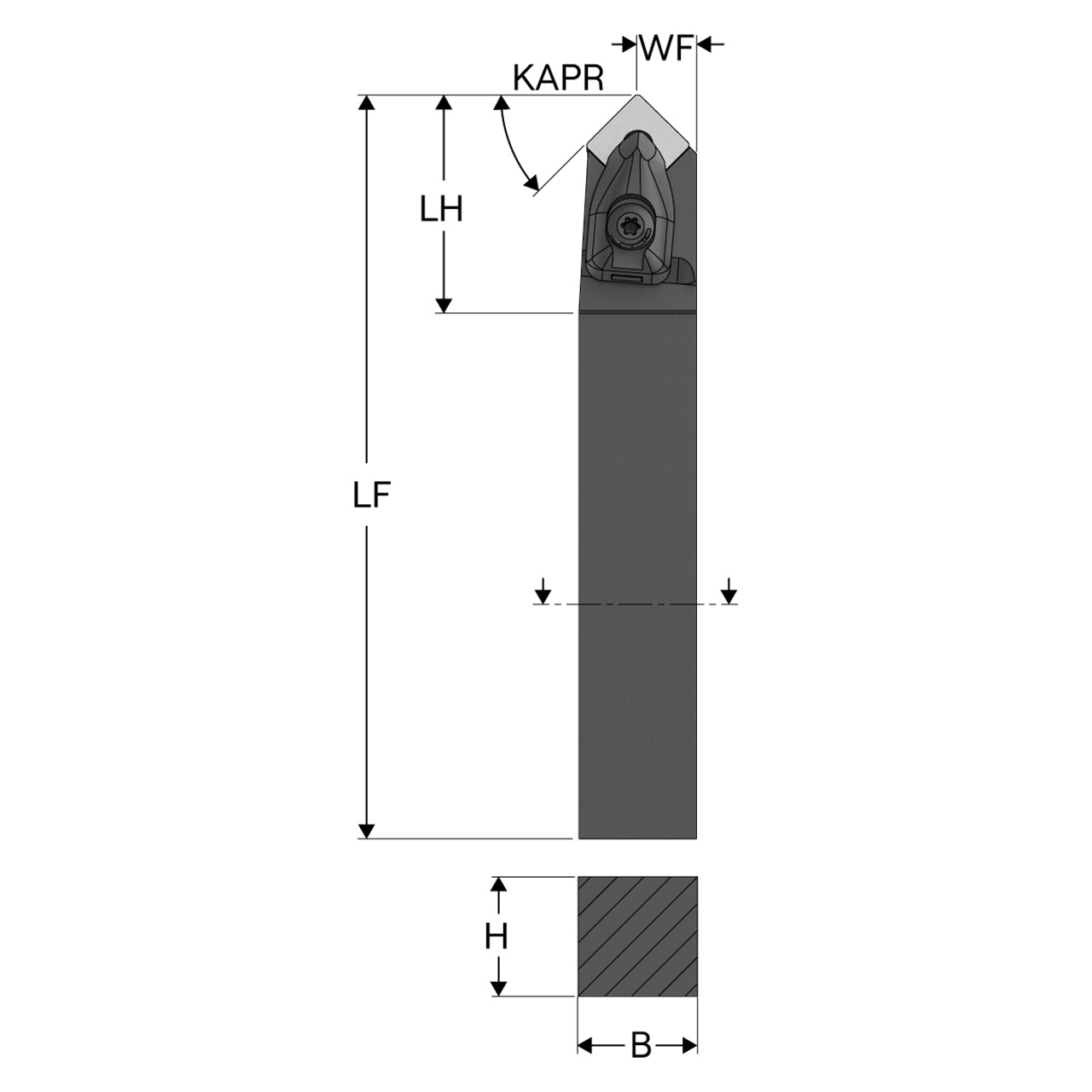

Product Specifications
| Manufacturer Part Number | 02904199 |
| Cutting Diameter Internal Minimum (Decimal Inch) | 11.811" |
| Cutting Diameter Internal Minimum 3 (Decimal Inch) | 11.811" |
| Cutting Direction | Neutral |
| Functional Height (Decimal Inch) | 1.000" |
| Tool Cutting Edge Angle Code | N |
| Inclination Angle (Degree) | -6.00 Degree |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length Secondary (Decimal Inch) | 5.674" |
| Head Length (Decimal Inch) | 1.575" |
| Shank Length (Decimal Inch) | 4.425" |
| Shank Type | Square shank |
| Insert seat size code | 1204 |
| Version (Internal/External/Both) | External |
| Functional Width (Decimal Inch) | 0.638" |
| Product Series | DSDNN |

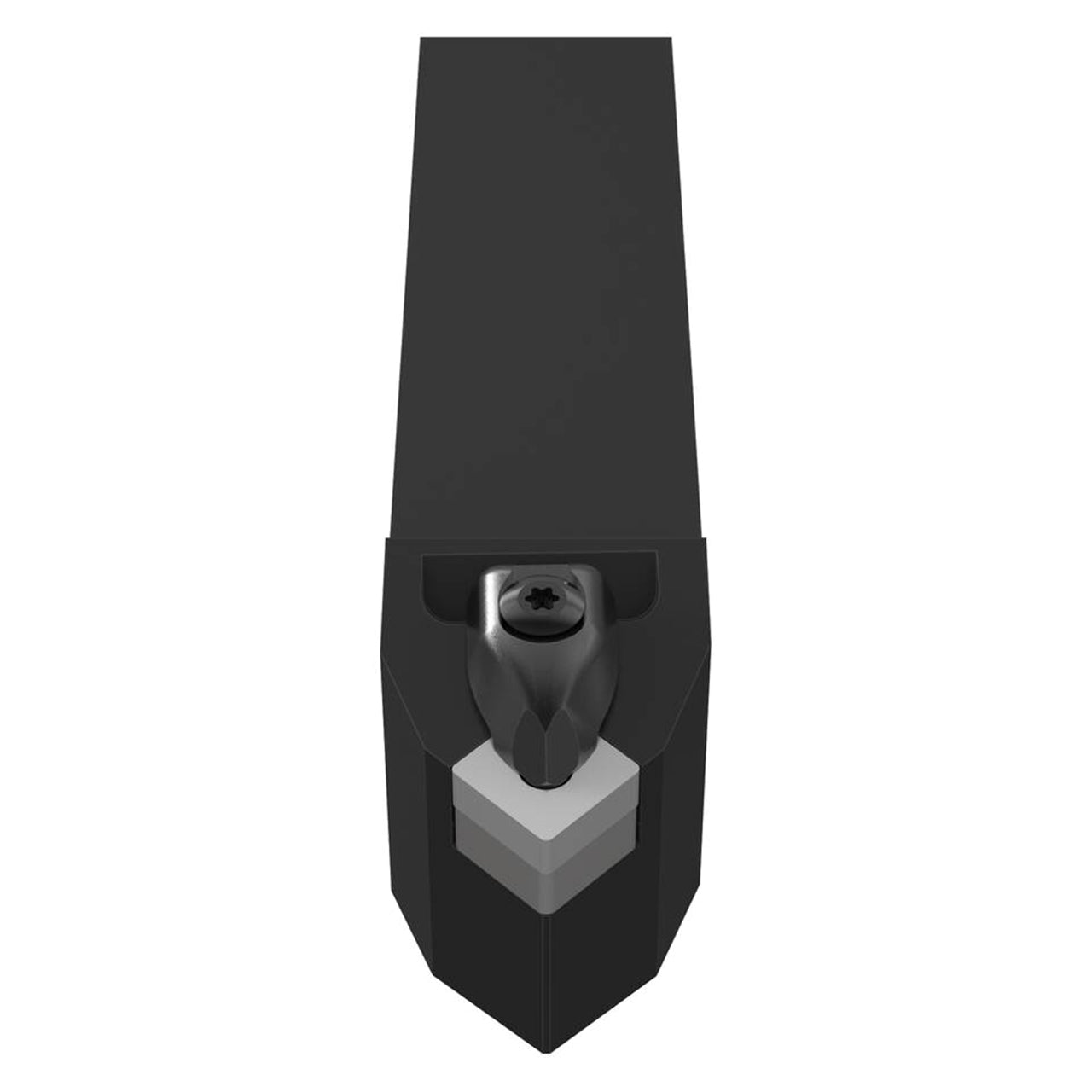

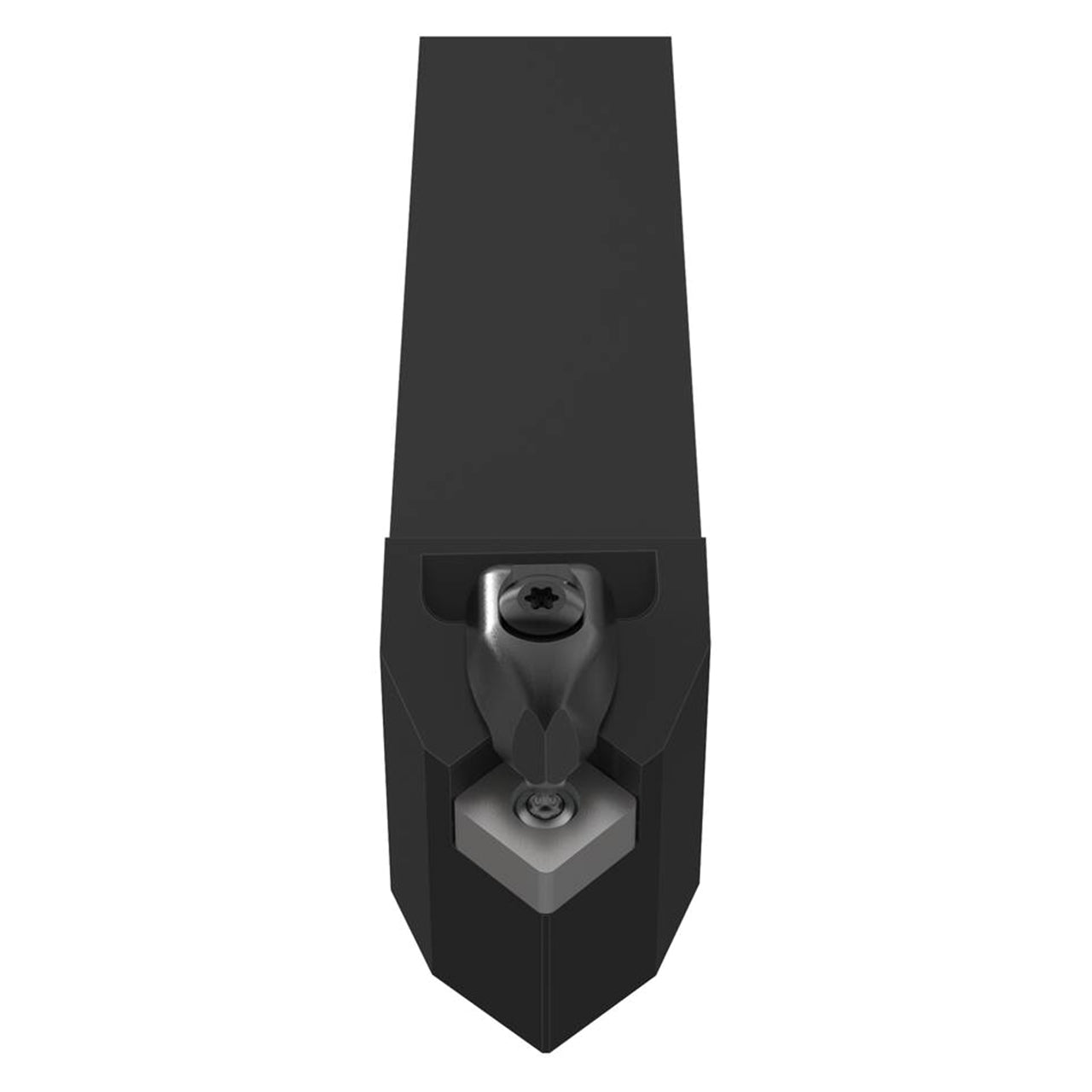

| Product Type | Indexable Turning Toolholder |
