Product Specifications
| Manufacturer Part Number | 02903111 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.457" |
| Maximum Helical Interpolation Hole Diameter (mm) | 37.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.083" |
| Minimum Helical Interpolation Hole Diameter (mm) | 27.50mm |
| Functional Length (Decimal Inch) | 2.374" |
| Functional Length (mm) | 60.30mm |
| Protruding Length (Decimal Inch) | 1.575" |
| Protruding Length (mm) | 40.00mm |
| Shank Length (Decimal Inch) | 2.201" |
| Shank Length (mm) | 55.90mm |
| Overall Length (Decimal Inch) | 3.390" |
| Overall Length (mm) | 86.10mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.354" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -9.2 Degree |
| Rake Radial Angle (Degree) | -9.2 Degree |
| Rake Orthogonal Angle (Degree) | -9.2 Degree |
| Axial Rake Angle (Degree) | 5.2 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 4.5 Degree |
| Maximum Rotational Speed (rpm) | 26300 rpm |
| Shank Type | Weldon |

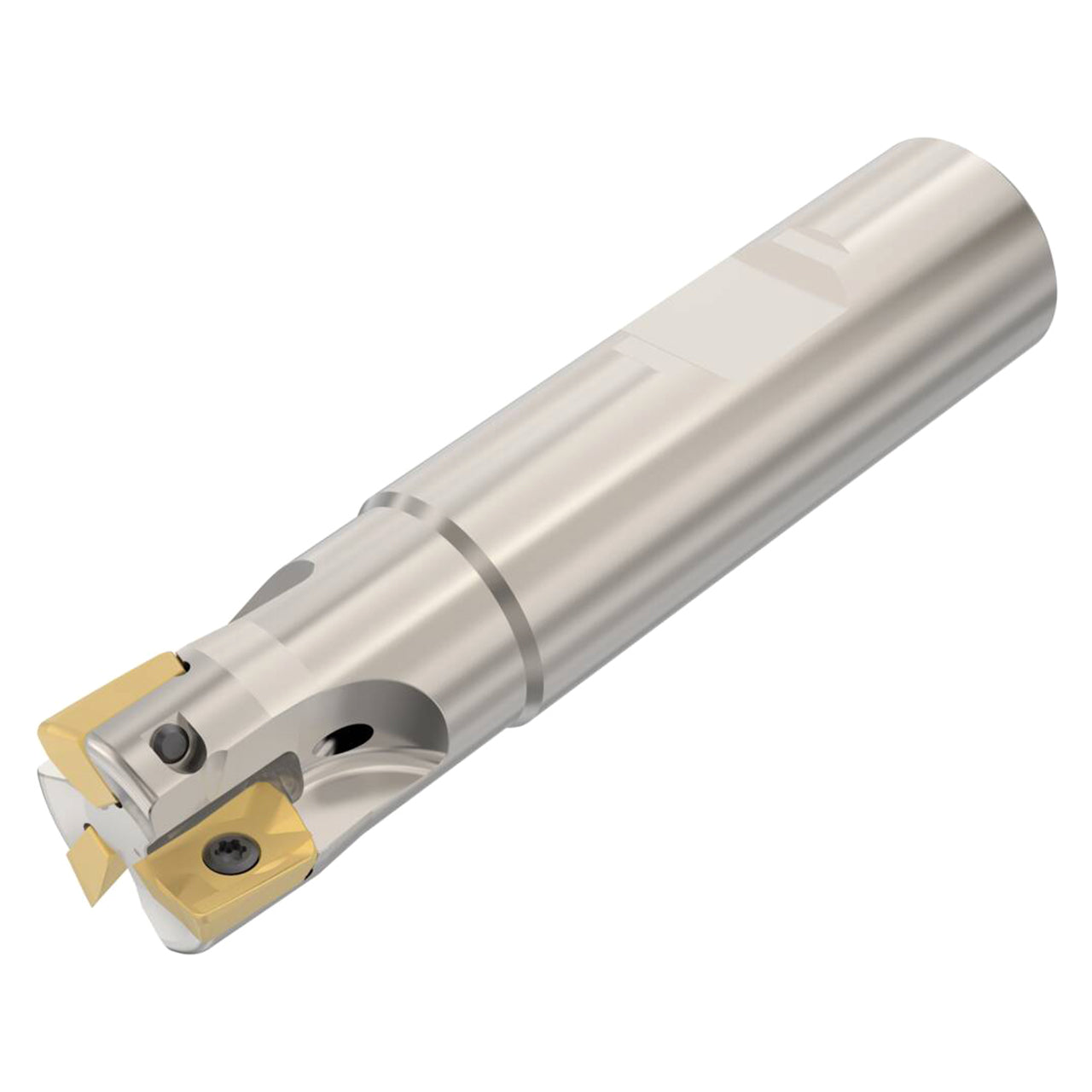

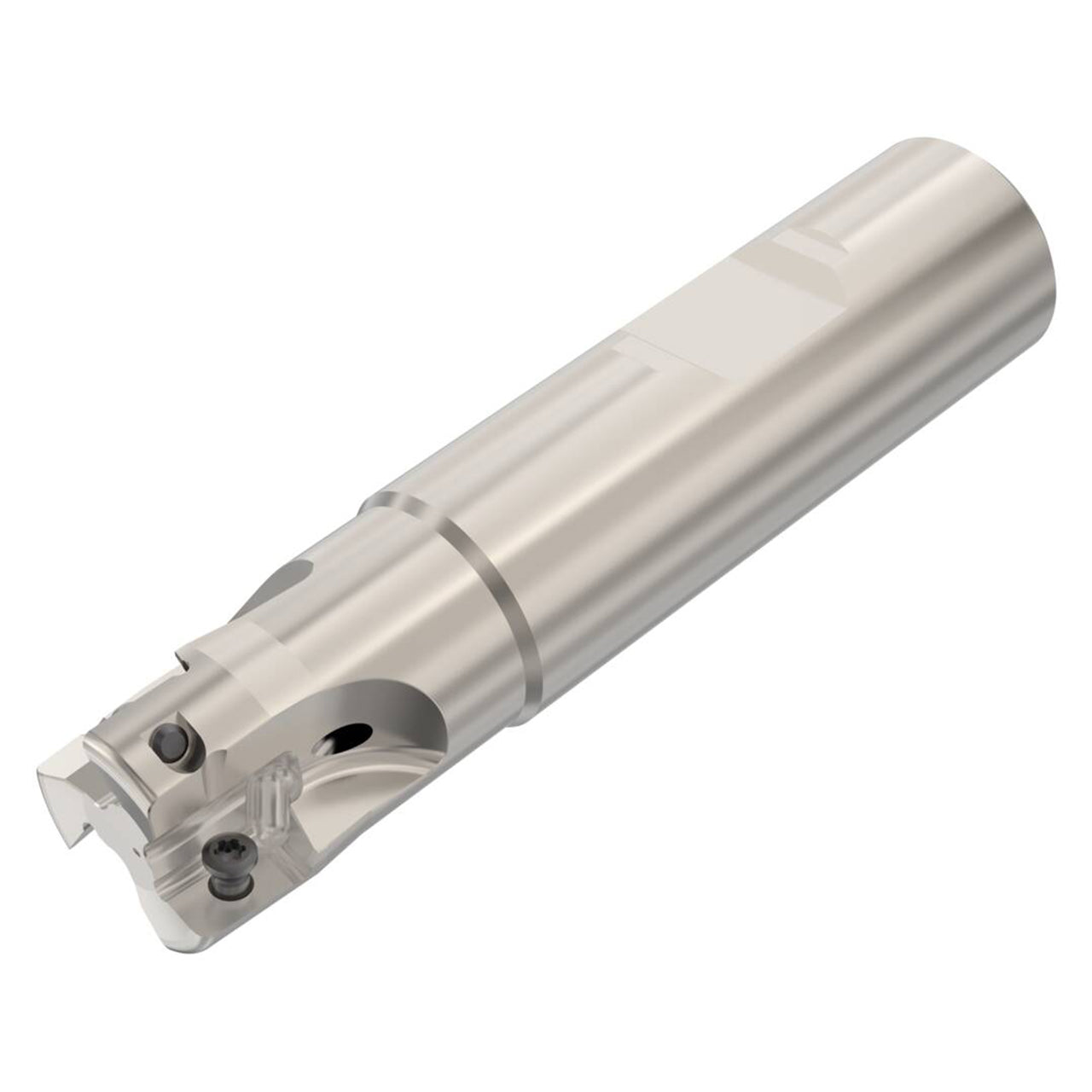

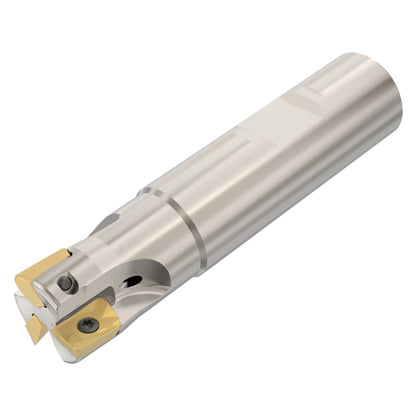

| Product Type | Indexable Square-Shoulder End Mill |
