Product Specifications
| Manufacturer Part Number | 02899072 |
| Cutting Diameter (Decimal Inch) | 0.406" |
| Cutting Diameter (mm) | 10.32mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.472" |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Chip Flute Length (Decimal Inch) | 2.165" |
| Chip Flute Length (mm) | 55.00mm |
| Functional Length Secondary (Decimal Inch) | 2.244" |
| Functional Length Secondary (mm) | 57.00mm |
| Shank Length (Decimal Inch) | 1.772" |
| Shank Length (mm) | 45.00mm |
| Usable Length (Decimal Inch) | 1.575" |
| Usable Length (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 4.016" |
| Overall Length (mm) | 102.00mm |
| Point Length (Decimal Inch) | 0.074" |
| Point Length (mm) | 1.88mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Shank Type | Cylindrical |
| Material | Carbide |

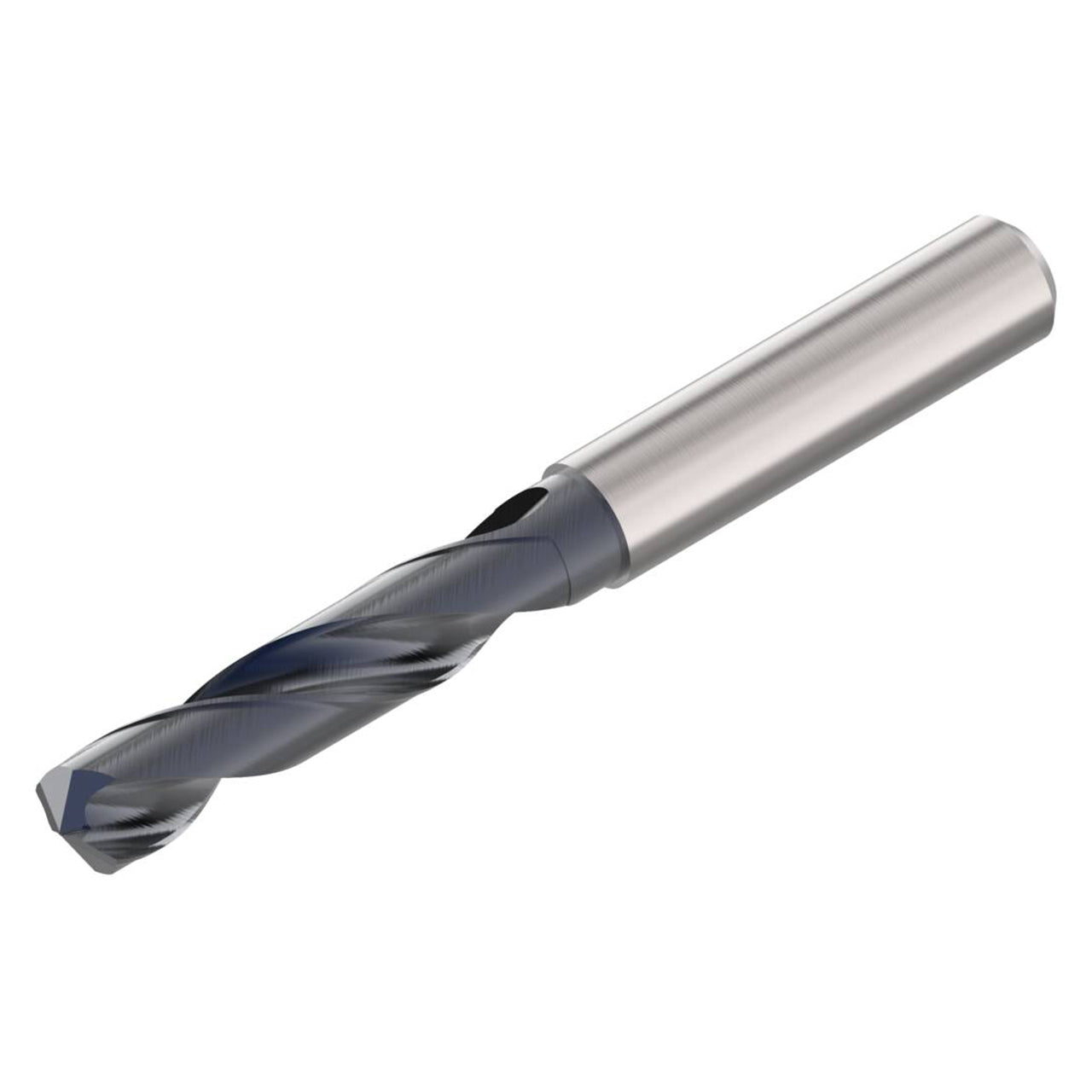

| Product Type | Screw Machine Length Drill Bit |
