Product Specifications
| Manufacturer Part Number | 02887525 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 2.858" |
| Functional Length (mm) | 72.60mm |
| Protruding Length (Decimal Inch) | 2.032" |
| Protruding Length (mm) | 51.60mm |
| Shank Length (Decimal Inch) | 2.795" |
| Shank Length (mm) | 71.00mm |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.315" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -24.5 Degree |
| Rake Radial Angle (Degree) | -24.5 Degree |
| Rake Orthogonal Angle (Degree) | -24.5 Degree |
| Axial Rake Angle (Degree) | -5.25 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 16500 rpm |
| Shank Type | Weldon |

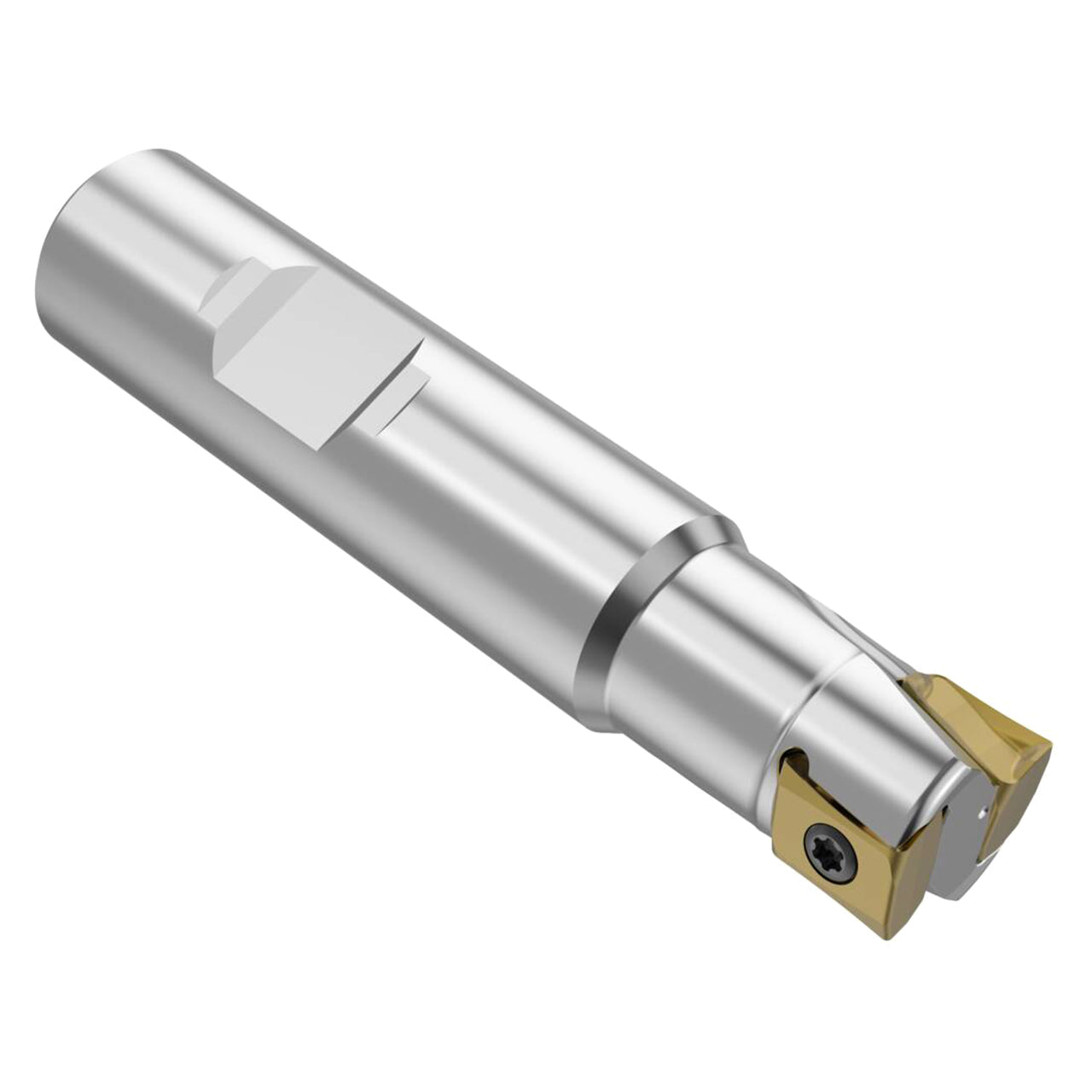

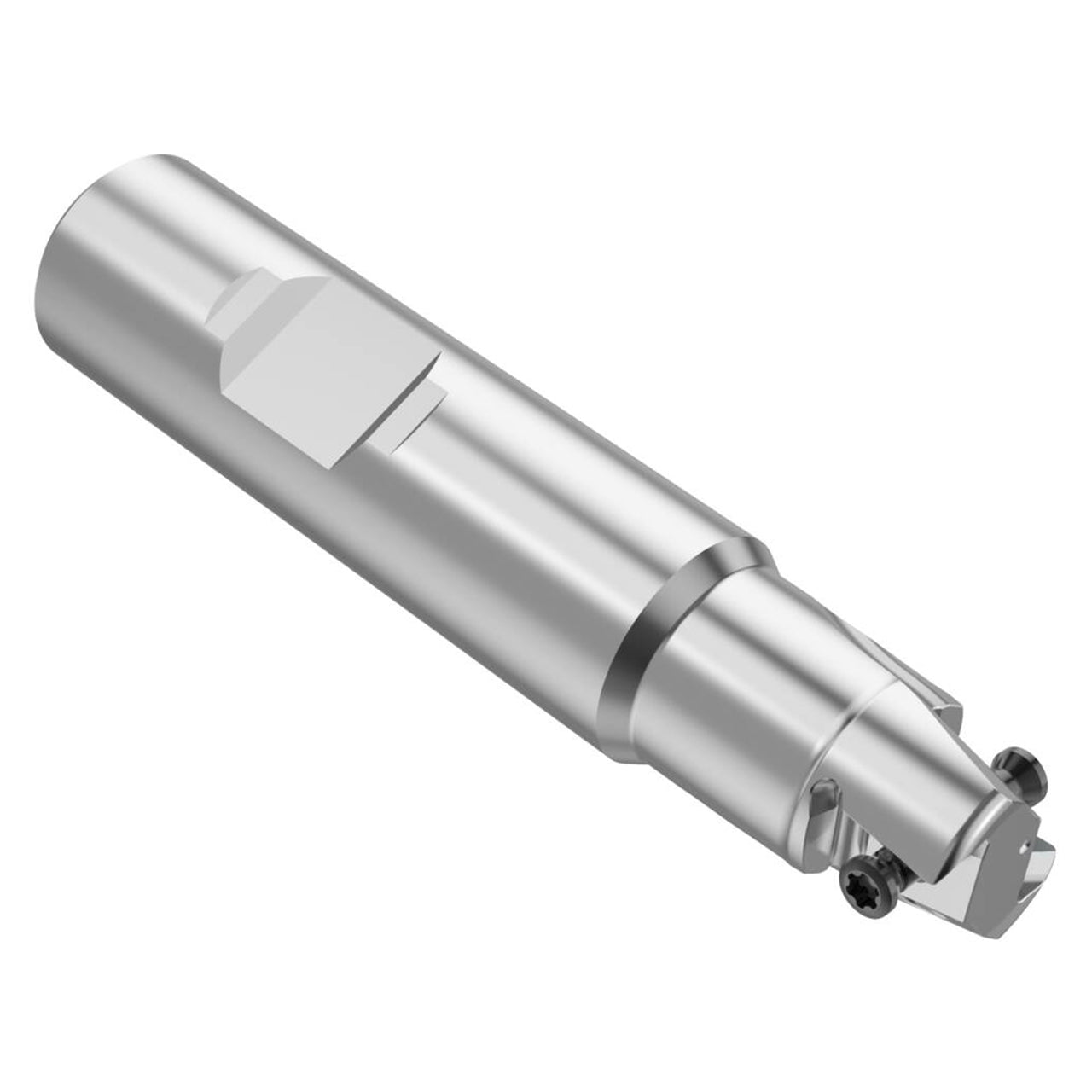

| Product Type | Indexable Square-Shoulder Face Mill |
