Product Specifications
| Manufacturer Part Number | 02883056 |
| Depth of Cut Maximum in Feed Direction Side (Decimal Inch) | 0.236" |
| Cutting Pitch Density | Normal |
| Cutting Diameter (Decimal Inch) | 9.843" |
| Connection Bore Diameter (Decimal Inch) | 2.500" |
| Connection Bore Diameter (Decimal Inch) | 2.500" |
| Contact Surface Diameter Machine Side (Decimal Inch) | 5.118" |
| Cutting Diameter Maximum (Decimal Inch) | 10.433" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 40.00 Degree |
| Functional Length (Decimal Inch) | 3.150" |
| Rotational Speed Maximum | 2500 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 16 |
| Product Series | R220.48 |

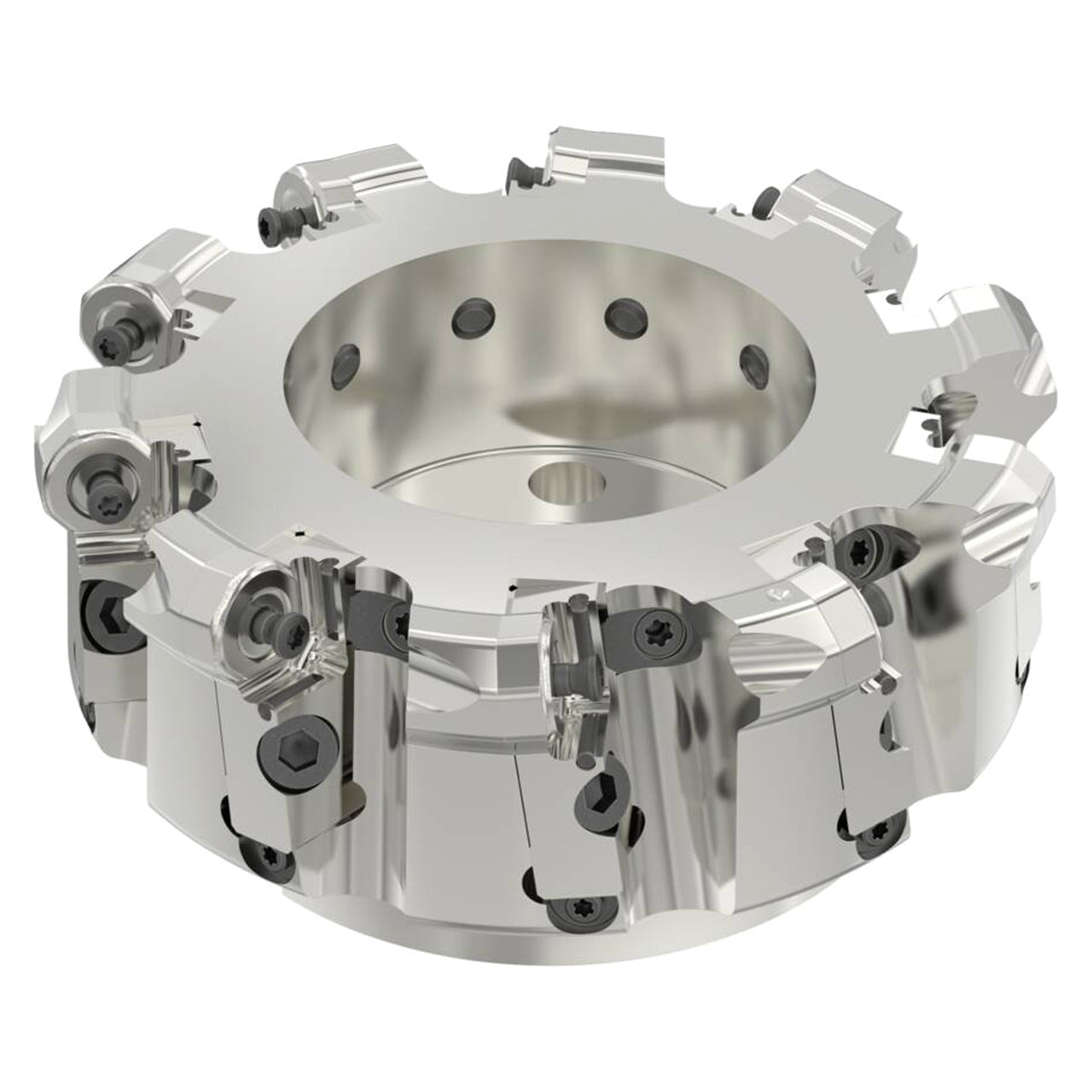

| Product Type | Indexable Chamfer & Angle Face Mill |
